PANTHER LRF PH50L - Thermal Imaging Rangefinding Riflescope - HikMicro

SKU:
TIHIK732
$4,999.00

Description

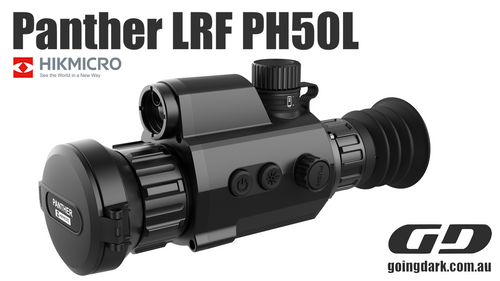

PANTHER LRF PH50L - Thermal Imaging Rangefinding Riflescope by HikMicro

Introducing the PANTHER range of Thermal imaging riflescopes from HikMicro!  This rail-mounted riflescope is equipped with an Integrated Infrared Laser Rangefinder for precise measuring of your target (up to 600m).  Designed with intuitive controls at your fingertips, this riflescope is a great choice to add to any night hunters outfit.  Built to withstand recoil on larger calibres firearms (.375H&H, 12-guage and 9.3x64).  The Panther range has (4x) models in it's lign up from the PH35L (384x288 thermal sensor, 35mm lens) right up to the PQ50L (640x512 thermal sensor, 50mm lens).

Proposed Uses (PH50L);

  • Suitable for: Rifle mounting (on full picatinny rail)
  • Thermal Detection Range = up to 2600mtrs
  • Thermal Identification Range for various sized targets;
    - Small (Rabbit) = tba
    - Sml-Med (Fox) = tba
    - Medium (Pig) = tba
    - Med-Lge (Deer) = tba

Key Features (PH50L);

  • 384x288 thermal sensor (12um, NETD <35mK)
  • 50mm objective lens (F1.0), 4.33x base magnification (5.28 x 3.96 FoV)
  • 1x 18650 removeable battery (2x included)
  • Integrated Laser Rangefinder (up to 600mtrs)
  • 16Gb onboard storage, media recording, WiFi connectivity (HikMicro SIGHT APP)



PANTHER LRF Product Specifications;

Model

PH35L

PH50L

PQ35L

PQ50L

Thermal Sensor
384 x 288
384 x 288
640 x 512
640 x 512
Objective lens
35 / F1.0
50 / F1.0
35 / F1.0
50 / F1.0
Magnification, x
3.03x (8x zoom)
4.33x (8x zoom) 1.82x (8x zoom) 2.6x (8x zoom)
Field of view (HxV), degrees / m @ 100mtrs
7.53 x 5.65
5.28 x 3.96
12.52 x 10.03
8.80 x 7.03
Detection range, m
1800
2600
1800
2600
  Sensor (Thermal)

Type
uncooled FPA
uncooled FPA
uncooled FPA
uncooled FPA
Resolution, pixels
384 x 288
384 x 288
640 x 512
640 x 512
Pixel Pitch
12 um
12 um
12 um
12 um
NETD
<35 mK
<35 mK
<35 mK
<35 mK
Frame rate, Hz
50
50
50
50
  Optics




Objective lens
35 / F1.0
50 / F1.0
35 / F1.0
50 / F1.0
Magnification, x
3.03x (8x zoom)
4.33x (8x zoom) 1.82x (8x zoom) 2.6x (8x zoom)
Field of view (HxV), degrees / m @ 100mtrs
7.53 x 5.65
5.28 x 3.96
12.52 x 10.03
8.80 x 7.03
  Display




Resolution, pixels
1024 x 768 OLED (0.39")
1024 x 768 OLED (0.39")
1024 x 768 OLED (0.39")
1024 x 768 OLED (0.39")
Thermal Palettes
Black Hot, White Hot, Red Hot, Fusion
Black Hot, White Hot, Red Hot, Fusion
Black Hot, White Hot, Red Hot, Fusion
Black Hot, White Hot, Red Hot, Fusion
  Range Performance




Detection range (person), m
1800
2600
1800
2600
  Laser Rangefinder




Safety class for laser equipment according to IEC 60825-1:2014
Class 1
Class 1
Class 1
Class 1
Wavelength, nm
905 nm
905 nm
905 nm
905 nm
Max. measuring range, m
600 m
600 m
600 m
600 m
Measurement accuracy, m
±1 m
±1 m
±1 m
±1 m
Min. Measuring Range, m
10 m
10 m
10 m
10 m
  Reticle




Picture in Picture
Yes
Yes
Yes
Yes
Number of preloaded reticles
Yes
Yes
Yes
Yes
Number of Zero Profiles available
Yes
Yes
Yes
Yes
  Bluetooth Connection
-
-
-
-
  Video Recorder
Video & Snapshot
(16Gb storage)
Video & Snapshot
(16Gb storage)
Video & Snapshot
(16Gb storage)
Video & Snapshot
(16Gb storage)
  Environmental Characteristics




Degree of protection, IP code (IEC60529)
IP67
IP67
IP67
IP67
  Power Supply




Output voltage, V
-
-
-
-
Battery type
18650 x1
18650 x1
18650 x1
18650 x1
Operating time on battery pack (at t=22°C), h *
6
6
4.5
4.5
External power supply, V
5V (USB Type-C)
5V (USB Type-C)
5V (USB Type-C)
5V (USB Type-C)
  Connections and Compatibilities




Max. recoil power on firearm
750 g/ms (.375H&H - 12g - 9.3x64)
750 g/ms (.375H&H - 12g - 9.3x64)
750 g/ms (.375H&H - 12g - 9.3x64)
750 g/ms (.375H&H - 12g - 9.3x64)
Mounting brackets on firearm
picatinny
picatinny
picatinny
picatinny
  Weight & Size




Dimensions, mm
200.38 x 66.32 x 87.10
214.10 x 74.30 x 88.71
200.38 x 66.32 x 87.10
214.10 x 74.30 x 88.71
Weight, kg
0.52
0.59
0.52
0.59
  Warranty
3 years
3 years
3 years
3 years
  Trade Data




SKU (Model #)
PH35L
PH50L
PQ35L
PQ50L











Extra Information

Brand:
HikMicro
