HIKMICRO Alpex 4K A50E Digital Night Vision Scope

SKU:
TIHIK403
$1,249.00

Description

HIKMICRO Alpex 4K A50E Digital Night Vision Scope

The HIKMICRO ALPEX 4K A50E Digital Day & Night Vision Scope excels in various ambient light conditions. Equipped with an advanced 3840 × 2160 UHD detector, a 50 mm lens, and a 1920 × 1080 0.49” sub-round OLED display, it delivers vivid colors during the day and classic black & white imagery during nighttime. Featuring a classic 30 mm tube design, this scope caters to the preferences of professional hunters who appreciate tradition while embracing technological advancements. Whether in the field or forest, this scope is well-suited for hunting enthusiasts.

Key Features

● 3840 × 2160 resolution CMOS detector
● 50 mm lens with F1.2 to 2.5 adjustable aperture
● 1920 × 1080 resolution 0.49-inch sub-round OLED display
● Supports Day/Night mode
● Supports recoil-activation recording with audio, built-in EMMC (64 GB)
● Up to 11 hours of continuous operation
● Replaceable and rechargeable battery

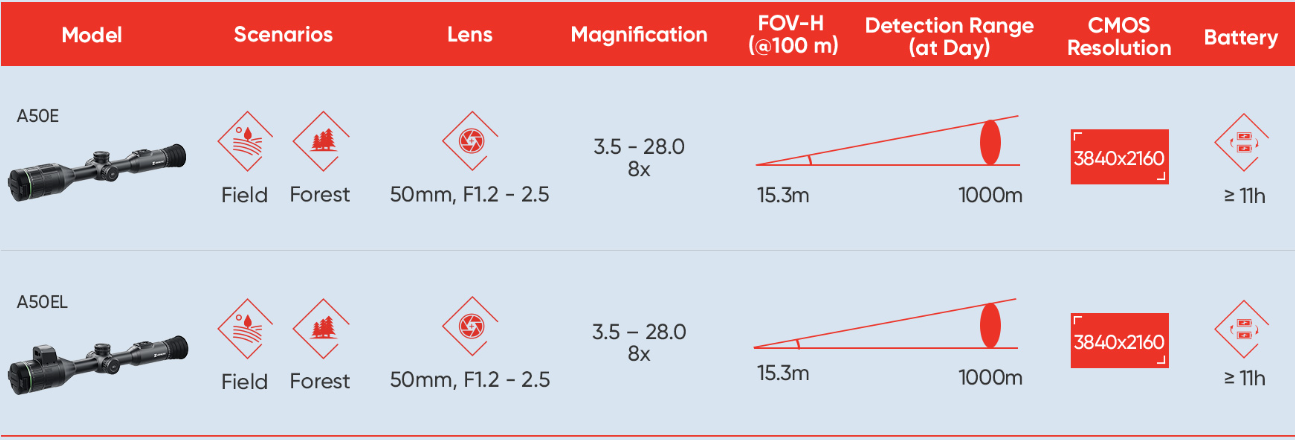

Range Specifications

Model
A50E
A50EL
Sensor


Objective Lens
50 mm, F1.2-2.5 Adjustable Aperture
50 mm, F1.2-2.5 Adjustable Aperture
Magnification, x
3.5×-28.0x (8x)
Support Continuous Zooming
3.5×-28.0x (8x)
Support Continuous Zooming
Field of view (HxV), degrees / m@100m
8.8° ×5.0°/15.3m × 8.6m @100m
8.8° ×5.0°/15.3m × 8.6m @100m
Detection range, m (thermal)
Day:1000m
Day: 1000m
  Sensor


Type


Resolution, pixels
3840 ×2160
3840 ×2160
Pixel pitch, µm


NETD, mK


Frame rate, Hz
50 Hz
50 Hz
  Optics


Objective lens
50 mm, F1.2-2.5 Adjustable Aperture
50 mm, F1.2-2.5 Adjustable Aperture
Magnification, x
3.5×-28.0x (8x)
Support Continuous Zooming
3.5×-28.0x (8x)
Support Continuous Zooming
Field of view (HxV), degrees / m @ 100 m
8.8° ×5.0°/15.3m × 8.6m @100m
8.8° ×5.0°/15.3m × 8.6m @100m
Eye relief, mm
55 mm
55 mm
  Display


Type
OLED
OLED
Resolution, pixels
1920 × 1080, 0.49 inch
1920 × 1080, 0.49 inch
  Range Performance


Detection range, m (thermal)
Day:1000m
Day: 1000m
  Laser Rangefinder


Safety Class for laser equipment according IEC 60825-1:2014

Class1
Wavelength, nm

905 nm
Max. measuring range, m

1000 m
Measurement Accuracy, m

±1m
Min. Measuring Range

10 m
Click value, H/V, mm at 100 m


Click range, H/V, mm at 100 m


Number of preloaded reticles


  Video Recorder


Video / photo resolution, pixel
1920 × 1080
1920 × 1080
Video / photo format


Built-in memory, Gb
Built-in EMMC (64 GB)
Built-in EMMC (64 GB)
  Wi-Fi


Wireless Protocol


Wireless Standard


Frequency, GHz


  Environmental Characteristics


Degree of protection, IP code (IEC60529)
IP67
IP67
Operating temperature range, °C
-30°C to 55°C (-22°F to 131°F)
-30°C to 55°C (-22°F to 131°F)
  Connections and Compatibilities


Max. recoil power on rifled weapon (Eo), Joules
1000g/0.4ms
1000g/0.4ms
Shock resistance on the smooth-bore rifles, caliber


Mounting brackets on weapon
Standard 30mm
Standard 30mm
Supported Appplication


  Power Supply


Output voltage, V


Battery type
Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable18650 Battery (External)
Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable18650 Battery (External)
Capacity, mAh


Operating time on battery pack (at t=22°C), h *
11 hours of Continuous Running (@25°C, Hotspot off)
11 hours of Continuous Running (@25°C, Hotspot off)
External power supply, V
5 V DC/2 A, USB Type-C Interface
5 V DC/2 A, USB Type-C Interface
  Weight & Size


Body Material
Dimensions mm
439.8 mm × 71.4 mm × 84.0 mm
439.8 mm × 89.2 mm × 84.0 mm
Weight
1080 g without External Battery
1176 g without External Battery
  Warranty


Warranty on Device, years


Warranty on Batteries, years


  Trade Data


SKU (Model #)
TIHIK403
TIHIK404



High-Tech 4K+ Detector Brings a Visual Revolution

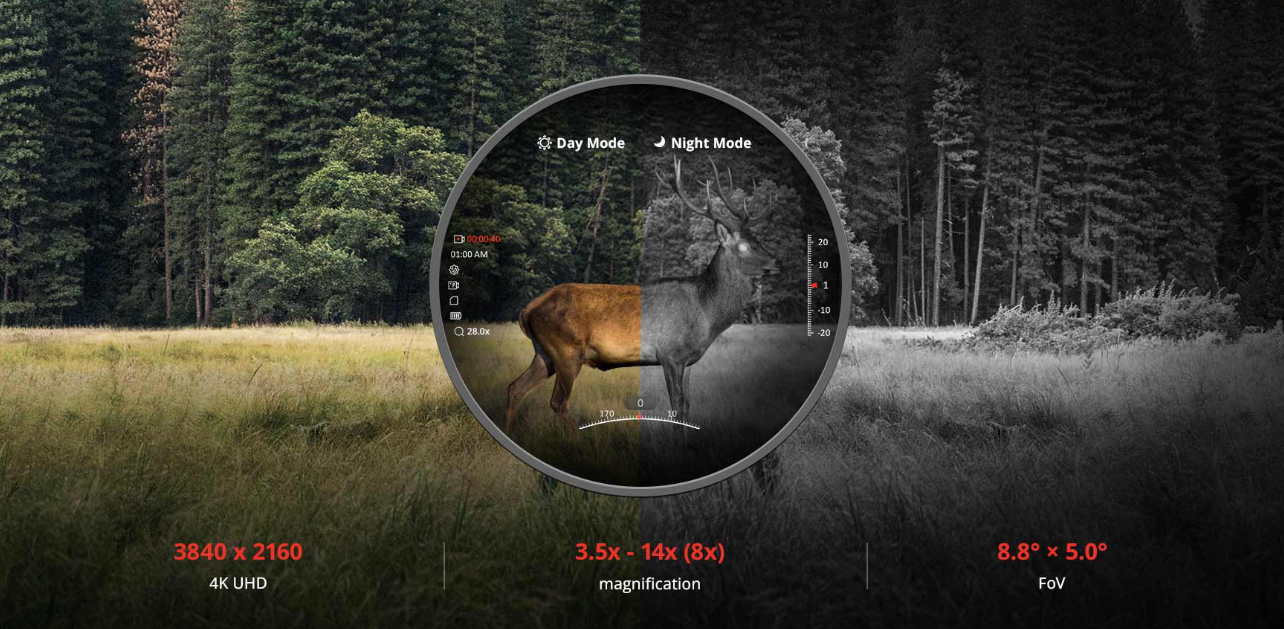

4K+ UHD for Vivid and Informative Images
The HIKMICRO ALPEX 4K, equipped with a 3840 x 2160 ultra-high-definition CMOS detector, gives you stunning and unprecedented image details 24 hours a day. With 3.5x basic magnification and 15.3m field of view at 100m, it shows outstanding target detection ability and identification capacity across the whole magnification range.

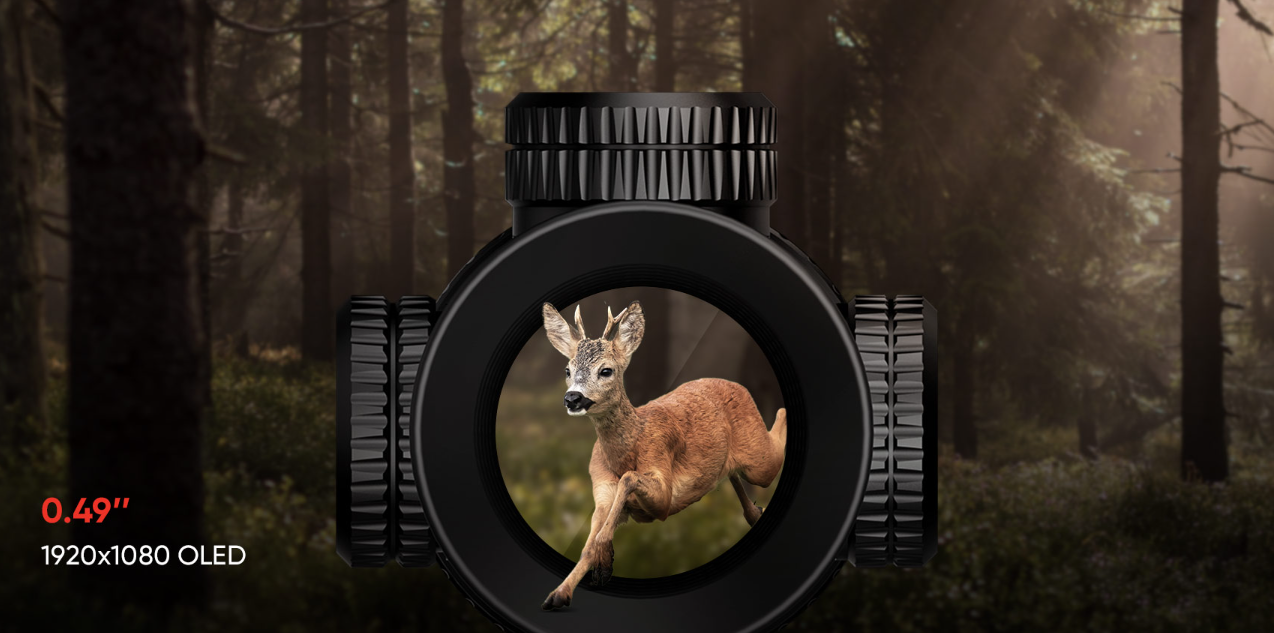

Comfortable Visual Experience Matters

HIKMICRO ALPEX 4K’s 1920x1080 sub-round 0.49’’ large OLED display unlocks new and eye-pleasing observing perspectives, delivering an immersive hunting experience.
F1.2-F2.5 Aperture Enhances Identification Capability

The F1.2-2.5 adjustable aperture of HIKMICRO ALPEX 4K improves target recognition in all light conditions. The introduction of the F2.5 large aperture can effectively avoid overexposure and enhance the depth of field, bringing a visual revolution even during daytime hunting.

Precise Shooting Has Never Been This Easy

Accurate Distance Measurement Aims for an Efficient Game (A50EL Only)

Accurately ranging quarry helps to ensure an ethical shot. The integrated laser rangefinder in the HIKMICRO ALPEX 4K digital day & night vision scope allows the user to range-find up to 1,000m with an accuracy of ±1 meter.

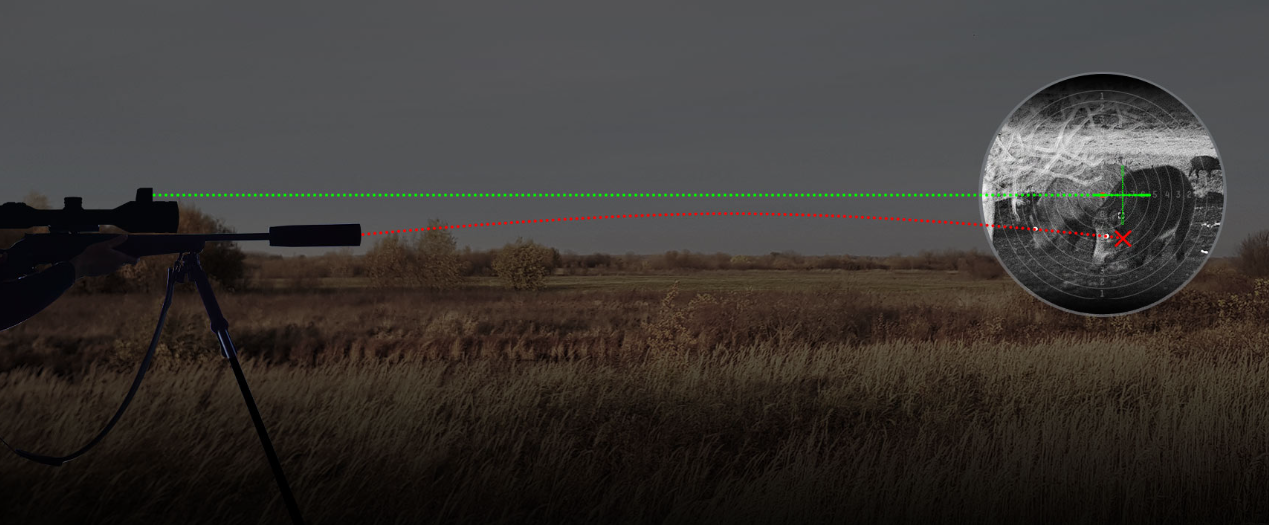

Internal Ballistic Calculation for Long-Range Hunting (A50EL Only)

The ALPEX 4K is HIKMICRO's first digital & night vision scope with ballistic calculation, ensuring accurate shooting at any distance. Simply enter the required data for your ammunition, scope, and environment to turn your ALPEX 4K into a highly accurate long-range tool. The internal ballistics algorithm calculates the suggested aiming point based on the exact distance measured by the built-in laser ranging finder to ensure precise long-range shooting.

Multiple Reticle Profiles

There are 5 reticle groups with 8 colors and 10 reticle types to choose from in the HIKMICRO ALPEX 4K. A total of 5 reticle profiles can be configured and saved for greater convenience.

Purpose-Built Features for Ease-of-Use

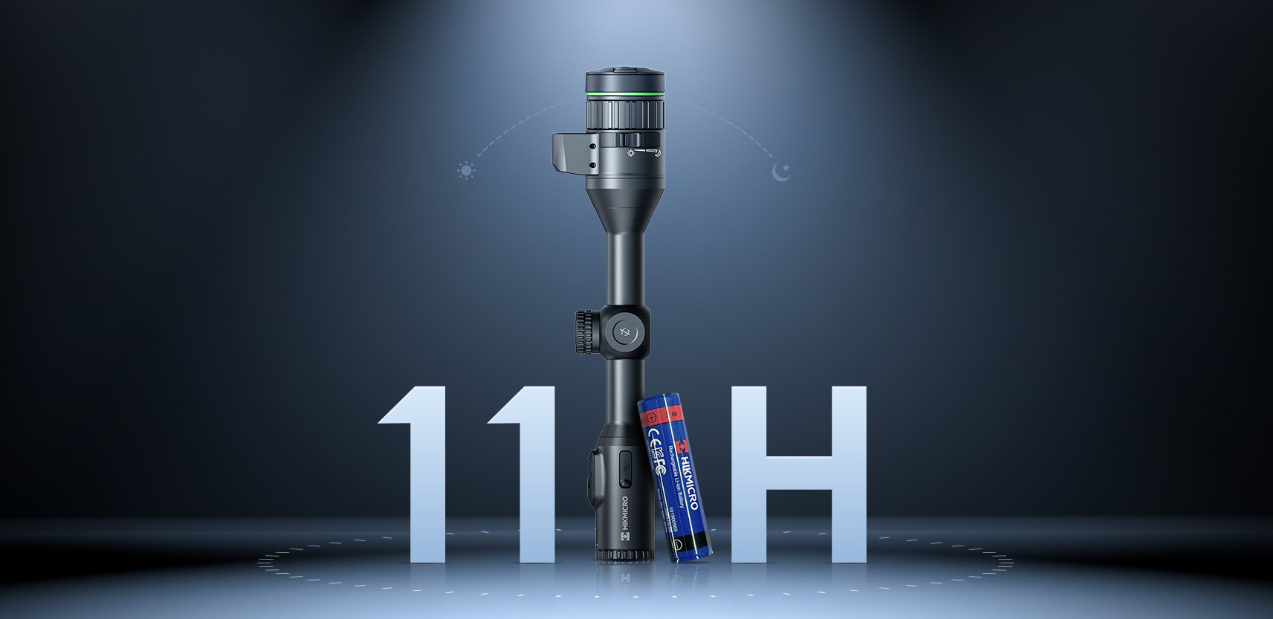

Long-life battery, Hunt Non-Stop

HIKMICRO ensures users never have to worry about running out of power. The HIKMICRO ALPEX 4K has an upgraded power supply system. With an external replaceable and rechargeable battery, users can enjoy their hunt without fear of running out of battery.

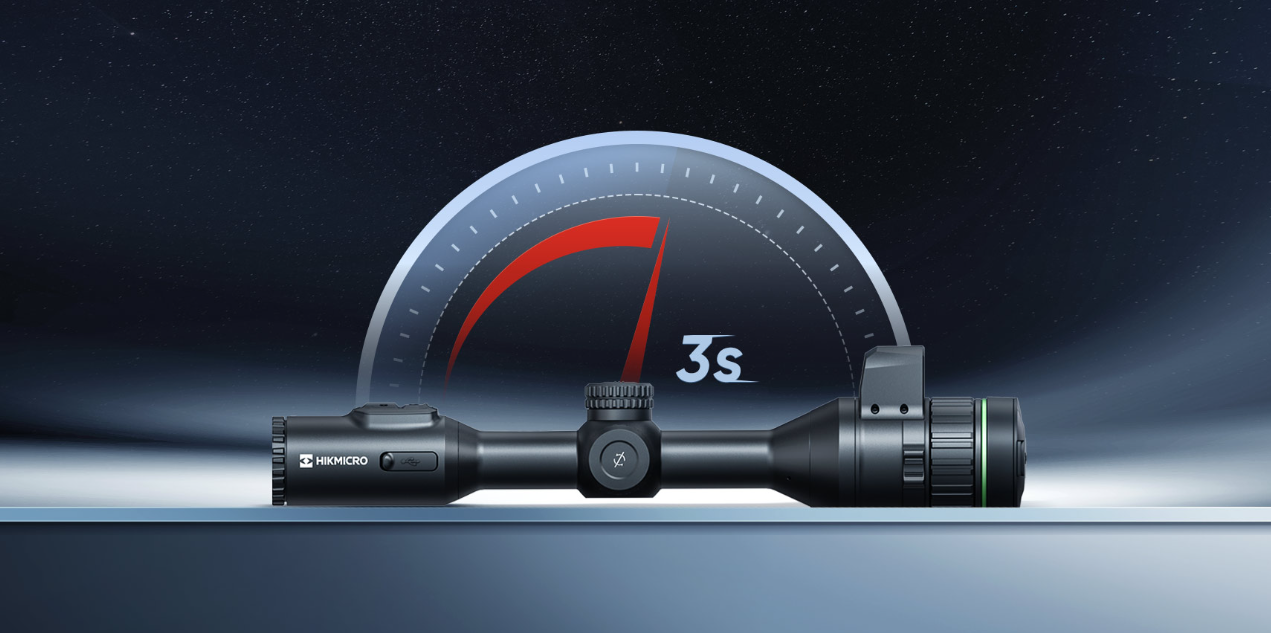

Fast Boot-On to Capture the Moments

Fast boot within 3s makes HIKMICRO ALPEX 4K always ready for use.

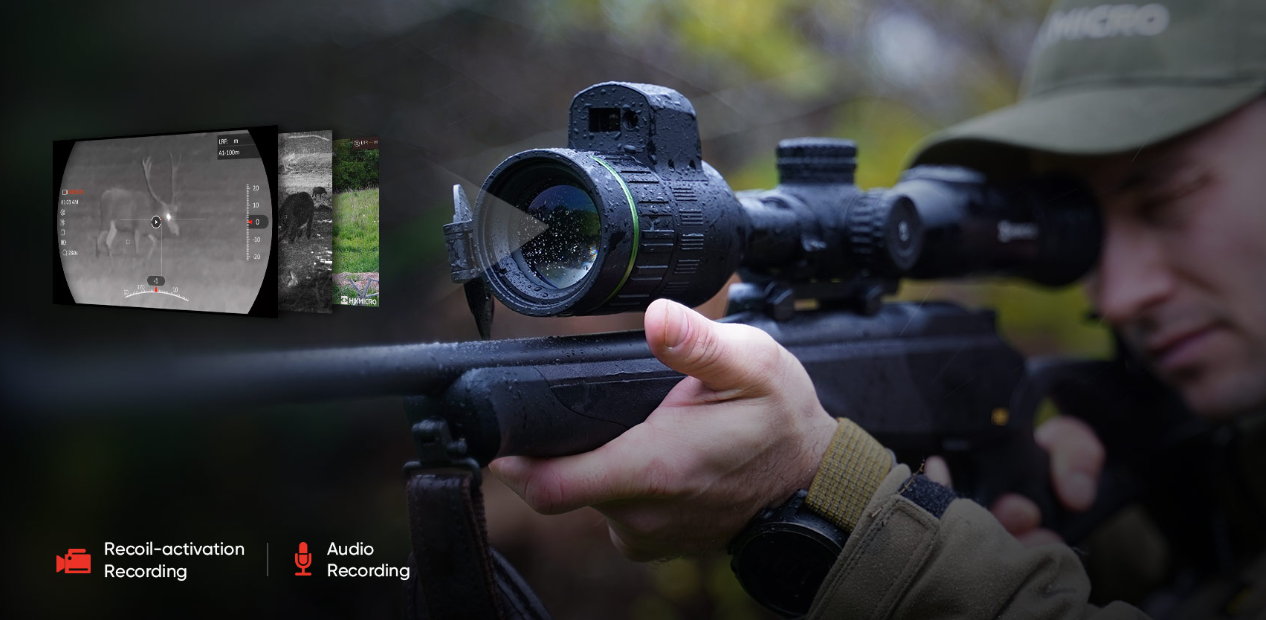

Highlights capturing, saved in local album

The recoil-activation functions can record a video before you shoot and after you shoot, to better help you clarify whether you get your game. The videos are saved in the local album for quick and undisturbed checking.

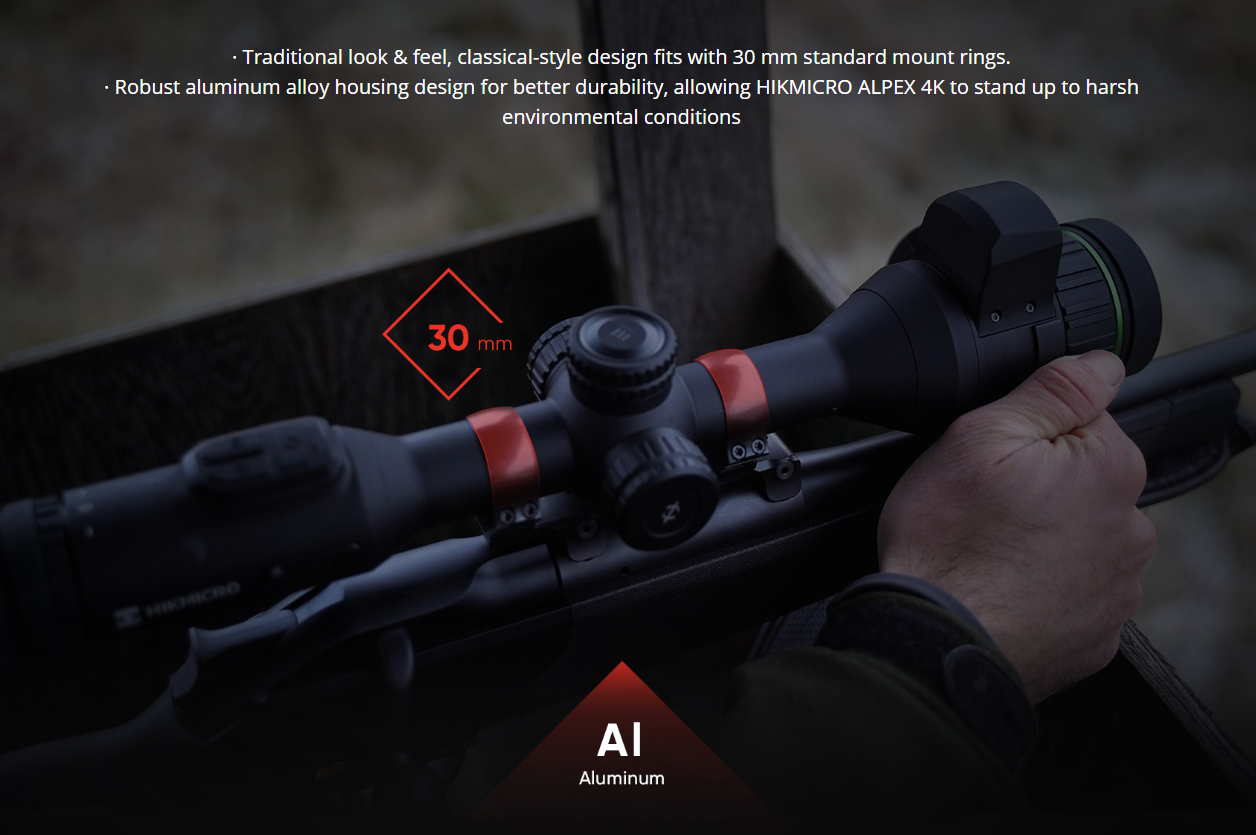

Classic Style with Premium Reliability


More Advantages
