HIKMICRO Condor CQ35L Thermal Rangefinding Monocular

SKU:
TIHIK564
$4,299.00

Free Express Shipping

Description

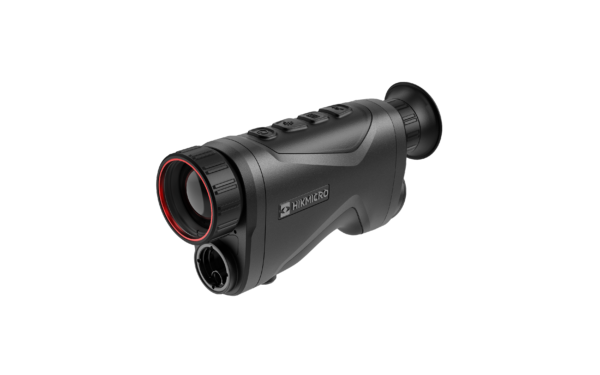

HIKMICRO Condor CQ35L Thermal Monocular

The HIKMICRO CONDOR CQ35L thermal monocular is equipped with a 640 × 512 @12 um infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions. It can be applied mainly in forest hunting, birding, animal searching, adventuring, and recusing scenario.

Key Features

● High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
● 640 × 512 resolution with 12 μm detector
● 1024 × 768 resolution 0.39-inch OLED display
● Advanced image processing technology
● Image Pro for enhancing detail recognition
● Zoom Pro for digital zooming without loss of picture quality
● Replaceable and rechargeable Li-ion battery
● Up to 4 hours of continuous operation
● 400 g lightweight, with a compact and ergonomic design



Range Specifications

  Main CH25L CH35L CQ35L CQ50L
Sensor Resolution
384 × 288 384 × 288 640 × 512 640 × 512
Objective lens
25 mm, f1.0 35 mm, f1.0 35 mm, f1.0 50 mm, f1.0
Magnification, x
2.5× to 20.0× (8×)
3.5× to 28.0× (8×)
2.0× to 16.0× (8×) 3.0× to 24.0× (8×)
Field of view (HxV), degrees / m@100m
10.5° × 7.9°/18.3 m × 13.8 m @ 100 m
7.5° × 5.6°/13.1 m × 9.7 m @ 100 m
12.5° × 10.0°/21.9 m × 17.5 m @ 100 m 8.7° × 7.0°/15.2 m × 12.2 m@100 m
Detection range, m (thermal)
1200 m
1800 m
1800 m 2600 m
  Sensor

Type
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays VOx Uncooled Focal Plane Arrays
Resolution, pixels
384 × 288 384 × 288 640 × 512 640 × 512
Pixel pitch, µm
12 μm
12 μm
12 μm 12 μm
NETD, mK
Less than 20 mK (@25°C), F# = 1.0
Less than 20 mK (@25°C), F# = 1.0
Less than 20 mK (@25°C), F# = 1.0 Less than 20 mK (@25°C), F# = 1.0
Frame rate, Hz
50Hz
50Hz
50Hz        50Hz
  Optics



Objective lens
25 mm, f1.0
35 mm, f1.0
35 mm, f1.0 50 mm, f1.0
Magnification, x
2.5× to 20.0× (8×)
1.8x - 7.2x
2.0× to 16.0× (8×) 3.0× to 24.0× (8×)
Field of view (HxV), degrees / m @ 100 m
10.5° × 7.9°/18.3 m × 13.8 m @ 100 m
7.5° × 5.6°/13.1 m × 9.7 m @ 100 m
12.5° × 10.0°/21.9 m × 17.5 m @ 100 m 8.7° × 7.0°/15.2 m × 12.2 m@100 m
Eye relief, mm
15 mm
15 mm
15 mm 15 mm
  Display



Type
OLED OLED OLED OLED
Resolution, pixels
1024×768, 0.39 inch 1024×768, 0.39 inch 1024×768, 0.39 inch 1024×768, 0.39 inch
  Range Performance



Detection range, m (thermal)
1200 m
1800 m
1800 m 2600 m
  Laser Rangefinder



Safety Class for laser equipment according IEC 60825-1:2014
Class 1
Class 1
Class 1
Class 1
Wavelength, nm
905 nm
905 nm
905 nm
905 nm
Max. measuring range, m
1000 m
1000 m
1000 m
1000 m
Measurement Accuracy, m
± 1 m
± 1 m
± 1 m
± 1 m
  Reticle




Click value, H/V, mm at 100 m
-
-
-
-
Click range, H/V, mm at 100 m
        -
-
        -           -
Number of preloaded reticles
        -
-
        -           -
  Video Recorder
Yes Yes Yes Yes
Video / photo resolution, pixel
- - - -
Video / photo format
-
-
        - -
Built-in memory, Gb
64Gb
64Gb
64Gb
64Gb
  Wi-Fi
Yes Yes Yes Yes
Wireless Protocol
-
-
- -
Wireless Standard
-
-
- -
Frequency, GHz
-
-
- -
  Environmental Characteristics



Degree of protection, IP code (IEC60529)
IP67  IP67 IP67  IP67
Operating temperature range, °C
-30°C to +55°C
-30°C to +55°C
-30°C to +55°C -30°C to +55°C
  Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules
-
-
        - -
Shock resistance on the smooth-bore rifles, caliber
-         - - -
Mounting brackets on weapon
-
-
- -
Supported Appplication
Hikmicro Sight App
Hikmicro Sight App
Hikmicro Sight App Hikmicro Sight App
  Power Supply



Output voltage, V
        -
-
        -           -
Battery type
Replaceable and Rechargeable Li-ion Battery
Replaceable and rechargeable Li-ion battery
Replaceable and Rechargeable Li-ion Battery Replaceable and Rechargeable Li-ion Battery
Capacity, mAh
-
-
- -
Operating time on battery pack (at t=22°C), h *
4.5-hour continuous running with CVBS and hotspot function off (@25°C)
4.5-hour continuous running with CVBS and hotspot function off (@25°C)
4-hour continuous running with CVBS and hotspot function off (@25°C) 4-hour continuous running with CVBS and hotspot function off (@25°C)
External power supply, V
5 VDC, 2 A
Supports External Power Supply
5 VDC, 2 A
Supports External Power Supply
5 VDC, 2 A
Supports External Power Supply
5 VDC, 2 A
Supports External Power Supply
  Weight & Size



Body Material -
-
    - -
Dimensions mm
180.7 mm × 52.7 mm × 85.4 mm (7.11" × 2.07" × 3.36")
184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46")
184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46") 197.1 mm × 60 mm × 94.9 mm (7.76" × 2.36" × 3.74")
Weight kg
386 g without battery
400 g without battery
400 g without battery 450 g without battery
  Warranty



Warranty on Device, years
3 years 3 years 3 years 3 years
Warranty on Batteries, years
1 year
1 year
1 year
1 year
  Trade Data




SKU (Model #)
TIHIK560 TIHIK562 TIHIK564 TIHIK566



CQ35L

The CQ35L presents a highly attractive option for forest hunters due to its remarkable 22-meter field of view and a modest 2.0x basic magnification. Furthermore, its generous 35mm lens is tailor-made for field hunters, offering exceptional depth of detail. It truly serves as the ideal all-purpose solution for both types of hunters.

Its fundamental 3.5x magnification, 384-detector array, and a 35mm focal length combine to provide an expansive 13-meter field of view. This adaptable instrument excels at capturing intricate images in vast, open environments.

Vivid, Informative, and Layered Images

Ultra clear image, impressive detail recognition

Powerful high sensitivity (NETD<20mK) thermal detector of HIKMICRO CONDOR thermal imaging monocular helps small details of objects and backgrounds to be identified easily and clearly in different weather and light conditions.

Purpose-built image algorithm brings stunning image quality

HIKMICRO's self-developed image algorithms give HIKMICRO CONDOR thermal monocular highly optimized images and remarkable details. These algorithms are developed based on extensive analysis of diverse hunting scene images and thermal imaging features.

  • HIKMICRO Image Pro ensures the maximum digital image optimization and provides high-quality rendering of both target objects and background, especially in the original magnification.
  • HIKMICRO Zoom Pro can help present ultra-clear images with a higher signal-to-noise ratio and impressive details, especially when using digital zoom.

Accurate Distance Measurement

Distance from the game is essential to ensure a safe shot. The integrated laser rangefinder in HIKMICRO CONDOR thermal monocular allows the user to measure a distance up to 1,000m with an accuracy of ±1 meter in various scenarios, enjoying the most precise measurement of the situation.

Perfect Ergonomics, Premium Reliability

Ergonomic grasping shape design for better operation experience

HIKMICRO CONDOR's compact and easy-grasp shape design perfectly fits human hands' purlicue. It adopts soft and skin-friendly material to guarantee better operation for both left- and right- hand users.

Robust magnesium alloy housing design for long-time use

Magnesium alloy design retains HIKMICRO CONDOR thermal monocular a robust structure with light weight and improves stability to meet long-lasting use under any harsh environmental condition.

Magnetic lens cover, easily take and collect

Loss-proof magnetic lens cover realizes easy and silent installation and collection, ensuring better protection of the HIKMICRO CONDOR SDLC lens.

Purpose-Built Features Come For Ease-To-Use

Fast boot on function and replaceable batteries bring more lasting use

Fast boot on within 3s makes HIKMICRO CONDOR always ready for use

HIKMICRO ensures users never have to worry about running out of power. The HIKMICRO CONDOR thermal monocular comes with three replaceable and rechargeable 18,650 batteries, providing an impressive 13.5 hours of continuous operation. With this extended battery life, users can enjoy their never-ending game without any power anxiety, capturing all the exciting moments without interruption.

Auto screen off darkens the screen to save energy and increase battery time

The integrated algorithm automatically detects HIKMICRO CONDOR‘s exact position and activates the auto screen-off function when there is no need to use it. HIKMICRO CONDOR will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.

Personalized settings available to the suitable visual experience

HIKMICRO CONDOR thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize their visual experience to the highest level of comfort by adjusting settings such as contrast, sharpness, and other personalized options.

More advantages







Extra Information

Brand:
HikMicro
