Description
HikMicro Habrok 4k HE25L 850mn Multi-Spectrum Binocular
The HABROK 4K is a powerful and innovative digital and thermal binocular designed for both daytime and twilight use. With 4K UHD digital resolution, a 60mm lens, and 4x digital zoom, it delivers unparalleled clarity and detail. Featuring an additional LRF and IR emitter, this all-in-one device is perfect for forest or field scenarios. The HABROK 4K also boasts a compact, award-winning design, having won both the iF and Red Dot Awards in 2024.
Key Features
- 256 × 192 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 35 mK (@25°C, F# = 1.0)
- 25 mm, F1.0 lens with thermal detection range up to 1200 m
- 3840 × 2160 4K ultra high-resolution CMOS detector
- 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
- 1920 × 1080 resolution 0.49-inch OLED display
- Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
- 795 g lightweight, with a compact and ergonomic design

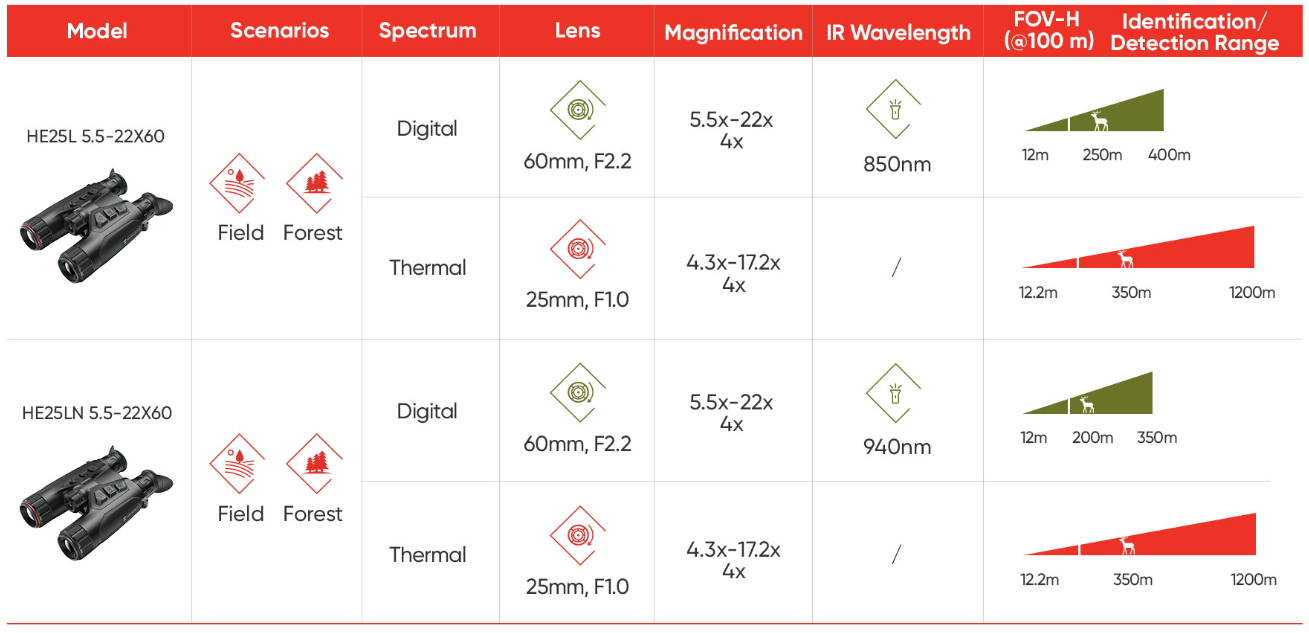

Range Specifications
|
Model
|
HE25L | HE25LN |
|
Sensor
|
VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Objective Lens | 25mm, F1.0 | 25mm, F1.0 |
|
Magnification, x
|
4.3x-17.2x (4x) | 4.3x-17.2x (4x) |
|
Field of view (HxV), degrees / m@100m
|
7.0° × 5.3° / 12.2m x 9.3m | 7.0° × 5.3° / 12.2m x 9.3m |
|
Detection range, m
|
1200m | 1200m |
|
Sensor
|
||
|
Type
|
VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
|
Resolution, pixels
|
256 x 192 | 256 x 192 |
|
Pixel pitch, µm
|
12μm | 12μm |
|
NETD, mK
|
Less than 35 mK (@25°C),F#=1.0 | Less than 35 mK (@25°C),F#=1.0 |
|
Frame rate, Hz
|
50Hz | 50Hz |
|
Optics
|
||
|
Objective lens
|
25mm, F1.0 | 25mm, F1.0 |
|
Magnification, x
|
4.3x-17.2x (4x) | 4.3x-17.2x (4x) |
|
Field of view (HxV), degrees / m @ 100 m
|
7.0° × 5.3° / 12.2m x 9.3m | 7.0° × 5.3° / 12.2m x 9.3m |
|
Eye relief, mm
|
15mm | 15mm |
|
Display
|
||
|
Type
|
0.49 inch, OLED, | 0.49 inch, OLED, |
|
Resolution, pixels
|
1920 ×1080 | 1920 ×1080 |
|
Range Performance
|
||
|
Detection range, m
|
1200m | 1200m |
| Laser Rangefinder | ||
|
Safety Class for laser equipment according IEC 60825-1:2014
|
Class 1 | Class 1 |
|
Wavelength, nm
|
905nm | 905nm |
|
Max. measuring range, m
|
1000m | 1000m |
|
Measurement Accuracy, m
|
±1m | ±1m |
|
Min. Measuring Range
|
10m | 10m |
|
Reticle
|
||
|
Click value, H/V, mm at 100 m
|
||
|
Click range, H/V, mm at 100 m
|
||
|
Number of preloaded reticles
|
||
|
Video Recorder
|
||
|
Video / photo resolution, pixel
|
||
|
Video / photo format
|
||
|
Built-in memory, Gb
|
Built-in EMMC (64 GB) | Built-in EMMC (64 GB) |
|
Wi-Fi
|
||
|
Wireless Protocol
|
||
|
Wireless Standard
|
||
|
Frequency, GHz
|
||
|
Environmental Characteristics
|
||
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 |
|
Operating temperature range, °C
|
-30℃ ~ +55℃ | -30℃ ~ +55℃ |
|
Connections and Compatibilities
|
||
|
Max. recoil power on rifled weapon (Eo), Joules
|
||
|
Shock resistance on the smooth-bore rifles, caliber
|
||
|
Mounting brackets on weapon
|
1/4“-20-UNC | |
|
Supported Appplication
|
||
|
Power Supply
|
||
|
Output voltage, V
|
||
|
Battery type
|
Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
|
Capacity, mAh
|
||
|
Operating time on battery pack (at t=22°C), h *
|
≥8h (25 °C, with hotspot off) | ≥8h (25 °C, with hotspot off) |
|
External power supply, V
|
5V DC, 2 A Supports External Power Supply |
5V DC, 2 A Supports External Power Supply |
|
Weight & Size
|
||
| Body Material | ||
|
Lens Material
|
||
|
Dimensions, mm
|
138mm × 68.2 mm × 223 mm (5.4" × 2.7" × 8.6") | 138mm × 68.2 mm × 223 mm (5.4" × 2.7" × 8.6") |
| Weight, g | 795g without batteries | 795g without batteries |
|
Warranty
|
||
|
Warranty on Device, years
|
||
|
Warranty on Batteries, years
|
||
|
Trade Data
|
||
|
SKU (Model #)
|
HE25L | HE25LN |

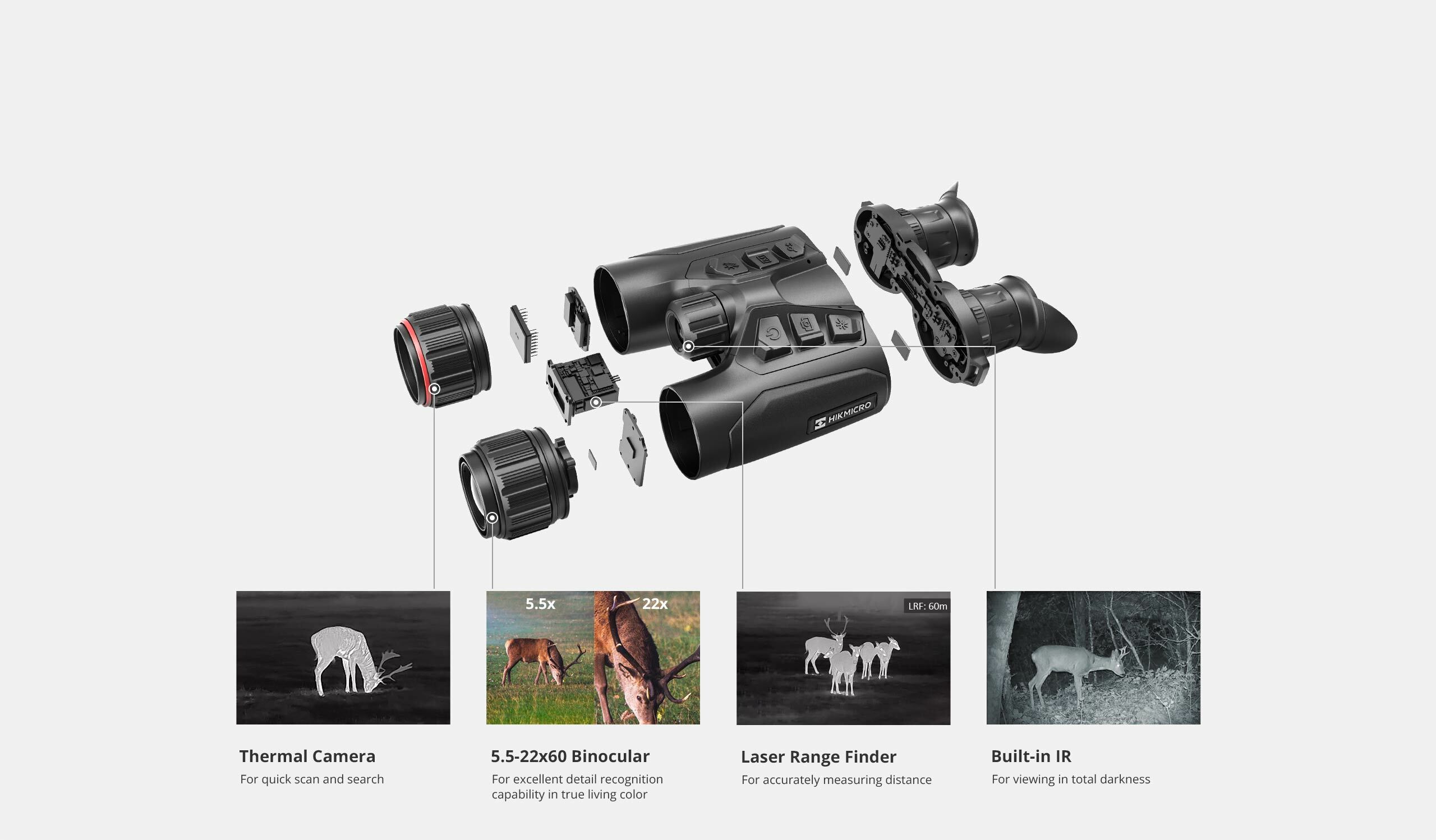

All-in-One Design Simplifies the Way You Hunt for Full Days, Especially from Twilight to Night
Full Color 4K UHD Brings Vivid Images Even at Twilight
The high-tech Full-Color 4K UHD detector of HABROK 4K brings crystal clarity during daytime, even at twilight, providing the extra few minutes you need on a hunt.
HABROK 4K delivers the highest level of detail and reproduces colors with natural fidelity.
5.5-22X60 Covers Your Various Observation Needs
Instead of a fixed magnification by optical binocular, the 5.5x-22x magnification with a 60mm focal length means you can zoom HABROK 4K in and out freely from catching whole surroundings to recognizing the smallest details, such as a deer’s antler, or sexuality features, within 150m during daytime.
Built-in IR Emitter Brings Superior Clarity in B/W in Darkness
The Built-in IR illuminator brings classic black/white images at night. With optional 850nm or 940nm wavelength and 3-level adjustable emitter power, users are able to see extra miles with superior clarity in total darkness
Quick Scan and Search with Thermal Technology
As a Multi-Spectrum Binocular, HABROK 4K’s thermal camera provides the ability to see through animal’s camouflages and present the animal’s heat signal even when they are among brushes or leaves. Therefore enables a quick scan and search efficiency in open wilds.
Built-in Laser Rangefinder for Accurate Distance Measurement
The integrated laser rangefinder in the HIKMICRO HABROK 4K determines the accurate distances up to a maximum of 1,000m with a ±1 meter accuracy.
Digitalize Your Hunting Experience
Highlights Capturing in Local Album and APP
One big joy of hunting trips is to record your fascinating and unpredicted adventures instantly. With HIKMICO HABROK 4K, you are able to create photos and videos of your exciting highlights with one press and save them in Local Album and SIGHT APP, no wonderful moments will missed.
Unlocks the Full Potential by Connecting to SIGHT APP
By connecting HABROK 4K to SIGHT APP, all the captured thrilling images and videos can be synced on your phone and you can share them to social media easily. Also, a total control is granted, you can share the real-time screen with your hunting companions, and make main parameter setting at the same time.
Long Operation Time, Auto Screen-Off, Enough for A Full Day Hunting
The HABROK 4K Multi-spectrum Binocular comes with four 18650 replaceable and rechargeable batteries, providing 8-hour continuous operation on a single charge. Plus the auto screen-off function saves energy, so users can enjoy games without power anxiety.
Classic Style with Innovative Designs Builds up an Exceptional Viewing Experience
A Comfortable and Effortless Observation
HABROK 4K enables quick and easy positioning of the eye with 60-74mm adjustable interpupillary distance and the new foldable eyepieces – no worry at all if you wear glasses.
A 0.49’’ 1920x1080 large OLED screen of multi-spectrum binocular HABROK 4K delivers a comfortable and immersive viewing to users.
Intuitive And Precise Focus for Both Thermal And Digital Viewing
Multi-Spectrum Binocular HABROK 4K provides impressive details even in difficult terrain thanks to the focus ring for both thermal and digital lenses. You can focus with extreme precision even when wearing gloves.
Compact, Lightweight And Robust
Maintaining the classic daytime binocular appearance and lightweight <800g, HABROK 4K is easy to fit into any bag. Besides, the rugged magnesium housing also enhances durability and longevity.
More Advantages
Download Selection
Extra Information
Brand:
HikMicro
