HIKMICRO Panther 2.0 PQ50L Thermal Rangefinding Scope

SKU:
TIHIK737
$6,299.00

Free Express Shipping

Description

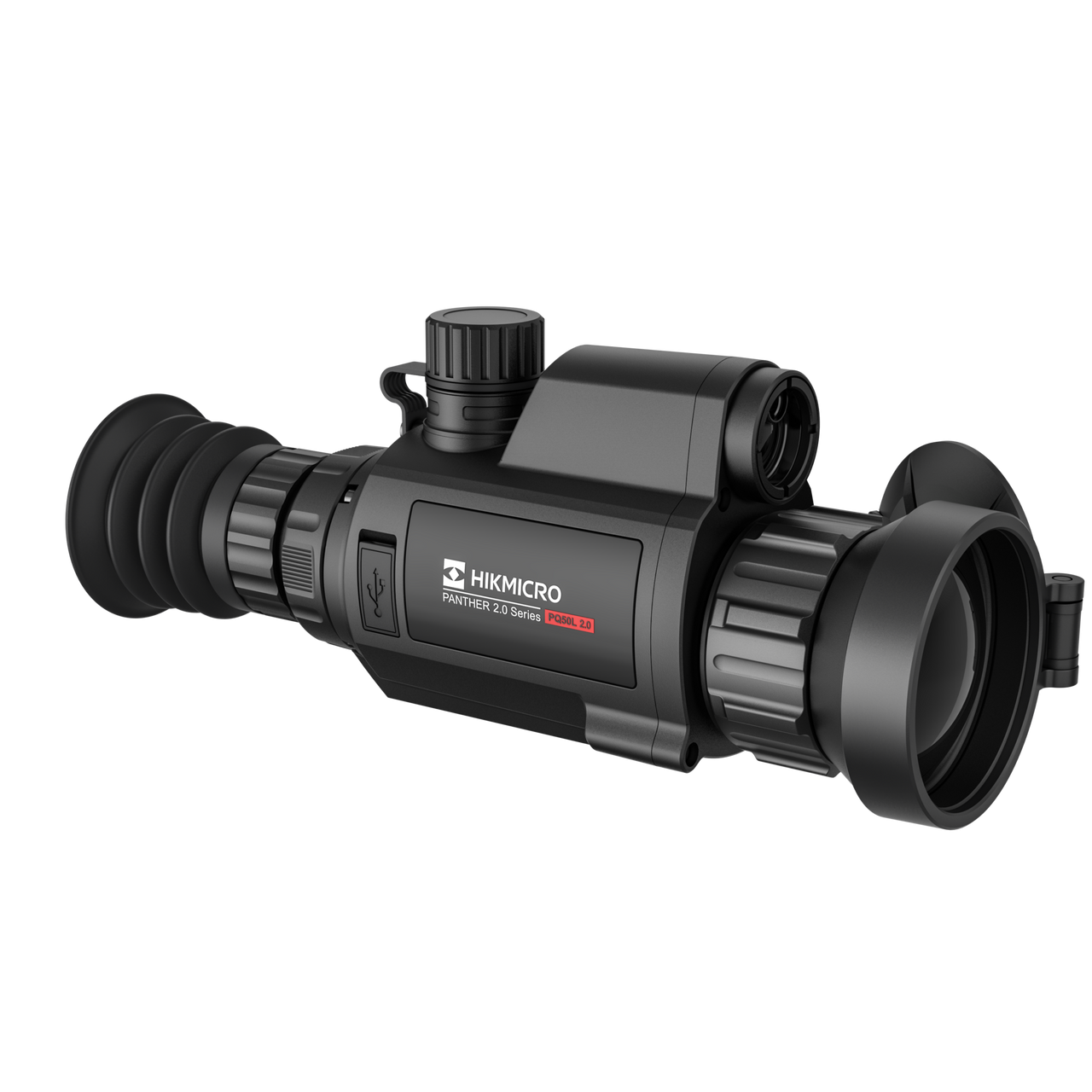

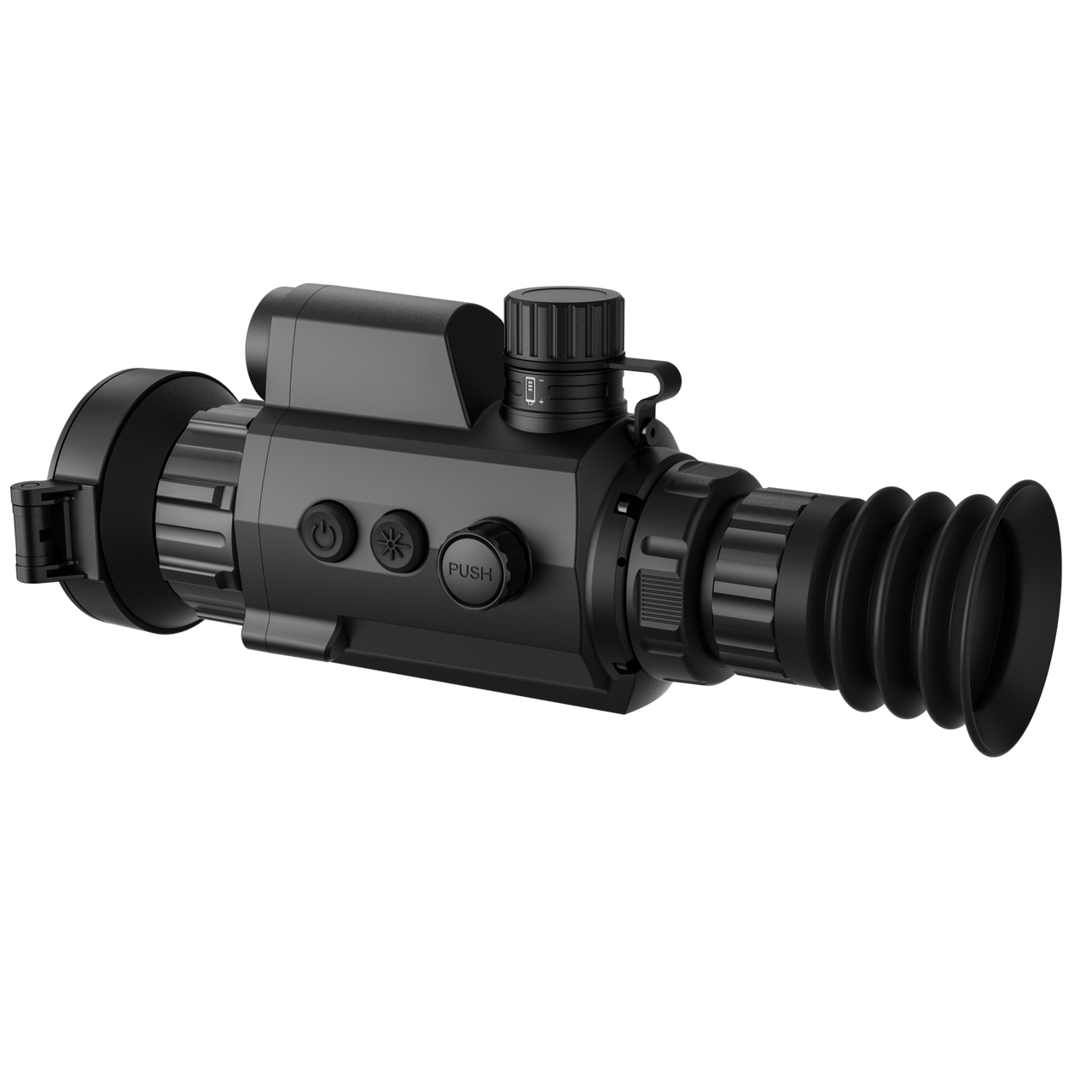

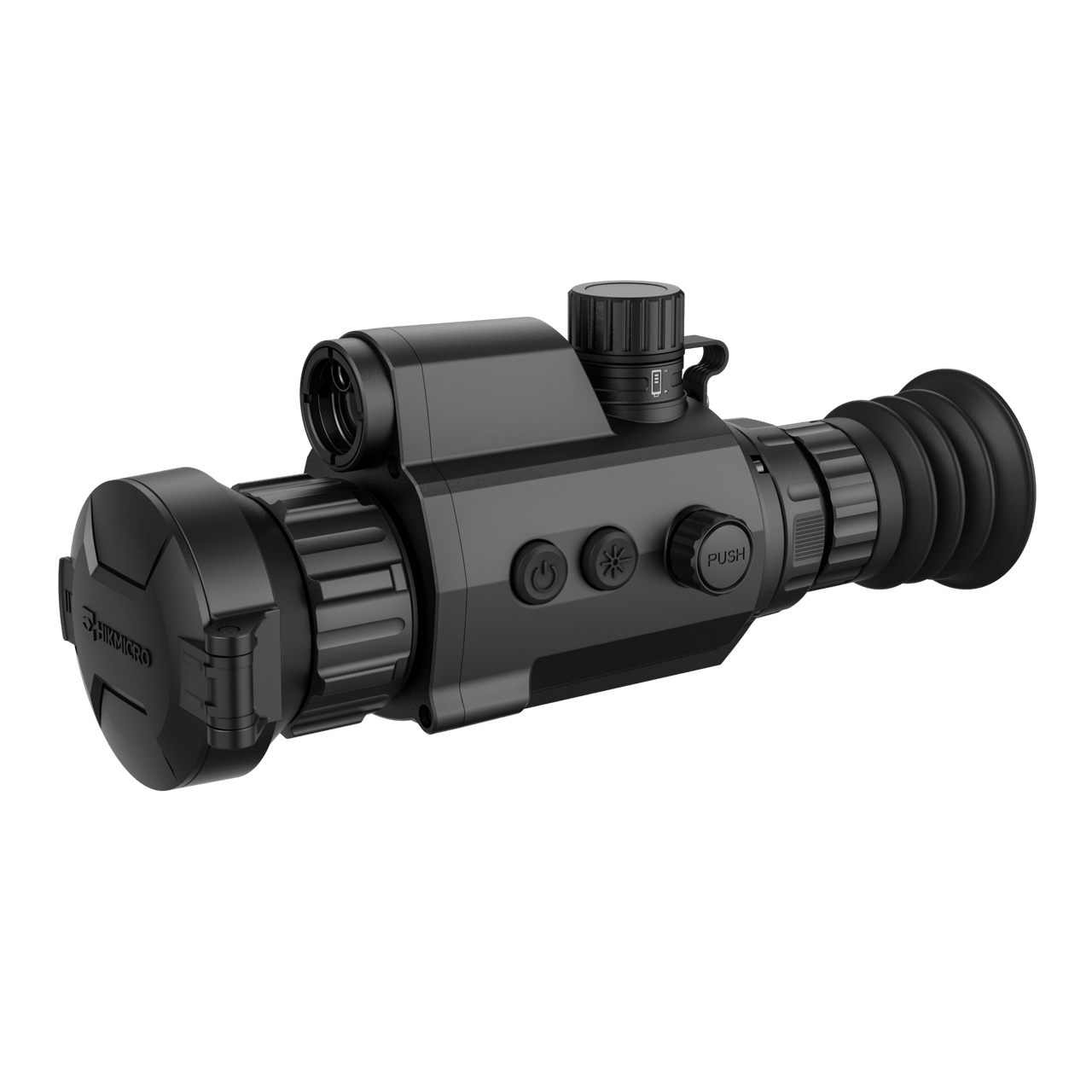

HIKMICRO Panther 2.0 PQ50L Thermal Scope

The HIKMICRO PANTHER PQ50L 2.0 Thermal Scope is equipped with a 640 × 512 thermal detector and a 1024 × 768 OLED monitor. Its remarkable thermal sensitivity guarantees precise detail recognition, even in the most challenging weather conditions where there is minimal temperature difference between the object and the background. Tailored for applications such as hiking, hunting, searching, and rescuing, this scope excels in providing optimal performance across diverse scenarios.

Key Features

  • Ultra clear image, impressive detail recognition
  • High thermal sensitivity, perfect detail recognition
  • Vivid, informative, and layered images
  • Built-in laser range finder provides an accurate game
  • Internal ballistic calculation for long-range shooting
  • Compact Size and Rugged Design for High Reliability
  • Integrated design provides hassle-free experience
  • Rugged and reliable for toughest condition
  • High shock resistance
  • Replaceable and rechargeable battery
  • Less than 20mK (25 °C, F#=1.0)
  • 12μm Pixel Pitch

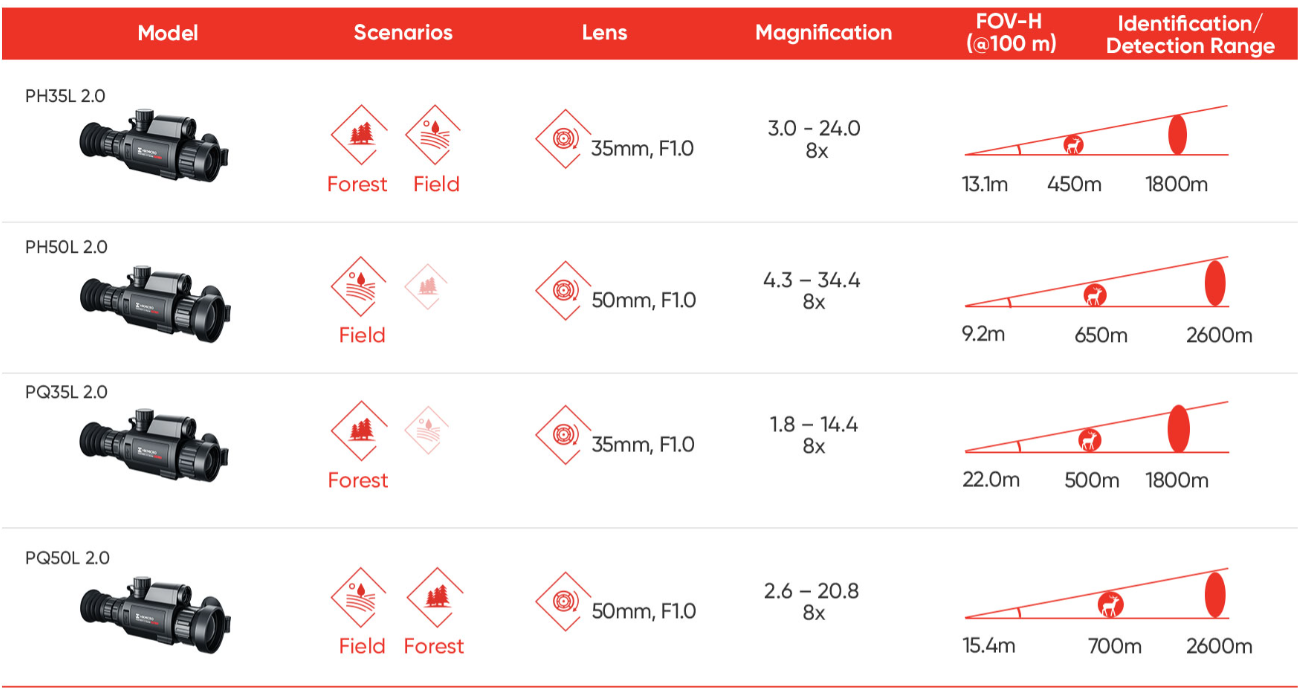

Range Specifications

Model
PH35L 2.0
PH50L 2.0
PQ35L 2.0
PQ50L 2.0
Sensor resolution
384x288
384x288
640x512
640x512
Objective lens
35mm, f1.0
50mm, f1.0
35mm, f1.0
50mm, f1.0
Magnification, x
3.0× - 24.0× (8×)
4.3× - 34.4× (8×)
1.8 × - 14.4 × (8×)
2.6 × - 20.8 × (8×)
Field of view (HxV), degrees / m@100m
7.5° × 5.7°/13.1m × 10.0m
5.3° x 4.0°/9.3m × 7.0m
12.5° × 10.0°/21.9m × 17.5m
8.8° × 7.0°/15.4m × 12.2m
Detection range, m (thermal)
1800m
2600m
1800m
2600m
  Sensor

Type
Uncooled Focal Plane Arrays
Uncooled Focal Plane Arrays
Uncooled Focal Plane Arrays
Uncooled Focal Plane Arrays
Resolution, pixels
384x288
384x288
640x512
640x512
Pixel pitch, µm
12μm
12μm
12μm
12μm
NETD, mK
Less than 20mK (25 °C, F#=1.0)
Less than 20mK (25 °C, F#=1.0)
Less than 20mK (25 °C, F#=1.0)
Less than 20mK (25 °C, F#=1.0)
Frame rate, Hz
50Hz
50Hz
50Hz
50Hz
  Optics




Objective lens
35mm, f1.0
50mm, f1.0
35mm, f1.0
50mm, f1.0
Magnification, x
3.0 ×- 24.0× (8×)
4.3× - 34.4× (8×) 1.8 × - 14.4 × (8×)
2.6 × - 20.8 × (8×)
Field of view (HxV), degrees / m @ 100 m
7.5° × 5.7°/13.1m × 10.0m
5.3° x 4.0°/9.3m × 7.0m
12.5° × 10.0°/21.9m × 17.5m
8.8° × 7.0°/15.4m × 12.2m
Eye relief, mm
45mm
45mm
45mm
45mm
  Display




Type
OLED
OLED
OLED
OLED
Resolution, pixels
1024x768, 0.39 inch
1024x768, 0.39 inch
1024x768, 0.39 inch
1024x768, 0.39 inch
  Range Performance




Detection range, m (thermal)
1800m
2600m
1800m
2600m
  Laser Rangefinder




Safety Class for laser equipment according IEC 60825-1:2014
Class 1
Class 1
Class 1
Class 1
Wavelength, nm
905nm
905nm
905nm
905nm
Max. measuring range, m
600m
600m
600m
600m
Measurement Accuracy, m
±1m
±1m
±1m
±1m
  Reticle




Click value, H/V, mm at 100 m
-
-
-
-
Click range, H/V, mm at 100 m
-
-
-
-
Number of preloaded reticles
5
5
5
5
  Video Recorder




Video / photo resolution, pixel
1024x768, 0.39 inch
1024x768, 0.39 inch
1024x768, 0.39 inch
1024x768, 0.39 inch
Video / photo format
(.mp4)
(.mp4)
(.mp4)
(.mp4)
Built-in memory, Gb
Built-in EMMC (16 GB)
Built-in EMMC (16 GB)
Built-in EMMC (16 GB)
Built-in EMMC (16 GB)
  Wi-Fi
Yes
Yes
Yes
Yes
Wireless Protocol




Wireless Standard




Frequency, GHz




  Environmental Characteristics




Degree of protection, IP code (IEC60529)
IP67
IP67
IP67
IP67
Operating temperature range, °C
-30 °C to +55 °C (-22 °F to 131°F)
-30 °C to +55 °C (-22 °F to 131°F)
-30 °C to +55 °C (-22 °F to 131°F)
-30 °C to +55 °C (-22 °F to 131°F)
  Connections and Compatibilities




Max. recoil power on rifled weapon (Eo), Joules
1000g/0.4ms
1000g/0.4ms
1000g/0.4ms
1000g/0.4ms
Shock resistance on the smooth-bore rifles, caliber
-
-
-
-
Mounting brackets on weapon
Picatinny Rail
Picatinny Rail
Picatinny Rail
Picatinny Rail
Supported Appplication
Hikmicro Sight App
Hikmicro Sight App
Hikmicro Sight App
Hikmicro Sight App
  Power Supply




Output voltage, V




Battery type
Replaceable and Rechargeable Li-ion Battery
Replaceable and Rechargeable Li-ion Battery
Replaceable and Rechargeable Li-ion Battery
Replaceable and Rechargeable Li-ion Battery
Capacity, mAh




Operating time on battery pack (at t=22°C), h *
≥6h (25 °C, with hotspot off)
≥6h (25 °C, with hotspot off)
≥5h (25 °C, with hotspot off)
≥5h (25 °C, with hotspot off)
External power supply, V
5V DC, 2 A
Supports External Power Supply
5V DC, 2 A
Supports External Power Supply
5V DC, 2 A
Supports External Power Supply
5V DC, 2 A
Supports External Power Supply
  Weight & Size




Body Material
-
-
-
-
Dimensions mm
214.6 mm x 67.0 mm x 87.1 mm
226.8 mm x 73.3 mm x 87.1 mm
214.6 mm x 67.0 mm x 87.1 mm
226.8 mm x 73.3 mm x 87.1 mm
Weight kg
518g without Battery
585g without Battery
518g without Battery
585g without Battery
  Warranty




Warranty on Device, years
3 years
3 years
3 years
3 years
Warranty on Batteries, years
1 year
1 year
1 year
1 year
  Trade Data




SKU (Model #)
PH35L 2.0
PH50L 2.0
PQ35L 2.0
PQ50L 2.0



Ultra clear image, impressive detail recognition

High thermal sensitivity, perfect detail recognition
Every detail matters when identifying targets. Less than 20 mK NETD helps identify small details of objects from the backgrounds easily and clearly even in the hardest weather and low- light conditions.
Vivid, informative, and layered images

Even when hunting with thermal imaging, PANTHER 2.0's powerful thermal camera still provides you with the most vivid and layered images for reliable game identification and maximum hunting success.
Built-in laser range finder provides an accurate game

Distance from the game is essential to ensure a safe shot. The built-in LRF provides an accurate distance measurement, allowing you to determine the exact time of your shooting.
Internal ballistic calculation for long-range shooting

The PANTHER 2.0 is HIKMICRO's first thermal scope with ballistic calculation, ensuring accurate shooting at any distance. The internal ballistics algorithm calculates the suggested aiming point based on the exact distance measured by the built-in laser ranging finder to ensure precise long-range shooting.
*Note: Zeroing PANTHER 2.0 at the distance you are accustomed to before using ballistic calculation.

Compact Size and Rugged Design for High Reliability
Integrated design provides hassle-free experience

PANTHER LRF 2.0 continues a one-style design with compact and reasonable structure, it provides hunters with a hassle-free operation experience.
Rugged and reliable for toughest condition

PANTHER LRF 2.0 works well even in extreme temperature surroundings from -30 °C to +55 °C. IP67 waterproof rating keeps it well in conditions of high humidity/dust and heavy rain.

High shock resistance

Metal housing and rugged components enable PANTHER 2.0 high shock resistance up to 1000g/0.4ms on larger calibers to .375 H&H, 12-gauge and 9.3 × 64.
Replaceable and rechargeable battery

Two batteries and an external battery charger are included in the package box, which gives the freedom to use as long as needed even a full day.



More Advantage






Extra Information

Brand:
HikMicro
