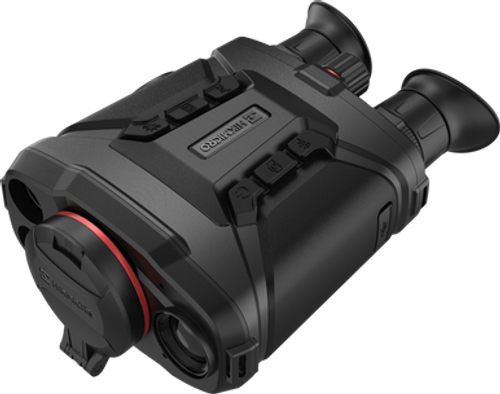

Hikmicro Raptor RQ50LN Thermal Binocular
Check out the HIKMICRO Raptor RQ50LN from the HIKMICRO Raptor Series, incorporating thermal technology and day & night vision cameras. The Raptor RQ50LN features a <20 NETD 640x512 px sensor and an F0.9 aperture 50mm lens system for clear thermal images. A built-in 1000m laser range finder ensures accurate distance measurements. Equipped with a day & night optical, it seamlessly captures full-colour images during the day and switches to night mode after dark, courtesy of a built-in IR illuminator. A standout feature of this vision device is the Zoom Pro, which offers hunters superior image quality with a high signal-to-noise ratio and impressive details. Designed by the Red-Dot award-winning designer team, the Raptor RQ50LN has an ergonomic yet aesthetic design with conveniently placed controls. It delivers information simultaneously and allow interpupillary distance adjustment for a clear view of the 1024x768 HD OLED display. This binocular also includes an automatic shut-off feature to prevent unintentional light exposure. It runs on replaceable and rechargeable 3x 18650 batteries, offering 8 hours of operation. For a convenient and precise observation experience, give the HIKMICRO Raptor RQ50LN binoculars a try.
Proposed Uses (RQ50LN);
- Thermal Detection Range = up to 2600mtrs
- Thermal Identification Range for various sized targets;
- Small (Rabbit) = 200mtrs
- Sml-Med (Fox) = 350mtrs
- Medium (Pig) = 350mtrs
- Med-Lge (Deer) = 500mtrs
Key Features (RQ50LN);
- 20mK High Sensitivity Thermal Camera
- 2560x1440 HD Day & Night Camera
- 1000m Laser Rangefinder
- Zoom Pro, HIKMICRO’s advanced self-developed zoomed image processing algorithm
- GPS & DMC
- Smart IR
Raptor Specifications
| Product Model | RH50L | RH50LN | RQ50L | RQ50LN |
| Main | ||||
|
Sensor
|
384x288 @ 12μm (NETD <20mK) |
384x288 @ 12μm (NETD <20mK) | 640x512 @ 12μm (NETD <20mK) | 640x512 @ 12μm (NETD <20mK) |
|
Objective lens
|
F0.9 | F0.9 | F0.9 | F0.9 |
|
Magnification, x
|
5.7 | 5.7 | 3.4 | 3.4 |
|
Field of view (HxV), degrees / m@100m
|
5.3 × 4.0 (HxV) / 9.3m × 7.0m | 5.3 × 4.0 (HxV) / 9.3m × 7.0m | 8.8 × 7.0 (HxV) / 15.4 m × 12.2 m | 8.8 × 7.0 (HxV) / 15.4 m × 12.2 m |
|
Detection range, m (thermal)
|
2600m | 2600m | 2600m | 2600m |
|
Sensor
|
||||
|
Type
|
VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
|
Resolution, pixels
|
384x288 | 384x288 | 640x512 | 640x512 |
|
Pixel pitch, µm
|
12μm | 12μm | 12μm | 12μm |
|
NETD, mK
|
<20 | <20 | <20 | <20 |
|
Frame rate, Hz
|
25Hz | 25Hz | 25Hz | 25Hz |
|
Optics
|
||||
|
Objective lens
|
F0.9 | F0.9 | F0.9 | F0.9 |
|
Magnification, x
|
5.7 | 5.7 | 3.4 | 3.4 |
|
Field of view (HxV), degrees / m @ 100 m
|
5.3 × 4.0 (HxV) / 9.3m × 7.0m | 5.3 × 4.0 (HxV) / 9.3m × 7.0m | 8.8 × 7.0 (HxV) / 15.4 m × 12.2 m | 8.8 × 7.0 (HxV) / 15.4 m × 12.2 m |
|
Eye relief, mm
|
15 | 15 | 15 | 15 |
|
Lens (focal length)
|
50mm | 50mm | 50mm | 50mm |
|
Min. focusing distance
|
5m | 5m | 5m | 5m |
|
Image sensor
|
1.88'' Progressive Scan CMOS | 1.88'' Progressive Scan CMOS | 1.88'' Progressive Scan CMOS | 1.88'' Progressive Scan CMOS |
|
Max. resolution
|
2560 x 1440 | 2560 x 1440 | 2560 x 1440 | 2560 x 1440 |
|
Min. illumination
|
0.001 lux @ (F1.0 , AGC On) | 0.001 lux @ (F1.0 , AGC On) | 0.001 lux @ (F1.0 , AGC On) | 0.001 lux @ (F1.0 , AGC On) |
|
Focal length, mm
|
31 | 31 | 31 | 31 |
|
Aperture
|
F1.2 | F1.2 | F1.2 | F1.2 |
|
IR illuminator wavelength, nm
|
850 | 940 | 850 | 940 |
|
Viewing range at night, m
|
400 | 350 | 400 | 350 |
|
Image enhancement
|
YES | YES | YES | YES |
|
Smart IR
|
YES | YES | YES | YES |
|
Display
|
||||
|
Type
|
OLED | OLED | OLED | OLED |
|
Resolution, pixels
|
1024x768, 0.39 inch | 1024x768, 0.39 inch | 1024x768, 0.39 inch | 1024x768, 0.39 inch |
|
Diopter (range)
|
-5D to +3D | -5D to +3D | -5D to +3D | -5D to +3D |
|
Digital zoom
|
1X, 2X, 4X, 8X, 16X | 1X, 2X, 4X, 8X, 16X | 1X, 2X, 4X, 8X, 16X | 1X, 2X, 4X, 8X, 16X |
|
FFC (Flat Field Correction) mode
|
Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
|
Image mode
|
Optical、Fusion、White Hot、Black Hot、Red Hot、Image Fusion | Optical、Fusion、White Hot、Black Hot、Red Hot、Image Fusion | Optical、Fusion、White Hot、Black Hot、Red Hot、Image Fusion | Optical、Fusion、White Hot、Black Hot、Red Hot、Image Fusion |
|
Optical mode
|
Day、Night、Auto、Defog | Day、Night、Auto、Defog | Day、Night、Auto、Defog | Day、Night、Auto、Defog |
|
Interpupillary adjustment range, mm
|
60 - 70 | 60 - 70 | 60 - 70 | 60 - 70 |
|
Image pro
|
YES | YES | YES | YES |
|
Zoom pro
|
YES | YES | YES | YES |
|
Range Performance
|
||||
|
Detection range, m (thermal)
|
2600 | 2600 | 2600 | 2600 |
|
Laser Rangefinder
|
||||
|
Safety Class for laser equipment according IEC 60825-1:2014
|
IP67 | IP67 | IP67 | IP67 |
|
Wavelength, nm
|
905 | 905 | 905 | 905 |
|
Max. measuring range, m
|
1000 | 1000 | 1000 | 1000 |
|
Measurement Accuracy, m
|
±1 | ±1 | ±1 | ±1 |
|
Reticle
|
||||
|
Click value, H/V, mm at 100 m
|
- | - | - | - |
|
Click range, H/V, mm at 100 m
|
- | - | - | - |
|
Number of preloaded reticles
|
- | - | - | - |
|
Video Recorder
|
||||
|
Video / photo resolution, pixel
|
1600x1200 | 1600x1200 | 1600x1200 | 1600x1200 |
|
Video / photo format
|
MP4 / JPEG | MP4 / JPEG | MP4 / JPEG | MP4 / JPEG |
|
Built-in memory, Gb
|
64 | 64 | 64 | 64 |
|
Wi-Fi
|
||||
|
Wireless Protocol
|
- | - | - | - |
|
Wireless Standard
|
- | - | - | - |
|
Frequency, GHz
|
- | - | - | - |
|
Environmental Characteristics
|
||||
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 | IP67 | IP67 |
|
Operating temperature range, °C
|
-30 - +55 | -30 - +55 | -30 - +55 | -30 - +55 |
|
Working humidity
|
<90% | <90% | <90% | <90% |
|
Storage temperature
|
-40 - +70 | -40 - +70 | -40 - +70 | -40 - +70 |
|
Connections and Compatibilities
|
||||
|
Max. recoil power on rifled weapon (Eo), Joules
|
- | - | - | - |
|
Shock resistance on the smooth-bore rifles, caliber
|
- | - | - | - |
|
Mounting brackets on weapon
|
- | - | - | - |
|
Supported Application
|
HIKMICRO Sight | HIKMICRO Sight | HIKMICRO Sight | HIKMICRO Sight |
|
Mounting adapter
|
1/4“-20-UNC | 1/4“-20-UNC | 1/4“-20-UNC | 1/4“-20-UNC |
|
Hotspot
|
YES | YES | YES | YES |
|
GPS
|
YES | YES | YES | YES |
|
Digital magnetic compass
|
YES | YES | YES | YES |
|
Standby mode
|
YES | YES | YES | YES |
|
PIP
|
YES | YES | YES | YES |
|
Hot track
|
YES | YES | YES | YES |
|
Audio recording
|
YES | YES | YES | YES |
|
Proximity sensor
|
YES | YES | YES | YES |
|
Multiple language
|
YES | YES | YES | YES |
|
Local album
|
YES | YES | YES | YES |
|
Power Supply
|
||||
|
Output voltage, V
|
- | - | - | - |
|
Battery type
|
Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
|
Capacity, mAh
|
- | - | - | - |
|
Operating time on battery pack (at t=25°C), h *
|
8h (with hotspot function off) | 8h (with hotspot function off) | 8h (with hotspot function off) | 8h (with hotspot function off) |
|
External power supply, V
|
- | - | - | - |
| Type-C Power Supply | YES | YES | YES | YES |
| Accessory | Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor,Carrying Case | Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor,Carrying Case | Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor,Carrying Case | Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Quick Start Guide, Six Batteries, Adaptor,Carrying Case |
|
Weight & Size
|
||||
| Body Material | - | - | - | - |
|
Dimensions mm
|
217.5 × 155.0 × 87.5 | 217.5 × 155.0 × 87.5 | 217.5 × 155.0 × 87.5 | 217.5 × 155.0 × 87.5 |
|
Weight kg
|
0.98 (w/o Battery) | 0.98 (w/o Battery) | 0.98 (w/o Battery) | 0.98 (w/o Battery) |
|
Warranty
|
||||
|
Warranty on Device, years
|
- | - | - | - |
|
Warranty on Batteries, years
|
- | - | - | - |
|
Trade Data
|
||||
|
SKU (Model #)
|
- | - | - | - |

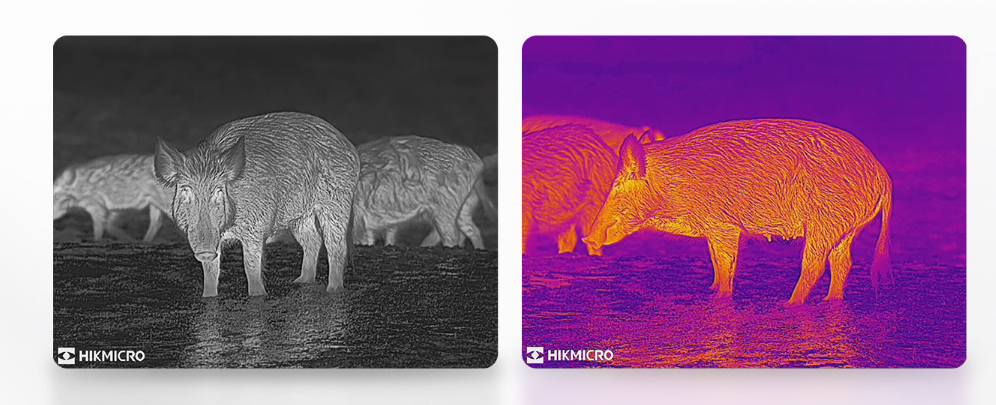

20mK High Sensitivity Thermal Camera
Extremely high thermal sensitivity, NETD<20mK | High Definition Thermal Sensor, up to 640x512 @12μm | Super large aperture f/0.9 lens, 19% improvement | Image Pro, enhanced self-developed image processing algorithm | Long detection range up to 2600m with a standard 1.7m tall object | Powerful magnification up to 91x, up to 5.7x optical magnification in combination with 16x digital zoom.
2560x1440 HD Day & Night Camera
High resolution image2560x1440, delivering bright and vivid image at daytime | Support low light conditions 0.001Lux. With built-in 850nm or 940nm IR illuminator, the image is still visible clearly under complete darkness. | The unique defog mode ensures the image clarity during foggy day.

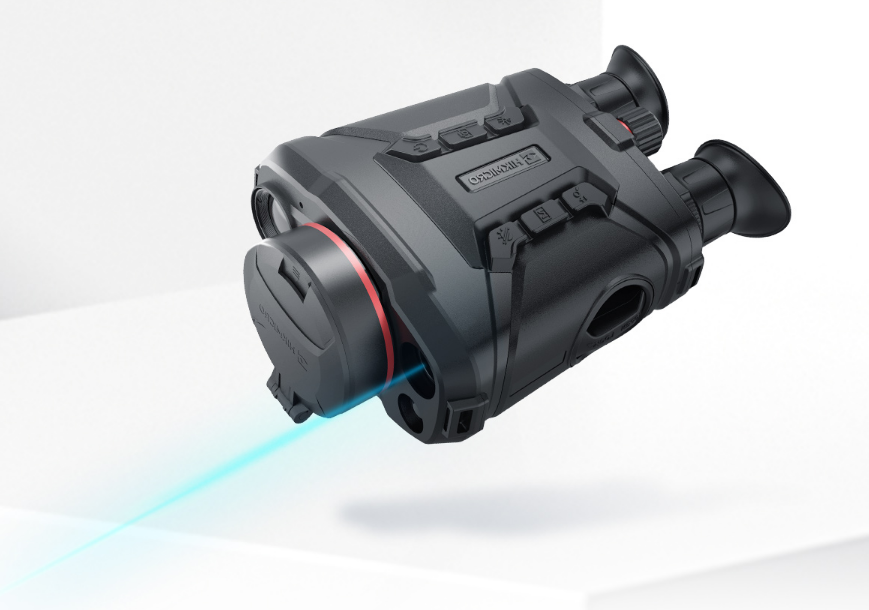

1000m Laser Rangefinder
Built-in laser rangefinder with a range of up to 1000m with an accuracy of ± 1 meter helps get the target distance to make the right decisions.

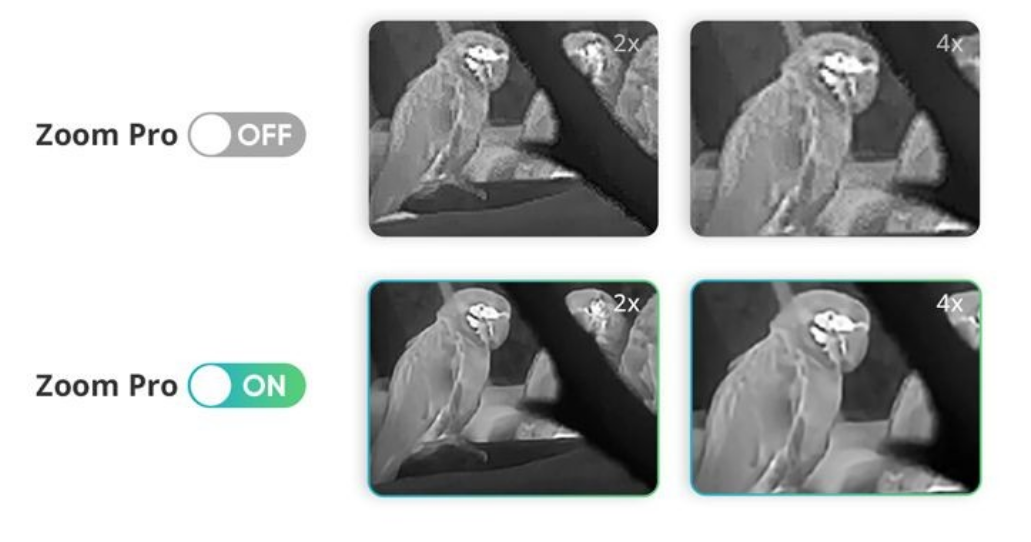

Zoom Pro, HIKMICRO’s advanced self-developed zoomed image processing algorithm
Zoom Pro is a deep learning algorithm based on the analysis of abundant hunting scene images, providing hunters with marvelous images with a higher signal-to-noise ratio and impressive details. Equipped with high-performance hardware, it ensures maximum image optimization under digital zoom.

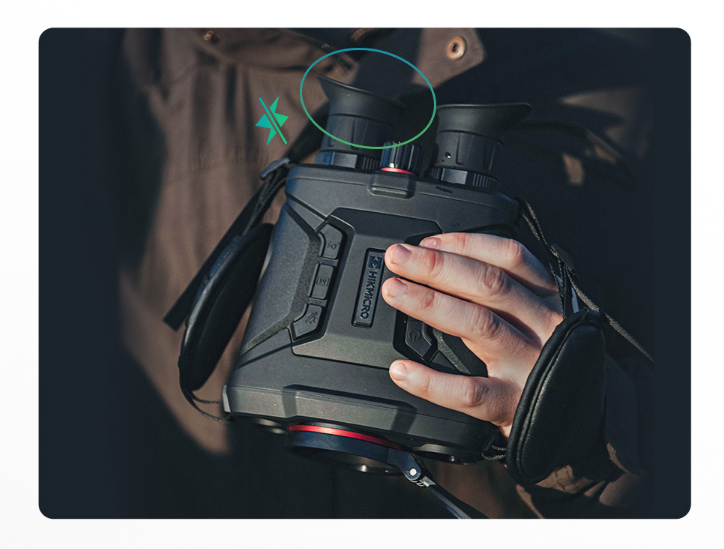

Automatic Display On & Off
When moving the device temporarily from your eyes, the display will be turned off automatically. There will be no light leakage from the eyepiece of the device.

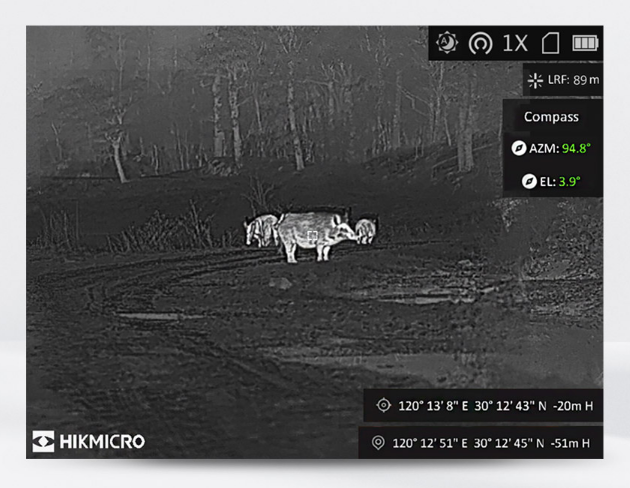

GPS & DMC
The GPS and Digital Magnetic Compass(DMC) feature ensures to locate the objects exact position through the precise measurement of an accurate azimuth relative to the direction of the magnetic north pole and a precise elevation of the observed object relative to the observer.

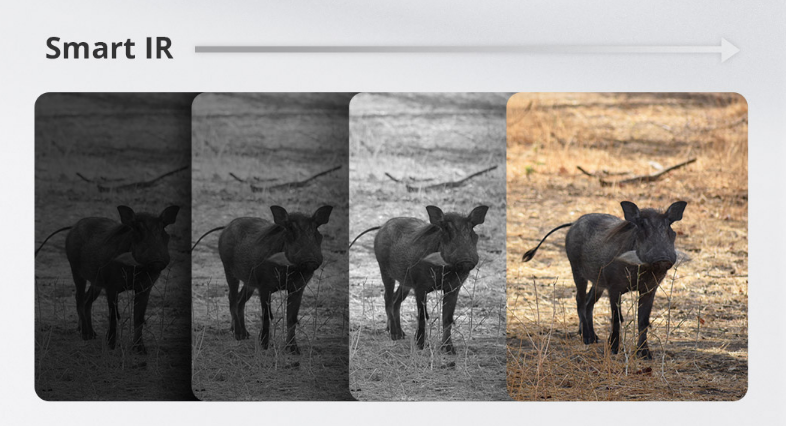

Smart IR
With the different conditions of observation, the IR illuminator can adjust brightness automatically and intelligently to avoid overexposure. In such way, it also can reduce the power consumption and improve battery life.
