Description

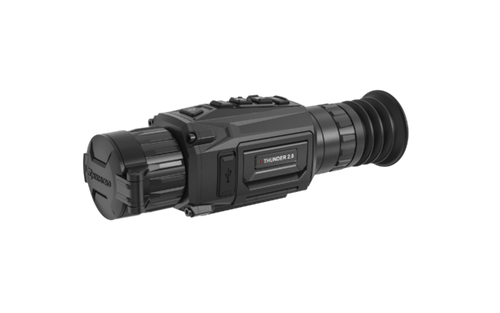

HIKMICRO THUNDER TE25 2.0 Thermal Scope
The HIKMICRO THUNDER TE25 2.0 Thermal Imaging Scope comes with a 256 x 192 thermal detector and a 0.39 inch 1024 × 768 OLED display. Its high thermal sensitivity guarantees precise detail identification, even in severe weather conditions where there's minimal temperature disparity between the object and background. With its prolonged operational duration up to 6.5 hours and an observation distance of up to 1200 m, this scope is primarily used for activities like hiking, hunting, and search and rescue operations.
Proposed Uses (TE25 2.0);
- Thermal Detection Range = up to 1200mtrs
- Thermal Identification Range for various sized targets;
- Small (Rabbit) = 100
- Sml-Med (Fox) = 150
- Medium (Pig) = 150
- Med-Lge (Deer) = 250
Key Features (TE25 2.0);
- 256x192 thermal sensor (12um, NETD <35mK)
- 25mm lens (focal length), aperture F1.0, 3.25x magnification
- New focus knob design
- Multiple reticles (5 reticle groups with 7 colors and 10 reticle types)
Thunder 2.0 Specifications
| Product Model | TE19 2.0 | TE25 2.0 | TH25P 2.0 | TH35P 2.0 | TQ35 2.0 | TQ50 2.0 |
| Main | ||||||
|
Sensor
|
256x192 @ 12μm (NETD <35mK) |
256x192 @ 12μm (NETD <35mK) | 384x288 @ 12μm (NETD <20mK) | 384x288 @ 12μm (NETD <20mK) | 640x512 @ 12μm (NETD <20mK) | 640x512 @ 12μm (NETD <20mK) |
|
Objective lens
|
F1.0 | F1.0 | F1.0 | F1.0 | F1.0 | F1.0 |
|
Magnification, x
|
2.47 | 3.25 | 2.17 | 3.03 | 1.82 | 2.6 |
|
Field of view (HxV), degrees / m@100m
|
9.24 × 6.94 / 16.17m × 12.13m | 7.03 ×5.28 / 12.29m × 9.22m | 10.53 ×7.91 / 18.43m × 13.82m | 7.53 ×5.65 / 13.17m × 9.87m | 12.52 ×10.03 / 21.94m × 17.55m | 8.78 ×7.03 / 15.36m × 12.29m |
|
Detection range, m (thermal)
|
1000 | 1200 | 1200 | 1800 | 1800 | 2600 |
|
Sensor
|
||||||
|
Type
|
Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays | Uncooled Focal Plane Arrays |
|
Resolution, pixels
|
256x192 | 256x192 | 384x288 | 384x288 | 640x512 | 640x512 |
|
Pixel pitch, µm
|
12μm | 12μm | 12μm | 12μm | 12μm | 12μm |
|
NETD, mK
|
<35 | <35 | <20 | <20 | <20 | <20 |
|
Frame rate, Hz
|
50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
|
Optics
|
||||||
|
Objective lens
|
F1.0 | F1.0 | F1.0 | F1.0 | F1.0 | F1.0 |
|
Magnification, x
|
2.47 | 3.25 | 2.17 | 3.03 | 1.82 | 2.6 |
|
Field of view (HxV), degrees / m @ 100 m
|
9.24 × 6.94 / 16.17m × 12.13m | 7.03 ×5.28 / 12.29m × 9.22m | 10.53 ×7.91 / 18.43m × 13.82m | 7.53 ×5.65 / 13.17m × 9.87m | 12.52 ×10.03 / 21.94m × 17.55m | 8.78 ×7.03 / 15.36m × 12.29m |
|
Eye relief, mm
|
45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
|
Lens (focal length)
|
19mm | 25mm | 25mm | 35mm | 35mm | 50mm |
|
Min. focusing distance
|
0.5m | 0.5m | 0.5m | 2m | 2m | 10m |
|
Focus knob
|
No | No | No | Yes | Yes | Yes |
|
Display
|
||||||
|
Type
|
OLED | OLED | OLED | OLED | OLED | OLED |
|
Resolution, pixels
|
1024x768, 0.39 inch | 1024x768, 0.39 inch | 1024x768, 0.39 inch | 1024x768, 0.39 inch | 1024x768, 0.39 inch | 1024x768, 0.39 inch |
|
Palette
|
Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
|
Diopter (range)
|
-5D to 5D | -5D to 5D | -5D to 5D | -5D to 5D | -5D to 5D | -5D to 5D |
|
Tone adjustment
|
Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm | Cold, Warm |
|
Digital zoom
|
1X, 2X, 4X, 8X | 1X, 2X, 4X, 8X | 1X, 2X, 4X, 8X | 1X, 2X, 4X, 8X | 1X, 2X, 4X, 8X | 1X, 2X, 4X, 8X |
|
FFC (Flat Field Correction)
|
Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
|
Exit pupil
|
6mm | 6mm | 6mm | 6mm | 6mm | 6mm |
|
Tone adjustment
|
Cold, warm | Cold, warm | Cold, warm | Cold, warm | Cold, warm | Cold, warm |
|
Range Performance
|
||||||
|
Detection range, m (thermal)
|
1000m | 1200m | 1200m | 1800m | 1800m | 2600m |
|
Laser Rangefinder
|
||||||
|
Safety Class for laser equipment according IEC 60825-1:2014
|
- | - | - | - | - | - |
|
Wavelength, nm
|
- | - | - | - | - | - |
|
Max. measuring range, m
|
- | - | - | - | - | - |
|
Measurement Accuracy, m
|
- | - | - | - | - | - |
|
Reticle
|
||||||
|
Click value, H/V, mm at 100 m
|
- | - | - | - | - | - |
|
Click range, H/V, mm at 100 m
|
- | - | - | - | - | - |
|
Number of preloaded reticles
|
- | - | - | - | - | - |
|
Video Recorder
|
||||||
|
Video / photo resolution, pixel
|
- | - | - | - | - | - |
|
Video / photo format
|
- | - | - | - | - | - |
|
Built-in memory, Gb
|
Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) |
|
Record video
|
On-board video recording | On-board video recording | On-board video recording | On-board video recording | On-board video recording | On-board video recording |
|
Wi-Fi
|
||||||
|
Wireless Protocol
|
- | - | - | - | - | - |
|
Wireless Standard
|
- | - | - | - | - | - |
|
Frequency, GHz
|
- | - | - | - | - | - |
|
Environmental Characteristics
|
||||||
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
|
Operating temperature range, °C
|
-30 - +55 | -30 - +55 | -30 - +55 | -30 - +55 | -30 - +55 | -30 - +55 |
|
Connections and Compatibilities
|
||||||
|
Max. recoil power on rifled weapon (Eo), Joules
|
1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms | 1000g/0.4ms |
|
Shock resistance on the smooth-bore rifles, caliber
|
- | - | - | - | - | - |
|
Mounting brackets on weapon
|
- | - | - | - | - | - |
|
Supported Application
|
- | - | - | - | - | - |
|
Capture snapshot
|
YES | YES | YES | YES | YES | YES |
|
Hotspot
|
YES | YES | YES | YES | YES | YES |
|
Standby mode
|
YES | YES | YES | YES | YES | YES |
|
PIP
|
YES | YES | YES | YES | YES | YES |
|
DPC
|
YES | YES | YES | YES | YES | YES |
|
Hot track
|
YES | YES | YES | YES | YES | YES |
|
Distance measurement
|
YES | YES | YES | YES | YES | YES |
|
Audio recording
|
YES | YES | YES | YES | YES | YES |
|
Recoil-activation recording
|
YES | YES | YES | YES | YES | YES |
|
Power Supply
|
||||||
|
Output voltage, V
|
- | - | - | - | - | - |
|
Battery type
|
Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
|
Capacity, mAh
|
- | - | - | - | - | - |
|
Operating time on battery pack (at t=25°C), h *
|
≥10h (with hotspot off) | ≥10h (with hotspot off) | ≥6.5h (with hotspot off) | ≥6.5h (with hotspot off) | ≥6.5h (with hotspot off) | ≥6.5h (with hotspot off) |
|
External power supply, V
|
5V DC | 5V DC | 5V DC | 5V DC | 5V DC | 5V DC |
| Type-C Power Supply | 5V DC, 2 A Supports External Power Supply |
5V DC, 2 A Supports External Power Supply |
5V DC, 2 A Supports External Power Supply |
5V DC, 2 A Supports External Power Supply |
5V DC, 2 A Supports External Power Supply |
5V DC, 2 A Supports External Power Supply |
|
Weight & Size
|
||||||
| Body Material | - | - | - | - | - | - |
|
Dimensions mm
|
218.7 × 67.14 × 68.04 | 218.7 × 67.14 × 68.04 | 218.7 × 67.14 × 68.04 | 221.14 x 67.4 x 68.04 | 221.14 x 67.4 x 68.04 | 230.71 x 73.36 x 68.5 |
|
Weight kg
|
0.476 (w/o battery) | 0.494 (w/o battery) | 0.488 (w/o battery) | 0.515 (w/o battery) | 0.515 (w/o battery) | 0.530 (w/o battery) |
|
Warranty
|
||||||
|
Warranty on Device, years
|
- | - | - | - | - | - |
|
Warranty on Batteries, years
|
- | - | - | - | - | - |
|
Trade Data
|
||||||
|
SKU (Model #)
|
- | - | - | - | - | - |

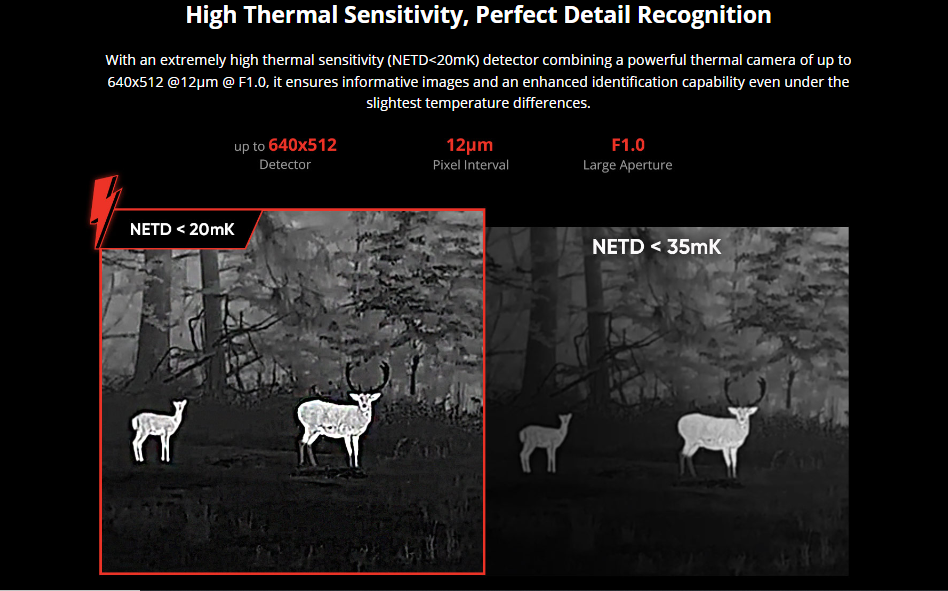

High Thermal Sensitivity, Perfect Detail Recognition

With an extremely high thermal sensitivity (NETD<20mK) detector combining a powerful thermal camera of up to 640x512 @12μm @ F1.0, it ensures informative images and an enhanced identification capability even under the slightest temperature differences.

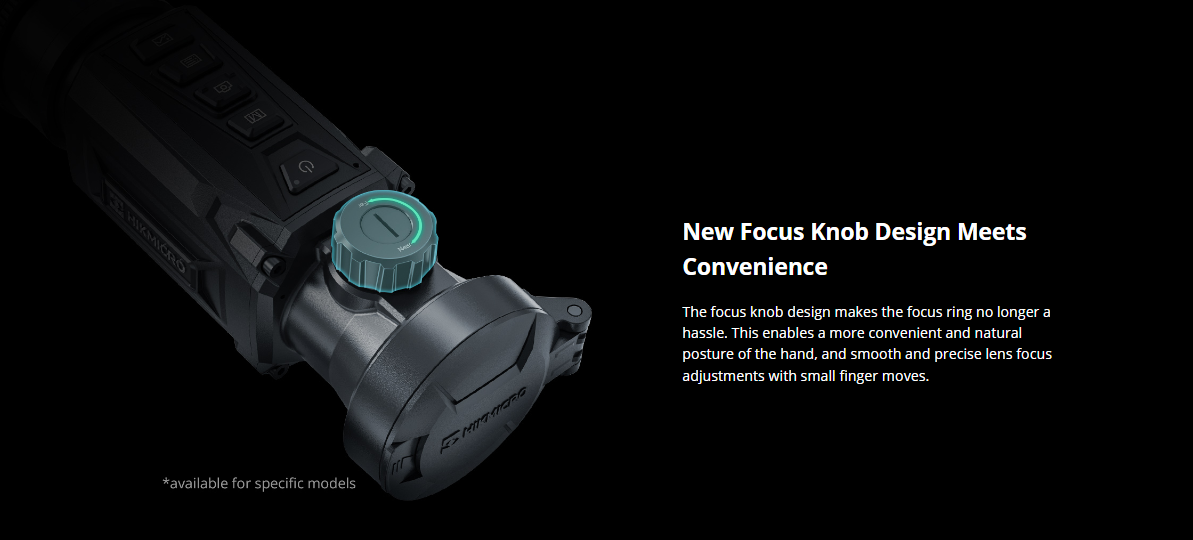

New Focus Knob Design Meets Convenience

The focus knob design makes the focus ring no longer a hassle. This enables a more convenient and natural posture of the hand, and smooth and precise lens focus adjustments with small finger moves.

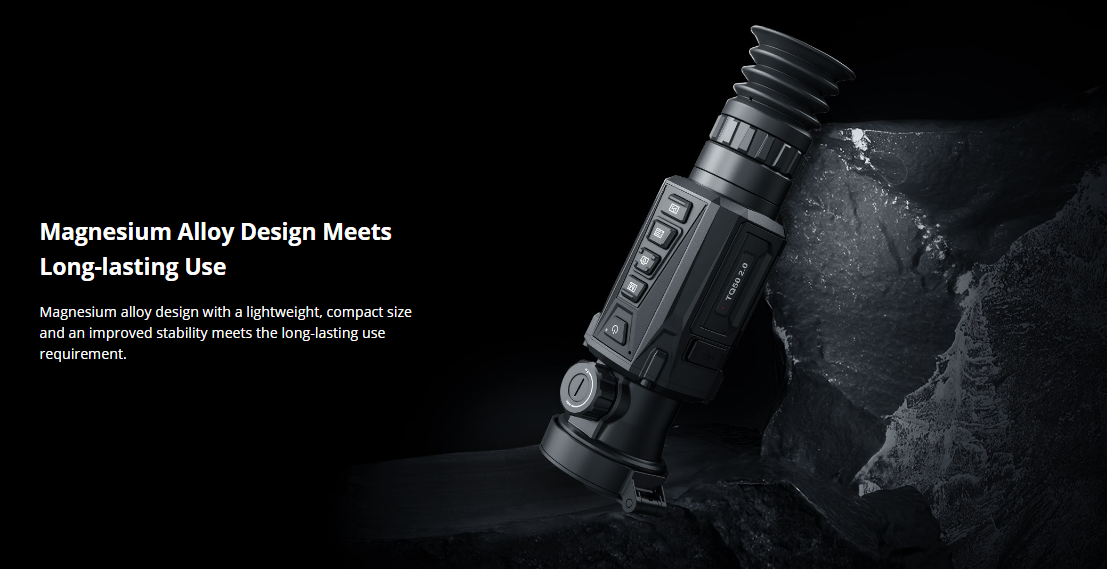

Magnesium Alloy Design Meets Long-lasting Use

Magnesium alloy design with a lightweight, compact size and an improved stability meets the long-lasting use requirement.

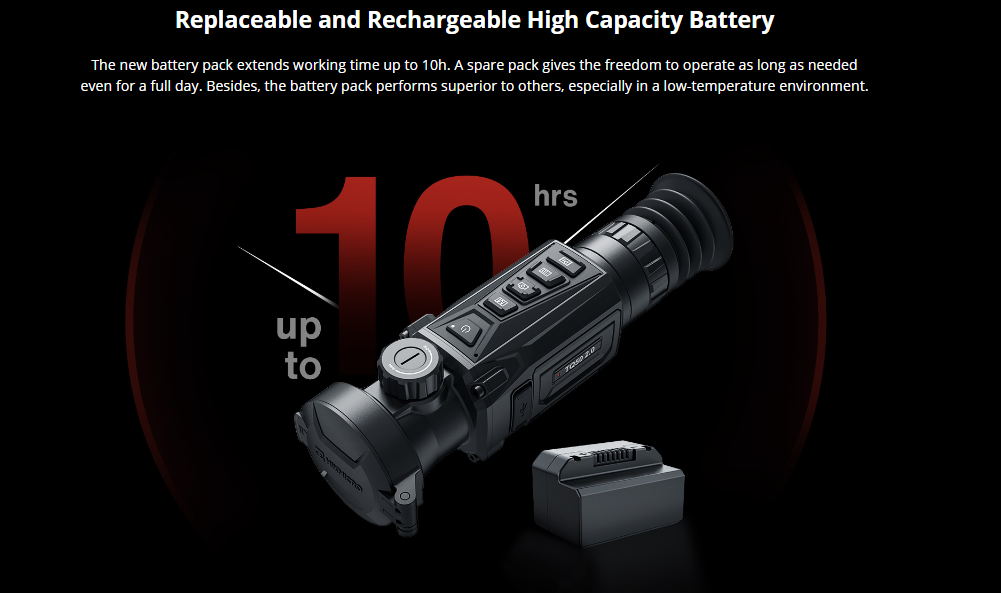

Replaceable and Rechargeable High Capacity Battery

The new battery pack extends working time up to 10h. A spare pack gives the freedom to operate as long as needed even for a full day. Besides, the battery pack performs superior to others, especially in a low-temperature environment.

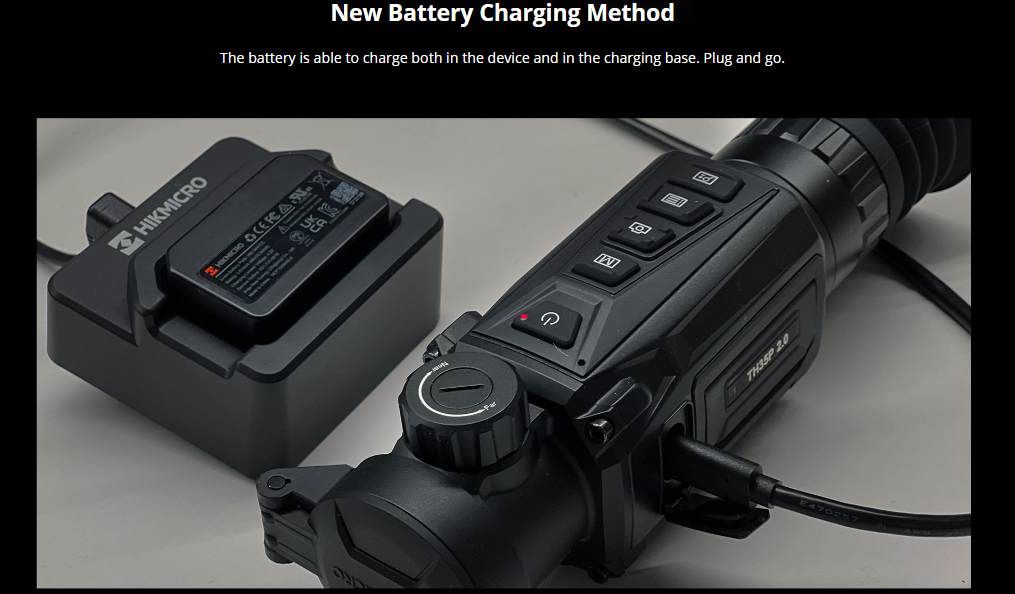

New Battery Charging Method

The battery is able to charge both in the device and in the charging base. Plug and go.

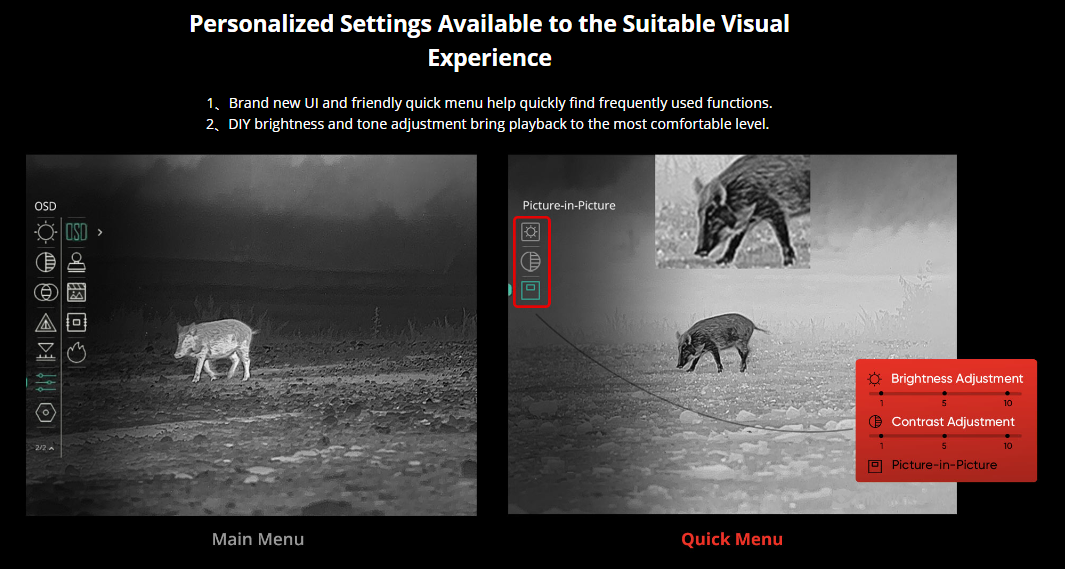

Personalized Settings Available to the Suitable Visual Experience

Brand new UI and friendly quick menu help quickly find frequently used functions. DIY brightness and tone adjustment bring playback to the most comfortable level.

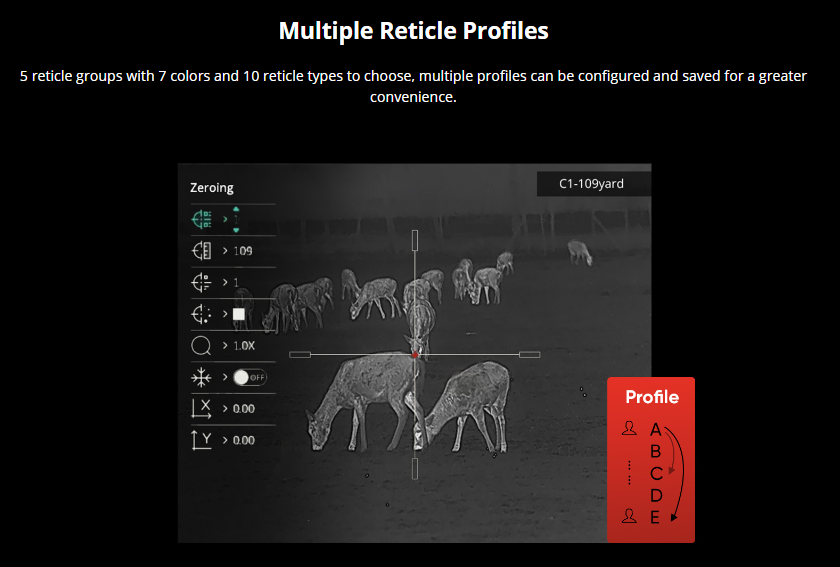

Multiple Reticle Profiles

5 reticle groups with 7 colors and 10 reticle types to choose, multiple profiles can be configured and saved for a greater convenience.
