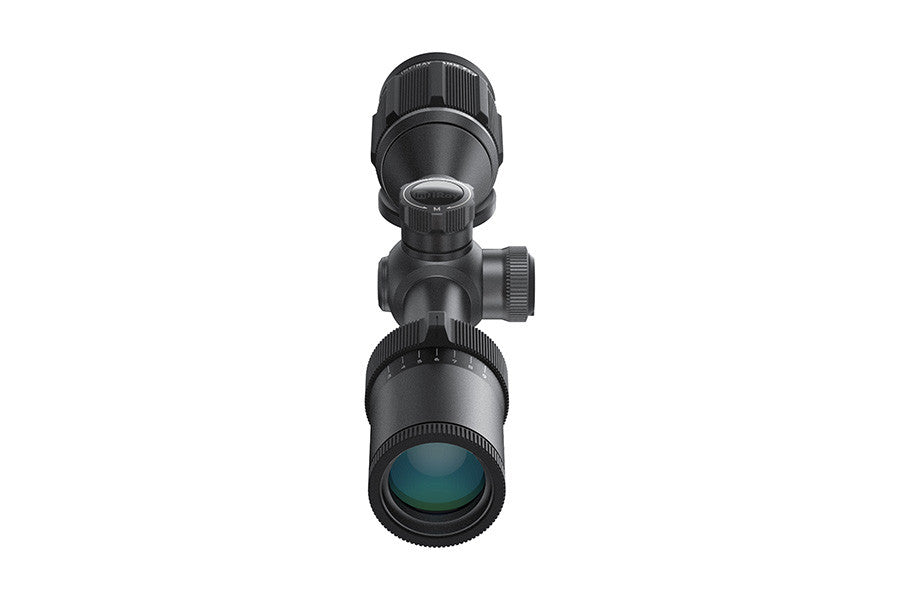

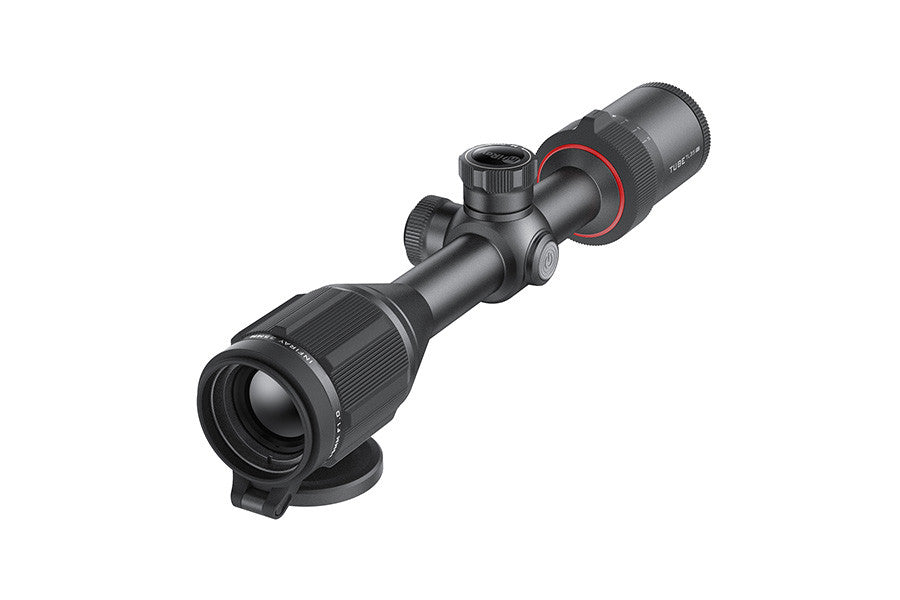

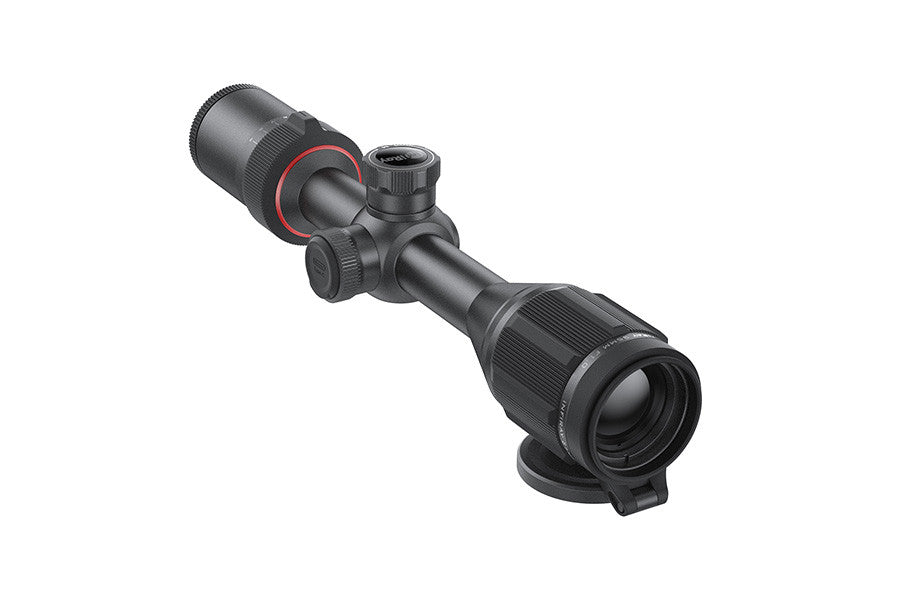

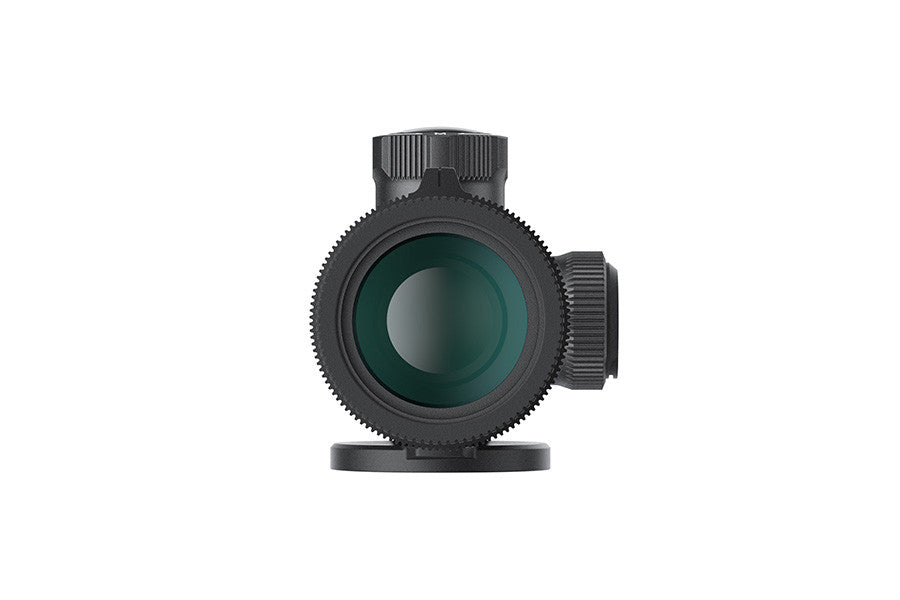

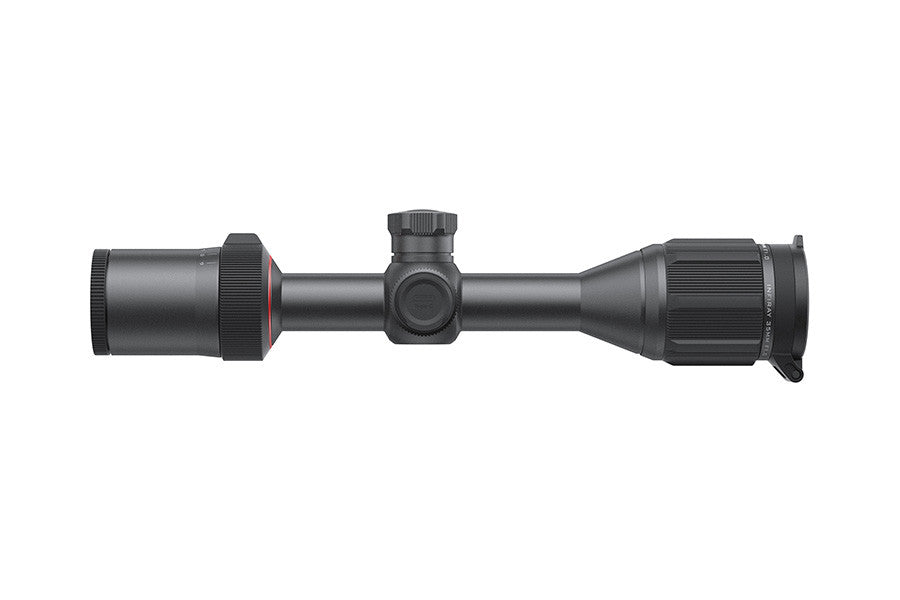

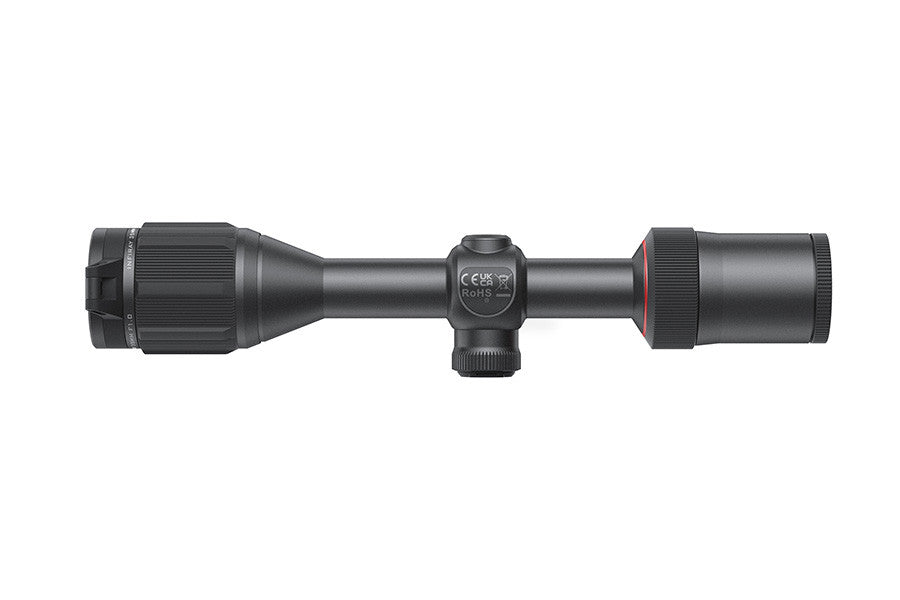

TUBE TP25 SE Thermal Imaging Riflescope by InfiRay
Introducing the latest addition to the InfiRay Tube Series - the TUBE SE. Designed with compact firearms in mind, this lightweight device weighs in at only 720g, making it an ideal choice for those who need to save weight on the go. Whether you're stalking on foot or maneuvering through challenging terrain, the TUBE SE is the perfect companion to help you stay light on your feet. With its zoom ring for adjusting magnification, Bluetooth LRF for precise distance measurement, and intuitive controller, the TUBE SE offers a seamless and convenient experience. Take your stalking game to the next level with the InfiRay TUBE SE - the ultimate tool for hunters who demand the best. Mount any of these to your favourite compact hunting rifle with standard one(1) inch (25.4mm) scope rings or an ADM QD Mount and you're ready to go.
Proposed Uses (TP25 SE);
- Suitable for: Rifle mounting (requires 30mm, Or use the ADM QD Mount)
- Thermal Detection Range = >1300mtrs
- Thermal Identification Range for various sized targets;
- Small (Rabbit) = 50m
- Sml-Med (Fox) = 100m
- Medium (Pig) = 150m
- Med-Lge (Deer) = 250m
Key Features (TP25 SE);
- 256x192 thermal sensor (12um, NETD <30mK)
- 25mm objective lens, 4.0x base magnification
- OLED Display (1536x1080)
- *Optional Laser Rangefinder (bluetooth connection)
- Mount with standard 30mm scope rings
- 1x 18650 internal battery, 3350mAh (+9hrs operating time)
- RECOIL Activated Video, Audio Recording
- 32Gb onboard storage, media recording, WiFi connectivity (InfiRay Outdoor APP)
TUBE SE - Product Specifications;
|
Model |
TP25 SE |
TL25 SE |
TL35 SE |
|
Thermal Sensor
|
256 x 192
|
384 x 288
|
384 x 288
|
|
Objective lens
|
25 | 25 | 35 |
|
Magnification, x
|
4.0x (1x-2.5x digital)
|
2.0x (1x-4x digital)
|
3.0x (1x-3x digital)
|
|
Field of view (HxV), degrees / m @ 100mtrs
|
7.0 x 5.0 | 10.5 x 7.4 | 7.5 x 5.3 |
|
Detection range, m
|
1300
|
1300
|
1800
|
|
Sensor (Thermal)
|
|||
|
Type
|
uncooled vox
|
uncooled vox
|
uncooled vox
|
|
Resolution, pixels
|
256 x 192
|
384 x 288
|
384 x 288
|
|
Pixel Pitch
|
12 um
|
12 um
|
12 um
|
|
NETD
|
<30 mK
|
<25 mK
|
<25 mK
|
|
Frame rate, Hz
|
50
|
50
|
50
|
|
Optics
|
|
|
|
|
Objective lens
|
25 | 25 | 35 |
|
Magnification, x
|
4.0x (1x-2.5x digital)
|
2.0x (4x zoom)
|
3.0x (4x zoom)
|
|
Field of view (HxV), degrees / m @ 100mtrs
|
7.0 x 5.0 | 10.5 x 7.4 | 7.5 x 5.6 |
|
Display
|
|
|
|
|
Resolution, pixels
|
1536 x 1080 AMOLED | 1536 x 1080 AMOLED | 1536 x 1080 AMOLED |
|
Thermal Palettes
|
White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour | White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour | White Hot, Black Hot, Red Hot, Target Highlighting, Pseudo Colour |
|
Range Performance
|
|
|
|
|
Detection range (person), m
|
1300
|
1300
|
1800
|
|
Laser Rangefinder
|
(optional)
|
(optional)
|
(optional)
|
|
Safety class for laser equipment according to IEC 60825-1:2014
|
-
|
-
|
-
|
|
Wavelength, nm
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
900 ∼ 908 (Eye-safe)
650 (Laser pointer)
|
|
Max. measuring range, m
|
1000
|
1000
|
1000
|
|
Measurement accuracy, m
|
+/- 1
|
+/- 1
|
+/- 1
|
|
Min. Measuring Range, m
|
-
|
-
|
-
|
|
Reticle
|
|
|
|
|
Picture in Picture
|
Yes (2x magnified)
|
Yes (2x magnified)
|
Yes (2x magnified)
|
|
Number of preloaded reticles
|
6 (in 4 colours)
|
6 (in 4 colours)
|
6 (in 4 colours)
|
|
Number of Zero Profiles available
|
3
|
3
|
3
|
|
Bluetooth Connection
|
supported
|
supported
|
supported
|
|
Video Recorder
|
Video & Snapshot
(32Gb storage)
+ Audio recording
+ Recoil Activated
|
Video & Snapshot
(32Gb storage)
+ Audio recording
+ Recoil Activated
|
Video & Snapshot
(32Gb storage)
+ Audio recording
+ Recoil Activated
|
|
Environmental Characteristics
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 | IP67 |
|
Power Supply
|
|
|
|
|
Output voltage, V
|
-
|
-
|
-
|
|
Battery type
|
1x 18650 internal (3350mAh) | 1x 18650 internal (3350mAh) | 1x 18650 internal (3350mAh) |
|
Operating time on battery pack (at t=22°C), h *
|
11
|
11
|
11
|
|
External power supply, V
|
5V (USB Type-C)
|
5V (USB Type-C)
|
5V (USB Type-C)
|
|
Connections and Compatibilities
|
|
|
|
|
Max. recoil power on firearm
|
6000 joules | 6000 joules | 6000 joules |
|
Mounting brackets on firearm
|
1" rings (30mm) | 1" rings (25.4mm) | 1" rings (25.4mm) |
|
Weight & Size
|
|
|
|
|
Dimensions, mm
|
310 x 70 x 70 | 310 x 70 x 70 | 310 x 70 x 70 |
|
Weight, kg
|
< 0.720
|
< 0.720
|
< 0.720
|
|
Warranty
|
3 years
|
3 years
|
3 years
|
|
Trade Data
|
|
|
|
|
SKU (Model #)
|
TP25 SE | TL25 SE | TL35 SE |
12um Sensor with NETD ≤25mK
TUBE SE is equipped with the 12um sensor with NETD ≤ 25mK,which is lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.
Easier to Carry
TUBE SE has a body that only weighs 750g which is 28% less compared to the normal 1kg thermal riflescope.
Easier to Use
Zoom Ring
TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope. The zoom ring is made of silicone material, which is soft and comfortable, easy to twist and anti-slip.
Controller Controls Over 90% Functions
Over 90% functions can be completed by the controller of TUBE SE, the operation is simplified and to bring your more convenience during the night.
Easier to Shoot
Bluetooth LRF
TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.
8hrs Working time
The working time of TUBE SE is up to 8 hours to keep your hunting going all night, so you don't need to take the power pack and extra charging accessories.
Built-in Mic
TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.
