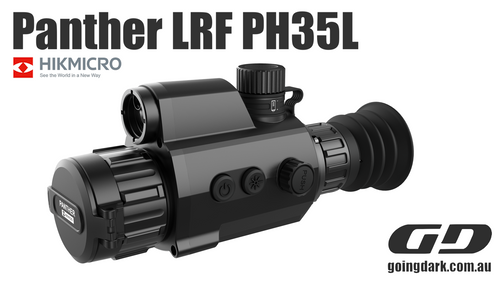

PANTHER LRF PH35L - Thermal Imaging Rangefinding Riflescope by HikMicro
Introducing the PANTHER range of Thermal imaging riflescopes from HikMicro! This rail-mounted riflescope is equipped with an Integrated Infrared Laser Rangefinder for precise measuring of your target (up to 600m). Designed with intuitive controls at your fingertips, this riflescope is a great choice to add to any night hunters outfit. Built to withstand recoil on larger calibres firearms (.375H&H, 12-guage and 9.3x64). The Panther range has (4x) models in it's lign up from the PH35L (384x288 thermal sensor, 35mm lens) right up to the PQ50L (640x512 thermal sensor, 50mm lens).
Proposed Uses (PH35L);
- Suitable for: Rifle mounting (on full picatinny rail)
- Thermal Detection Range = up to 1800mtrs
- Thermal Identification Range for various sized targets;
- Small (Rabbit) = tba
- Sml-Med (Fox) = tba
- Medium (Pig) = tba
- Med-Lge (Deer) = tba
Key Features (PH35L);
- 384x288 thermal sensor (12um, NETD <35mK)
- 35mm objective lens (F1.0), 3.03x base magnification (7.53 x 5.65 FoV)
- 1x 18650 removeable battery (2x included)
- Integrated Laser Rangefinder (up to 600mtrs)
- 16Gb onboard storage, media recording, WiFi connectivity (HikMicro SIGHT APP)
PANTHER LRF Product Specifications;
Model |
PH35L |
PH50L |
PQ35L |
PQ50L |
Thermal Sensor
|
384 x 288
|
384 x 288
|
640 x 512
|
640 x 512
|
Objective lens
|
35 / F1.0 |
50 / F1.0
|
35 / F1.0
|
50 / F1.0
|
Magnification, x
|
3.03x (8x zoom)
|
4.33x (8x zoom) | 1.82x (8x zoom) | 2.6x (8x zoom) |
Field of view (HxV), degrees / m @ 100mtrs
|
7.53 x 5.65 |
5.28 x 3.96
|
12.52 x 10.03
|
8.80 x 7.03
|
Detection range, m
|
1800
|
2600
|
1800
|
2600
|
Sensor (Thermal)
|
||||
Type
|
uncooled FPA
|
uncooled FPA
|
uncooled FPA
|
uncooled FPA
|
Resolution, pixels
|
384 x 288
|
384 x 288
|
640 x 512
|
640 x 512
|
Pixel Pitch
|
12 um
|
12 um
|
12 um
|
12 um
|
NETD
|
<35 mK
|
<35 mK
|
<35 mK
|
<35 mK
|
Frame rate, Hz
|
50
|
50
|
50
|
50
|
Optics
|
|
|
|
|
Objective lens
|
35 / F1.0 |
50 / F1.0
|
35 / F1.0
|
50 / F1.0
|
Magnification, x
|
3.03x (8x zoom)
|
4.33x (8x zoom) | 1.82x (8x zoom) | 2.6x (8x zoom) |
Field of view (HxV), degrees / m @ 100mtrs
|
7.53 x 5.65 |
5.28 x 3.96
|
12.52 x 10.03
|
8.80 x 7.03
|
Display
|
|
|
|
|
Resolution, pixels
|
1024 x 768 OLED (0.39") |
1024 x 768 OLED (0.39")
|
1024 x 768 OLED (0.39")
|
1024 x 768 OLED (0.39")
|
Thermal Palettes
|
Black Hot, White Hot, Red Hot, Fusion |
Black Hot, White Hot, Red Hot, Fusion
|
Black Hot, White Hot, Red Hot, Fusion |
Black Hot, White Hot, Red Hot, Fusion
|
Range Performance
|
|
|
|
|
Detection range (person), m
|
1800
|
2600
|
1800
|
2600
|
Laser Rangefinder
|
|
|
|
|
Safety class for laser equipment according to IEC 60825-1:2014
|
Class 1
|
Class 1
|
Class 1
|
Class 1
|
Wavelength, nm
|
905 nm
|
905 nm
|
905 nm
|
905 nm
|
Max. measuring range, m
|
600 m
|
600 m
|
600 m
|
600 m
|
Measurement accuracy, m
|
±1 m
|
±1 m
|
±1 m
|
±1 m
|
Min. Measuring Range, m
|
10 m
|
10 m
|
10 m
|
10 m
|
Reticle
|
|
|
|
|
Picture in Picture
|
Yes
|
Yes
|
Yes
|
Yes
|
Number of preloaded reticles
|
Yes
|
Yes
|
Yes
|
Yes
|
Number of Zero Profiles available
|
Yes
|
Yes
|
Yes
|
Yes
|
Bluetooth Connection
|
-
|
-
|
-
|
-
|
Video Recorder
|
Video & Snapshot
(16Gb storage)
|
Video & Snapshot
(16Gb storage)
|
Video & Snapshot
(16Gb storage)
|
Video & Snapshot
(16Gb storage)
|
Environmental Characteristics
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67 |
IP67
|
IP67
|
IP67
|
Power Supply
|
|
|
|
|
Output voltage, V
|
-
|
-
|
-
|
-
|
Battery type
|
18650 x1 |
18650 x1
|
18650 x1
|
18650 x1
|
Operating time on battery pack (at t=22°C), h *
|
6
|
6
|
4.5
|
4.5
|
External power supply, V
|
5V (USB Type-C)
|
5V (USB Type-C) |
5V (USB Type-C)
|
5V (USB Type-C)
|
Connections and Compatibilities
|
|
|
|
|
Max. recoil power on firearm
|
750 g/ms (.375H&H - 12g - 9.3x64) |
750 g/ms (.375H&H - 12g - 9.3x64)
|
750 g/ms (.375H&H - 12g - 9.3x64) |
750 g/ms (.375H&H - 12g - 9.3x64)
|
Mounting brackets on firearm
|
picatinny |
picatinny
|
picatinny
|
picatinny
|
Weight & Size
|
|
|
|
|
Dimensions, mm
|
200.38 x 66.32 x 87.10 |
214.10 x 74.30 x 88.71
|
200.38 x 66.32 x 87.10
|
214.10 x 74.30 x 88.71
|
Weight, kg
|
0.52
|
0.59
|
0.52
|
0.59
|
Warranty
|
3 years
|
3 years
|
3 years
|
3 years
|
Trade Data
|
|
|
|
|
SKU (Model #)
|
PH35L |
PH50L
|
PQ35L
|
PQ50L
|
