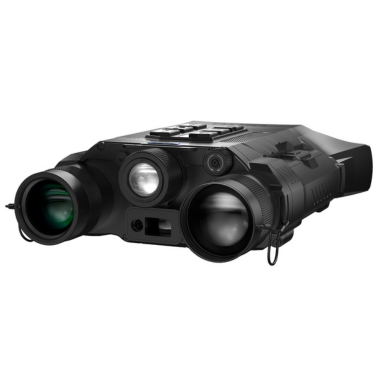

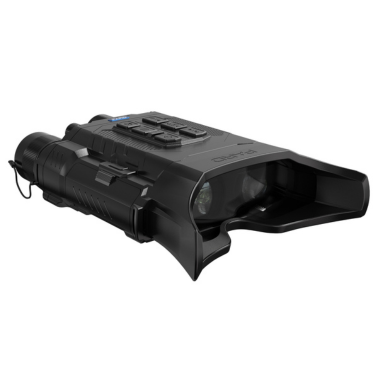

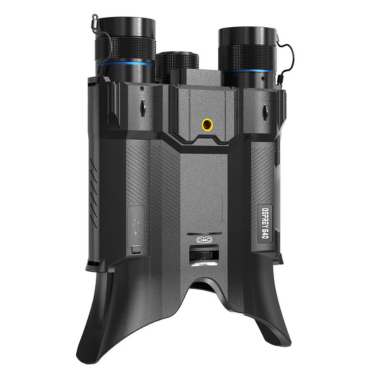

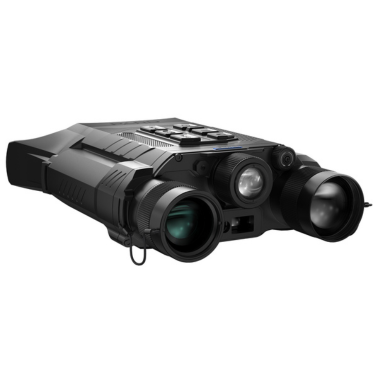

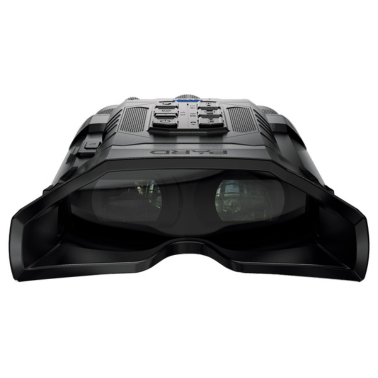

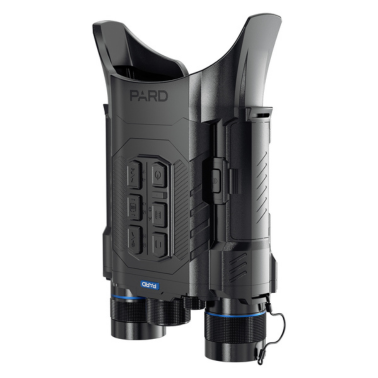

Pard Osprey 480 (35/50mm - 850nm with LRF) Multi-spectral Binocular
Introducing the Osprey 480 Multi-spectral Binocular, perfect for hunting, wildlife observation, and surveillance. Combining thermal imaging and visible light technology, these binoculars provide unmatched clarity in various conditions.
The Osprey 480 features an uncooled VOx thermal sensor with a resolution of 480 x 360 pixels and a 12µm pixel size, offering detection up to 1800 metres. It includes a visible light sensor with a 2688 x 1520 resolution, excelling in low-light with a sensitivity of 0.001 lux.
With a 35mm thermal lens offering 2.4x optical magnification and a 50mm visible light lens providing 3.5x optical magnification, plus digital zoom up to 8x, the binoculars deliver detailed visuals. The LCD display (640 x 480) has various scene and image modes for enhanced visibility.
Features include a gyroscope, electronic compass, picture-in-picture, loop recording, and LRF detection up to 1000 metres. Connectivity includes USB Type-C, HDMI, and WiFi. The Lithium Ion 21700 battery lasts up to six hours, with external Type-C power support. IP67 rated, it operates from -30°C to +55°C and weighs 704.5g.
Key Features (OS4-35/50/850/LRF)
- VOx sensor with 480 x 360 resolution, detecting targets up to 1800m
- Visible Light Sensor: 2688 x 1520 resolution, excelling in low-light with 0.001 lux sensitivity
- 2.4x (35mm thermal lens) and 3.5x (50mm visible light lens) magnification, digital zoom up to 8x
- High-res LCD (640 x 480) with various scene and image modes
- Gyroscope, electronic compass, PIP mode, loop recording, LRF detection up to 1000m
- IR Illuminator: 5W power, three levels, reaching up to 350m
Range Specifications (OS4-35/50/850/LRF)
Model | OS4-35/50/850/LRF | OS4-35/50/940/LRF | OS6-35/50/850/LRF | OS6-35/50/940/LRF | |
Classification | Multi-spectral Binocular | Multi-spectral Binocular | Multi-spectral Binocular | Multi-spectral Binocular | |
Thermal Sensor | |||||
Type | Uncooled Vox (vanadiumoxide) | Uncooled Vox (vanadiumoxide) | Uncooled Vox (vanadium oxide) | Uncooled Vox (vanadium oxide) | |
Resolution(pixel) | 480*360 | 480*360 | 640*512 | 640*512 | |
Pixel Size(µm) | 12*12 | 12*12 | 12*12 | 12*12 | |
NETD(mK) | ≤20mK(0.020℃) | ≤20mK(0.020℃) | ≤20mK(0.020℃) | ≤20mK(0.020℃) | |
Frame rate(Hz) | 50 | 50 | 50 | 50 | |
Detection distance(m) | 1800 | 1800 | 1800 | 1800 | |
Image Engine | Pard IREA | Pard IREA | Pard IREA | Pard IREA | |
Objective lens(mm) | 35 | 35 | 35 | 35 | |
Optical Magnification(x) | 2.4 | 2.4 | 1.8 | 1.8 | |
Digital zoom(x) | 2/4/6/8 | 2/4/6/8 | 2/4/6/8 | 2/4/6/8 | |
Field of view | Horizontal | 9.4° | 9.4° | 12.5° | 12.5° |
Vertical | 7.1° | 7.1° | 10.0° | 10.0° | |
Diagonal | 11.8° | 11.8° | 16.0° | 16.0° | |
Focus range | 3m-∞ | 3m-∞ | 3m-∞ | 3m-∞ | |
Visible Light Sensor | |||||
Resolution(pixel) | 2688*1520 | 2688*1520 | 2688*1520 | 2688*1520 | |
Pixel size(μm) | 2.9 | 2.9 | 2.9 | 2.9 | |
Sensitivity(lux) | 0.001 | 0.001 | 0.001 | 0.001 | |
Frame rate(Hz) | Color:60/Mono:30 | Color:60/Mono:30 | Color:60/Mono:30 | Color:60/Mono:30 | |
Image Engine | PARD VLEA | PARD VLEA | PARD VLEA | PARD VLEA | |
Objective lens(mm) | 50 | 50 | 50 | 50 | |
Optical Magnification(x) | 3.5 | 3.5 | 3.5 | 3.5 | |
Digital zoom(x) | 3-Feb | 3-Feb | 3-Feb | 3-Feb | |
Field of view | Horizontal | 6.4° | 6.4° | 6.4° | 6.4° |
Vertical | 4.8° | 4.8° | 4.8° | 4.8° | |
Diagonal | 8° | 8° | 8° | 8° | |
Focus range | 3m-∞ | 3m-∞ | 3m-∞ | 3m-∞ | |
Display | |||||
Type | LCD | LCD | LCD | LCD | |
Resolution(pixel) | 640*480 | 640*480 | 640*480 | 640*480 | |
Scene Mode(Thermal Channel) | City/Rain/Forest | City/Rain/Forest | City/Rain/Forest | City/Rain/Forest | |
Image mode | WT-HOT/BK- HOT/EDGE/RD-HOT/IN-HOT/SKY/Color/Mono | WT-HOT/BK- HOT/EDGE/RD-HOT/IN-HOT/SKY/Color/Mono | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY/Color/Mono | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY/Color/Mono | |
Eye relief(mm) | 25 | 25 | 25 | 25 | |
Diopter adjustment(D) | -5~3 | -5~3 | -5~3 | -5~3 | |
Photo / Video | |||||
Photo resolution(pixel) |
Thermal: 2048*1536 Night Vision: 2048*1536 |
Thermal: 2048*1536 Night Vision: 2048*1536 |
Thermal: 2048*1536 Night Vision:2048*1536 |
Thermal: 2048*1536 Night Vision:2048*1536 |
|
Photo format | .jpg | .jpg | .jpg | .jpg | |
Video resolution(pixel) | Thermal: 1024*768 Night Vision: 1440*1080 |
Thermal: 1024*768 Night Vision: 1440*1080 |
Thermal: 1024*768 Night Vision: 1440*1080 |
Thermal: 1024*768 Night Vision: 1440*1080 |
|
Video format | .mp4 | .mp4 | .mp4 | .mp4 | |
Storage(GB) | Micro SD card(Max. 128) | Micro SD card(Max. 128) | Micro SD card(Max. 128) | Micro SD card(Max. 128) | |
Main function | |||||
LRF detection range(m/yd) | 1000/1200 | 1000/1200 | 1000/1200 | 1000/1200 | |
PIP | Yes | Yes | Yes | Yes | |
Gyroscope | Yes | Yes | Yes | Yes | |
Loop recording | Yes | Yes | Yes | Yes | |
E-compass | Yes | Yes | Yes | Yes | |
Shutter | Mechanical shutter | Mechanical shutter | Mechanical shutter | Mechanical shutter | |
Microphone | Yes | Yes | Yes | Yes | |
Firmware Upgrade | Yes | Yes | Yes | Yes | |
IR Illuminator | |||||
IR power | 5W | 5W | 5W | 5W | |
IR illuminating level | 3 Levels | 3 Levels | 3 Levels | 3 Levels | |
IR distance(m) | 350 | 350 | 350 | 350 | |
IR Wavelength(nm) | 850 | 940 | 850 | 940 | |
Interfaces | |||||
USB Tpye-C | Yes | Yes | Yes | Yes | |
HDMI Output | Yes | Yes | Yes | Yes | |
WiFi | Yes | Yes | Yes | Yes | |
Supported Apps | PardVision2 | PardVision2 | PardVision2 | PardVision2 | |
Power Supply | |||||
Battery type | Lithium Ion 21700*1 | Lithium Ion 21700*1 | Lithium Ion 21700*1 | Lithium Ion 21700*1 | |
Output voltage(V) | 3.7 | 3.7 | 3.7 | 3.7 | |
Operating time(h) | ≤6 | ≤6 | ≤6 | ≤6 | |
External power supply(V) | Type-C | Type-C | Type-C | Type-C | |
Environmental characteristic | |||||
Degree of protection | IP67 | IP67 | IP67 | IP67 | |
Operating temp(°C/°F) | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | |
Material | |||||
Objective lens | All-glass multi-coated lens | All-glass multi-coated lens | All-glass multi-coated lens | All-glass multi-coated lens | |
Measurement | |||||
Product dimension(with IR, L x W x H, mm) | 220 x 137 x 58 mm | 220 x 137 x 58 mm | 220 x 137 x 58 mm | 220 x 137 x 58 mm | |
N.W/pcs(with LRF&battery, g) | 704.5g | 704.5g | 704.5g | 704.5g |
