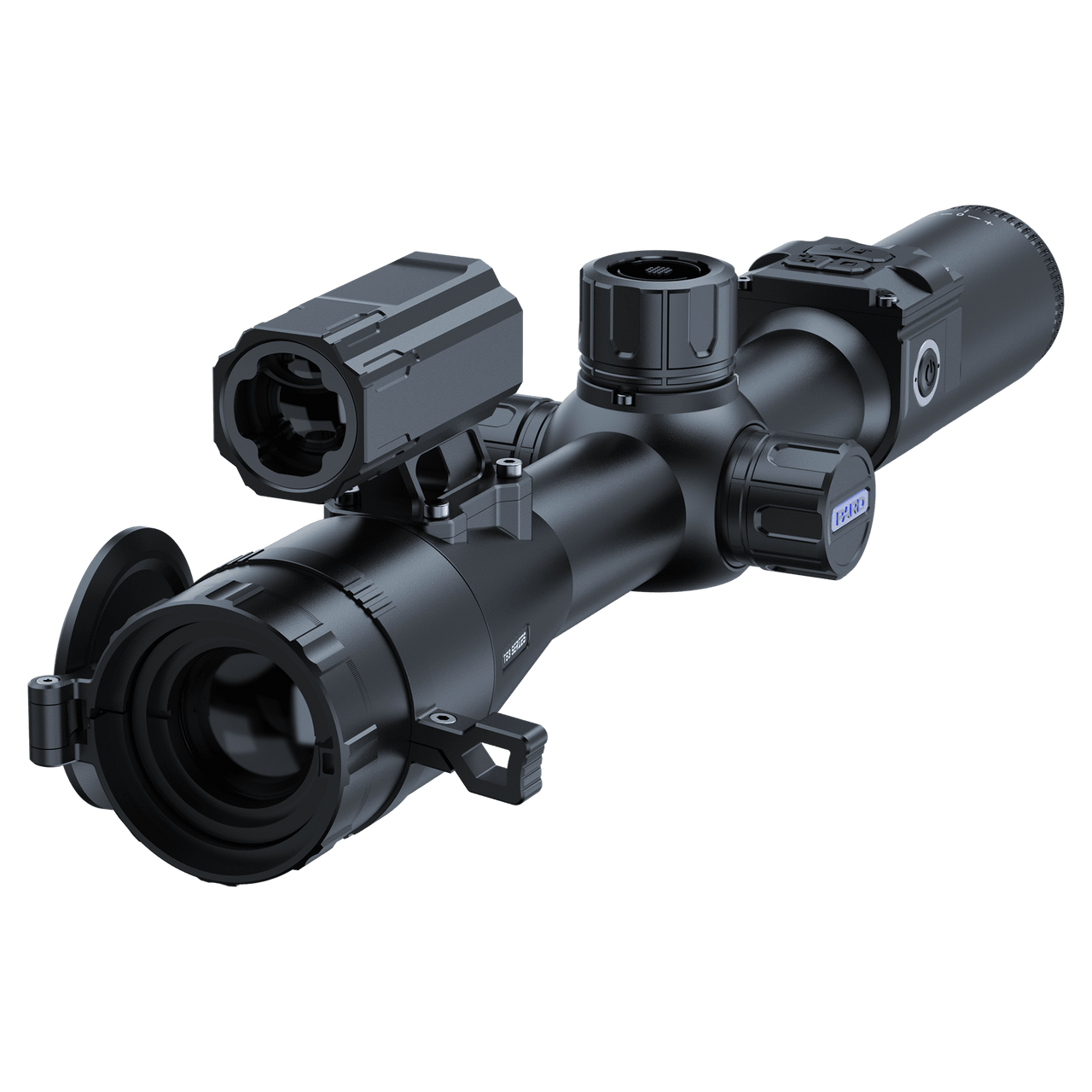

PARD TS34-25LRF Thermal Rangefinding Riflescope

SKU:
TS34-25-LRF
$3,599.00

Free Express Shipping

Description

PARD TS34-25-LRF Thermal Rangefinding Riflescope with Laser Range Finder

Key Features

  • Long Eye-relief: Ensures comfortable viewing with 100mm eye relief and a wide field of view.
  • Clear 800*800 IPS Display: Provides sharp thermal imaging with picture-in-picture (PIP) function.
  • Circular Scope Design: Offers a comprehensive view with a wide field of view (FOV).
  • High Sensitivity 12µm LWIR Sensor: Delivers striking contrast and resolution for target acquisition.
  • Integrated Ballistic Calculator: Improves shooting accuracy by calculating precise bullet trajectory parameters.
  • Versatile Objective Lens: Options of 19/25/35/45mm lenses to suit different hunting environments.
  • Advanced IREA: Enhances image visibility and reduces image distortion.
  • Recoil-activated Recording: Automatically records shooting process when detecting recoil.
  • Intuitive Control Knob: Allows quick switching between different functions.
  • WiFi Connectivity: Enables image and video transfer on the go via phone, PC, or tablet.
  • Easy Firmware Upgrade: Allows intuitive and convenient firmware updates at home with a TF card.
  • Durable 18650 Li-ion Battery: Offers up to 5 hours of operation depending on usage.
  • HDMI and USB Type-C: Provides versatile connection options.
  • IP67 Waterproof: Ensures reliable performance in harsh outdoor environments.
  • Smooth Focus with Lens Lever: Provides smooth and precise focus for improved target acquisition.
  • Flexible Display Options: Offers 6 reticle styles and 4 reticle colors, with easy return to zero functionality.

Optimal Viewing Comfort with Long Eye-relief

Offering lens options each featuring 100mm eye relief and an expansive field of view, the TS34 and TS36 series assures a comfortable viewing experience. The rubber eyepiece ensures discreet observation at night, maintaining the user's familiarity with traditional daytime optic usage.

Exceptionally Clear 800*800 IPS Display

Thermal imaging is brought to life on the ultra-clear IPS display, boasting an 800*800 resolution. The innovative picture-in-picture (PIP) function provides a sharp heat signature, significantly enhancing eye observation comfort.


Unique Circular Scope Design

The scope's circular display design facilitates a holistic view of the image. Combined with a wide field of view (FOV), it helps you to intuitively understand the target's position relative to the environment.

Ultra-Sensitive 12µm LWIR Sensor

The TS34 and TS36 series are equipped with a 384×288 pixel or 640*480 pixel 12μm vanadium oxide (VOx) sensor. With an NETD of ≤25mK and 12µm pixel pitch, users can enjoy striking contrast and high resolution when locating targets.

Versatile Objective Lens Options

Choose from 19/25/35/45mm optical objective lenses to cater to your hunting environment. The wider the field of view, the broader your perspective; the narrower the field of view, the greater your viewing distance.

Advanced Infrared Image Enhancement Algorithm (IREA)

The TS3x series employs our proprietary software and a superior image enhancement algorithm for heightened infrared spectrum sensitivity, enhancing image visibility. The IREA ensures an enriched image with reduced distortion and greater detail, even for distant targets.

Automatic Recoil-activated Recording

The device automatically records the shooting process in 20-second intervals upon detecting recoil, allowing you to effortlessly capture that perfect hunting moment.

User-friendly Control Knob

The multi-function control knob enables quick and easy switching between functions within seconds.



WiFi Connectivity

Built-in WiFi allows connection to your phone, PC, or tablet for use as an external viewfinder, enabling instant image and video transfer on the go.



Effortless Firmware Upgrade

With our intuitive and convenient firmware update process, you can easily keep your device up to date with the latest firmware using a TF card at home.



Long-lasting 18650 Li-ion Battery

Powered by a 18650 Li-ion battery, the device offers up to 5 hours of operation depending on usage, ensuring you'll never run out of power during a hunting trip.



Seamless Connection

Equipped with an HDMI output and USB Type-C power supply for versatile connectivity.



IP67 Waterproof for Reliable Performance

With an IP67 waterproof rating, the TS32 and TS36 series deliver dependable performance in a variety of harsh outdoor environments, including wet and moist weather conditions and snow.



Smooth Focus with Lens Lever

The manual focus lever provides a smooth, precise, and gentle focus, enhancing target acquisition with its excellent design.



Flexible Display Options

Choose from 6 different reticle styles and 4 different reticle colors. After centering the crosshair, the device returns to zero, with options for centering left and right.

PARD Thermal Riflescope Product Specifications;

MODEL

TS34-25 (LRF)

TS34-35 (LRF)

TS34-45 (LRF)

TS36-25 (LRF)

TS36-35 (LRF)

TS36-45 (LRF)

Thermal Sensor
384 x 288
384 x 288
384 x 288
640 x 512
640 x 512
640 x 512
Objective lens
25mm
35mm
45mm
25mm
35mm
45mm
Magnification, x
2.6x (4x zoom) 3.7x (6x zoom) 4.7x (8x zoom) 1.6x (4x zoom) 2.8x (4x zoom) 3.5x (4x zoom)
Field of view (Horizontal), degrees
7.9° 5.6°  4.4° 13.1° 9.4° 7.3°
Detection range (person), m
1100
1400
1700
1200
1500
1800
  Sensor (Thermal)

Type
uncooled VOx
uncooled VOx
uncooled VOx
uncooled VOx
uncooled VOx
uncooled VOx
Resolution, pixels
384 x 288
384 x 288
384 x 288
640 x 512
640 x 512
640 x 512
Pixel Pitch
12 um
12 um
12 um
12 um
12 um
12 um
NETD
<25 mK
<25 mK
<25 mK
<25 mK
<25 mK
<25 mK
Frame rate, Hz
50
50
50
50
50
50
  Optics






Objective lens
25mm
35mm
45mm
25mm
35mm
45mm
Magnification, x
2.6x (4x zoom) 3.7x (6x zoom) 4.7x (8x zoom) 1.6x (4x zoom) 2.2x (6x zoom) 2.8x (8x zoom)
Field of view (Horizontal), degrees
7.9° 5.6°  4.4° 13.1°  9.4° 7.3°
  Display






Resolution, pixels
800x800 IPS LCD
800x800 IPS LCD
800x800 IPS LCD
800x800 IPS LCD
800x800 IPS LCD
800x800 IPS LCD
Thermal Palettes
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
  Range Performance






Detection range (person), m
1100
1400
1700
1200
1500
1800
Detection range (vehicle), m
2200
2600
3000
2500
2900
3300
  Laser Rangefinder
(optional LRF)
(optional LRF)
(optional LRF)
(optional LRF)
(optional LRF)
(optional LRF)
Safety class for laser equipment according to IEC 60825-1:2014
-
-
-
-
-
-
Wavelength, nm
-
-
-
-
-
-
Max. measuring range, m
1000
1000
1000
1000
1000
1000
Measurement accuracy, m
±1
±1
±1
±1
±1
±1
Min. Measuring Range, m
-
-
-
-
-
-
  Laser Pointer (red optical)
Yes
Yes
Yes
Yes
Yes
Yes
  Reticle






Picture in Picture
Yes
Yes
Yes
Yes
Yes
Yes
Number of preloaded reticles
6 (4 colours)
6 (4 colours)
6 (4 colours)
6 (4 colours)
6 (4 colours)
6 (4 colours)
Number of Zero Profiles available
tba
tba
tba
tba
tba
tba
  WiFi Connection
Yes (Roadcam App)
Yes (Roadcam App)
Yes (Roadcam App)
Yes (Roadcam App)
Yes (Roadcam App)
Yes (Roadcam App)
  Video Recorder
Micro SD Card
(Max. 128Gb storage)
Micro SD Card
(Max. 128Gb storage)
Micro SD Card
(Max. 128Gb storage)
Micro SD Card
(Max. 128Gb storage)
Micro SD Card
(Max. 128Gb storage)
Micro SD Card
(Max. 128Gb storage)
HDMI Output
Yes
Yes
Yes
Yes
Yes
Yes
Microphone
Yes
Yes
Yes
Yes
Yes
Yes
Recoil-Activated Video Recording
Yes
Yes
Yes
Yes
Yes
Yes
Loop Recording
Yes
Yes
Yes
Yes
Yes
Yes
  Other Functions






Ballistic Calculator
Yes
Yes
Yes
Yes
Yes
Yes
Gyroscope
Yes
Yes
Yes
Yes
Yes
Yes
E-compass
Yes
Yes
Yes
Yes
Yes
Yes
  Environmental Characteristics






Degree of protection, IP code (IEC60529)
IP67
IP67
IP67
IP67
IP67
IP67
  Power Supply






Output voltage, V
-
-
-
-
-
-
Battery type
18650 x1
18650 x1
18650 x1
18650 x1
18650 x1
18650 x1
Operating time on battery pack (at t=22°C), h *
5
5
5
5
5
5
External power supply, V
5V (USB Type-C)
5V (USB Type-C)
5V (USB Type-C)
5V (USB Type-C)
5V (USB Type-C)
5V (USB Type-C)
  Connections and Compatibilities






Max. recoil power on firearm
1000G 1000G 1000G 1000G 1000G 1000G
Mounting brackets on firearm
picatinny picatinny picatinny picatinny picatinny picatinny
  Weight & Size






Dimensions, mm
350x88x95(without long eyepiece)
410x88x95 (with long eyepiece)
350x88x95(without long eyepiece)
410x88x95 (with long eyepiece)
350x88x95(without long eyepiece)
410x88x95 (with long eyepiece)
350x88x95(without long eyepiece)
410x88x95 (with long eyepiece)
350x88x95(without long eyepiece)
410x88x95 (with long eyepiece)
350x88x95(without long eyepiece)
410x88x95 (with long eyepiece)
Weight, kg
0.68 (without LRF)
0.73 (With LRF)
0.68 (without LRF)
0.73 (With LRF)
0.68 (without LRF)
0.73 (With LRF)
0.68 (without LRF)
0.73 (With LRF)
0.68 (without LRF)
0.73 (With LRF)
0.68 (without LRF)
0.73 (With LRF)
  Warranty
3 years
3 years
3 years
3 years
3 years
3 years
  Trade Data






SKU (Model #)
TS32-25(-LRF)
TS32-35(-LRF)
TS32-45(-LRF)
TS62-25(-LRF)
TS62-35(-LRF)
TS62-45(-LRF)







Extra Information

Brand:
PARD
