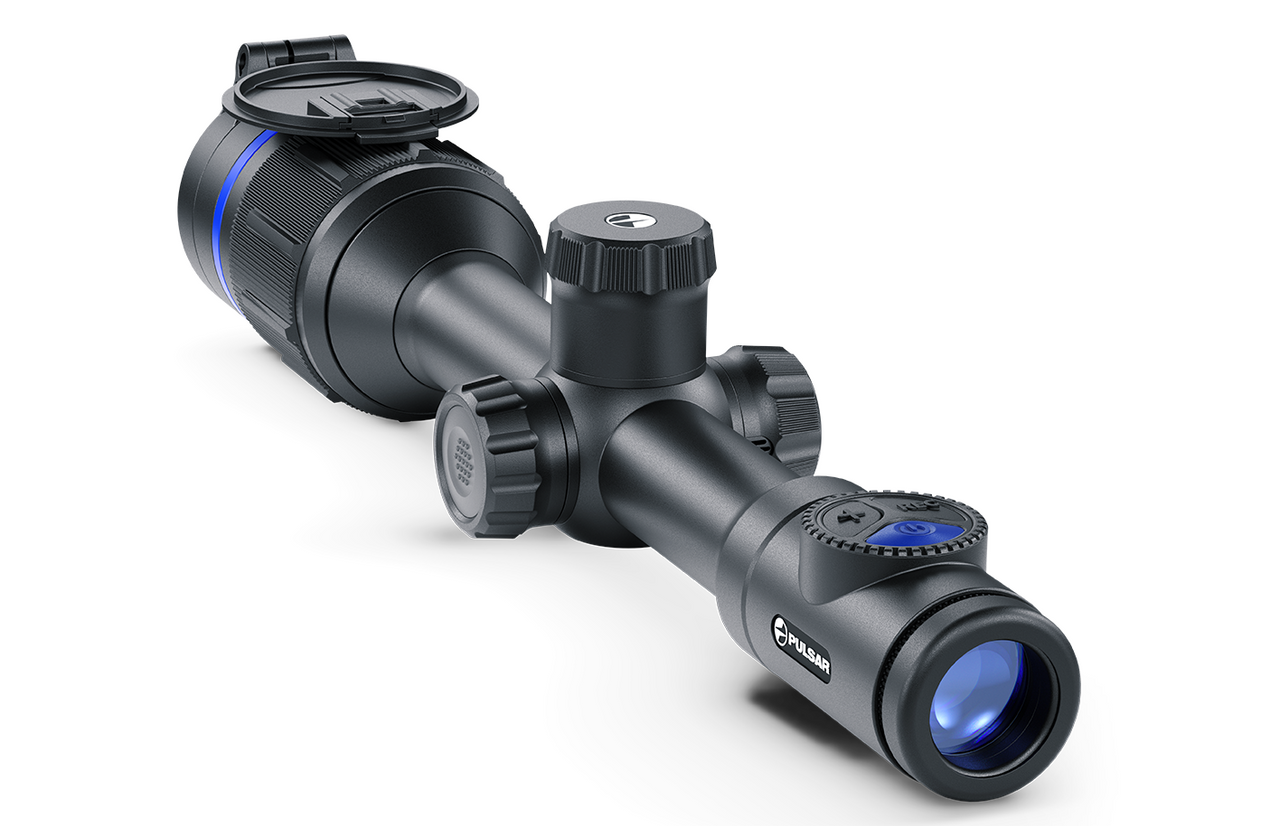

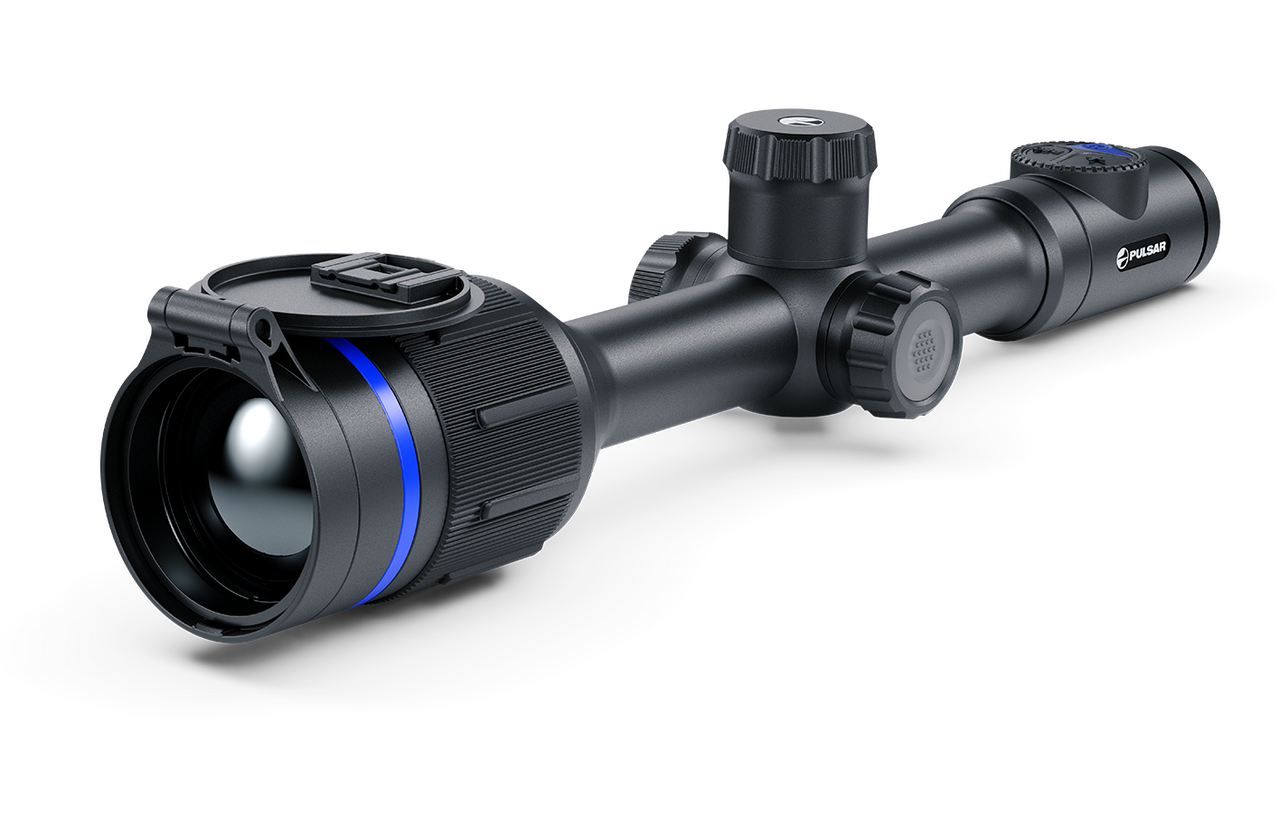

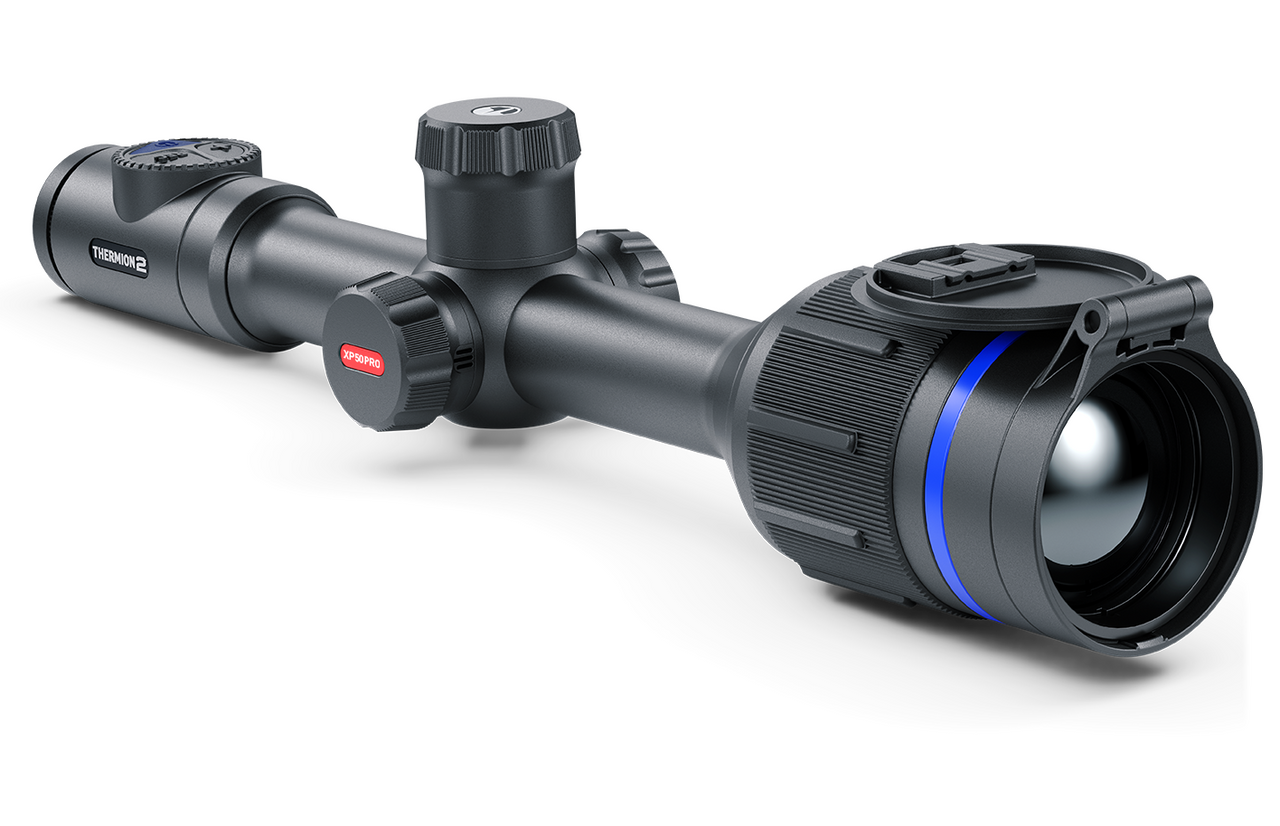

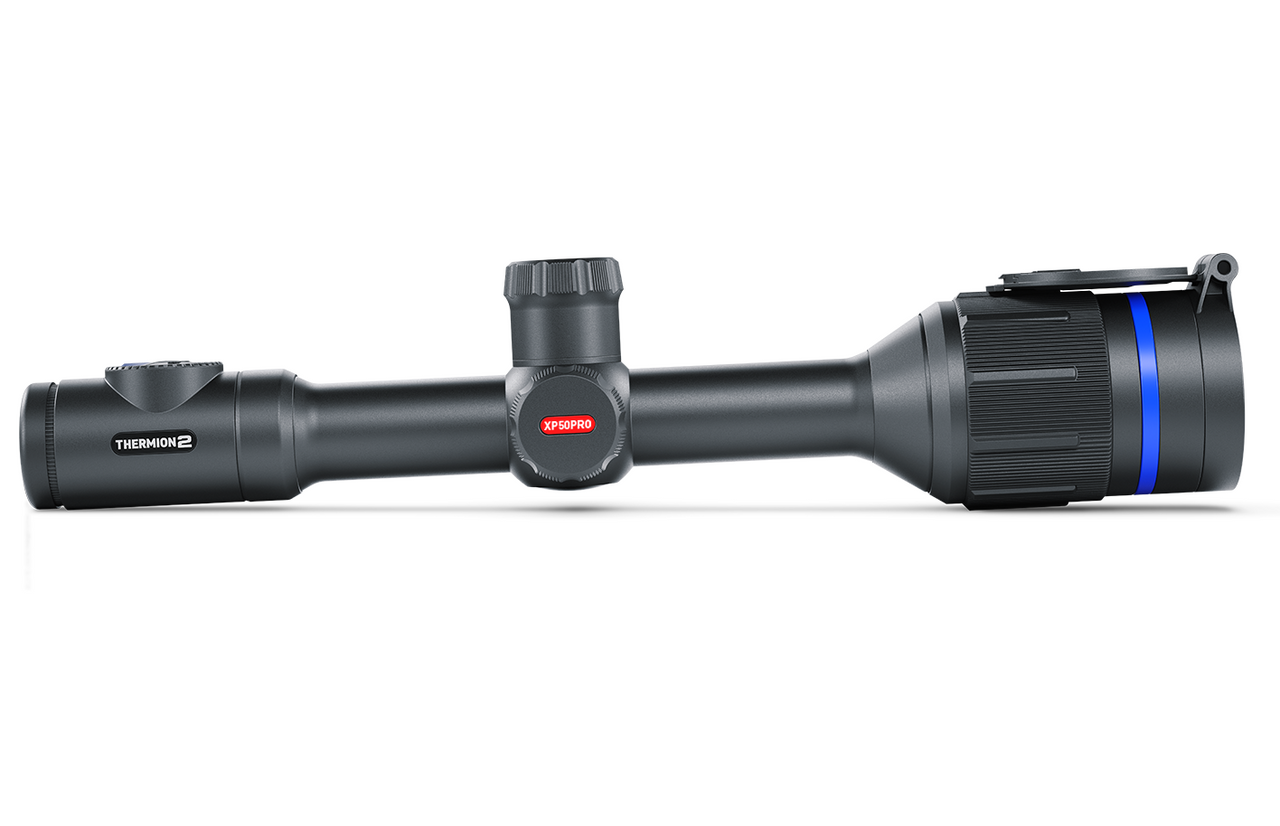

Pulsar THERMION 2 XQ35 Pro Thermal Imaging Riflescope
The Thermion Range has been Pulsar's Flagship riflescope since it's introduction to the market as the first traditional day scope shaped thermal imaging riflescope. Thermion 2 is now a PRO class unit with exceptional image quality from the upgrade specifications and high build quality Pulsar is known for. Easily mount with 30mm rings (or ADM Recon mount) for ease of transfer between multiple platforms. Sub 25mK NETD rating gives you perfect detail recognition even in the roughest of weather with low thermal contrast. The smallest of temperature differences are clearly visable during fog, light rainfall or cold mornings when thermal imaging can be difficult.
Proposed Uses (XQ35 Pro);
- Suitable for: Rifle mounting (30mm rings typically)
- Thermal Detection Range = up to 1350mtrs
- Thermal Identification Range for various sized targets;
- Small (Rabbit) = 100m
- Sml-Med (Fox) = 175m
- Medium (Pig) = 200m
- Med-Lge (Deer) = 300m
Key Features (XQ35 Pro);
- 384x288 thermal sensor (17um, NETD <25mK)
- 35mm objective lens (F1.0), 2.5x base magnification (10.7 Horiz. FoV)
- AMOLED display (1024x768),
- 1x APS2 removeable battery, Internal Li-ion battery (over 5hrs runtime)
- 16Gb onboard storage, media recording (w/Audio), WiFi connectivity (Stream Vision 2 App)
Thermion 2 Specifications;
| Main |
Thermion 2 XP50 Pro
|
Thermion 2 XQ50 Pro
|
Thermion 2 XQ35 Pro
|
Thermion 2 XG50
|
|
Sensor
|
640x480 pix. @ 17 µm (NETD <25 mK)
|
384x288 pix. @ 17 µm (NETD <25 mK)
|
384x288 pix. @ 17 µm (NETD <25 mK)
|
640x480 @ 12 µm (NETD <40 mK)
|
|
Objective lens
|
F50 F/1.0
|
F50 F/1.0
|
F35 F/1.0
|
F50 / 1.0
|
|
Magnification, x
|
2-16
|
3-12
|
2.5-10
|
3 – 24
|
|
Field of view (HxV), degrees / m@100m
|
12.4/21.8
|
7.5/13.1
|
10.7/18.7
|
8.8x6.6 / 15.4x11.5
|
|
Detection range, m (thermal)
|
1800
|
1800
|
1350
|
2300
|
|
Sensor
|
|
|
|
|
|
Type
|
uncooled
|
uncooled
|
uncooled
|
uncooled
|
|
Resolution, pixels
|
640x480
|
384x288
|
384x288
|
640x480
|
|
Pixel pitch, µm
|
17
|
17
|
17
|
12
|
|
NETD, mK
|
<25
|
<25
|
<25
|
<40
|
|
Frame rate, Hz
|
50
|
50
|
50
|
50
|
|
Optics
|
|
|
|
|
|
Objective lens
|
F50 F/1.0
|
F50 F/1.0
|
F35 F/1.0
|
F50 / 1.0
|
|
Magnification, x
|
2-16 (x4 zoom)
|
3-12
|
2.5-10
|
3 – 24
|
|
Field of view (HxV), degrees / m @ 100 m
|
12.4/21.8
|
7.5/13.1
|
10.7/18.7
|
8.8x6.6 / 15.4x11.5
|
|
Eye relief, mm
|
50
|
50
|
50
|
50
|
|
Display
|
|
|
|
|
|
Type
|
AMOLED
|
AMOLED
|
AMOLED
|
AMOLED
|
|
Resolution, pixels
|
1024х768
|
1024x768
|
1024х768
|
1024х768
|
|
Range Performance
|
|
|
|
|
|
Detection range, m (thermal)
|
1800
|
1800
|
1350
|
2300
|
|
Laser Rangefinder
|
|
|
|
|
|
Safety Class for laser equipment according IEC 60825-1:2014
|
|
|
|
|
|
Wavelength, nm
|
|
|
|
|
|
Max. measuring range, m
|
|
|
|
|
|
Measurement Accuracy, m
|
|
|
|
|
|
Reticle
|
|
|
|
|
|
Click value, H/V, mm at 100 m
|
21 – 2х, 10.5 – 4х, 5.25 – 8х, 2.6 – 16х
|
13 – 3x, 6.5 – 6x, 3.25 – 12x
|
18 – 2.5x, 9 – 5x, 4.5 – 10x
|
15 – 3х, 7.5 – 6х, 3.75 – 12х, 1.86 – 24x
|
|
Click range, H/V, mm at 100 m
|
4200/4200
|
2600/2600
|
3600/3600
|
3000 / 3000
|
|
Number of preloaded reticles
|
10
|
10
|
10
|
10
|
|
Video Recorder
|
|
|
|
|
|
Video / photo resolution, pixel
|
1024х768
|
1024х768
|
1024x768
|
1024x768
|
|
Video / photo format
|
.mp4 / .jpg
|
.mp4 / .jpg
|
.mp4 / .jpg
|
.mp4 / .jpg
|
|
Built-in memory, Gb
|
16
|
16
|
16
|
16
|
|
Wi-Fi
|
|
|
|
|
|
Wireless Protocol
|
Wi-Fi
|
Wi-Fi
|
Wi-Fi
|
Wi-Fi
|
|
Wireless Standard
|
802.11 b/g/n/ac
|
802.11 b/g/n/ac
|
802.11 b/g/n/ac
|
IEEE 802.11 b/g/n/ac (WPA)
|
|
Frequency, GHz
|
2.4 / 5 GHz
|
2.4 / 5 GHz
|
2.4 / 5 GHz
|
2.4 / 5
|
|
Environmental Characteristics
|
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IPX7
|
IPX7
|
IPX7
|
IPX7
|
|
Operating temperature range, °C
|
-25 – +50
|
-25 – +50
|
-25 – +50
|
-25 – +50
|
|
Connections and Compatibilities
|
|
|
|
|
|
Max. recoil power on rifled weapon (Eo), Joules
|
6000
|
6000
|
6000
|
6000
|
|
Shock resistance on the smooth-bore rifles, caliber
|
12
|
12
|
12
|
12
|
|
Mounting brackets on weapon
|
Standard 30 mm rings
|
Standard 30 mm rings
|
Standard 30 mm rings
|
Standard 30 mm rings
|
|
Supported Appplication
|
Stream Vision 2
|
Stream Vision 2
|
Stream Vision 2
|
Stream Vision 2
|
|
Power Supply
|
|
|
|
|
|
Output voltage, V
|
3.0 – 4.2
|
3.0–4.2
|
3.0–4.2
|
3.7
|
|
Battery type
|
Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)
|
Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)
|
Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)
|
Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
|
|
Capacity, mAh
|
2000 (external) + 3200 (external)* + 4900 (internal)
|
2000 (external) + 3200 (external)* + 4900 (internal)
|
2000 (external) + 3200 (external)* + 4900 (internal)
|
2000 (external) + 4900 (internal)
|
|
Operating time on battery pack (at t=22°C), h *
|
10
|
10
|
10
|
9
|
|
External power supply, V
|
5 V, 9 V (USB Type-C Power Delivery)
|
5 V, 9 V (USB Type-C Power Delivery
|
5 V, 9 V (USB Type-C Power Delivery)
|
5 V, 9 V (USB Type-C Power Delivery)
|
|
Weight & Size
|
|
|
|
|
| Body Material | Metal | Metal |
Metal
|
Aluminum alloy
|
|
Dimensions mm
|
412x78x83
|
412x78x8
|
399х78х80
|
412x78x83
|
|
Weight kg
|
0.9
|
0.9
|
0,88
|
0.9
|
|
Warranty
|
|
|
|
|
|
Warranty on Device, years
|
|
|
|
|
|
Warranty on Batteries, years
|
|
|
|
|
|
Trade Data
|
|
|
|
|
|
SKU (Model #)
|
76547
|
76548
|
76541
|
76549
|
Optoelectronic Devices & Batteries Compatibility Chart
Extra Information
Warranty Information
Pulsar Products have a 3 year warranty with the exception of Pulsar batteries which have a warranty of 1 year from purchase.
