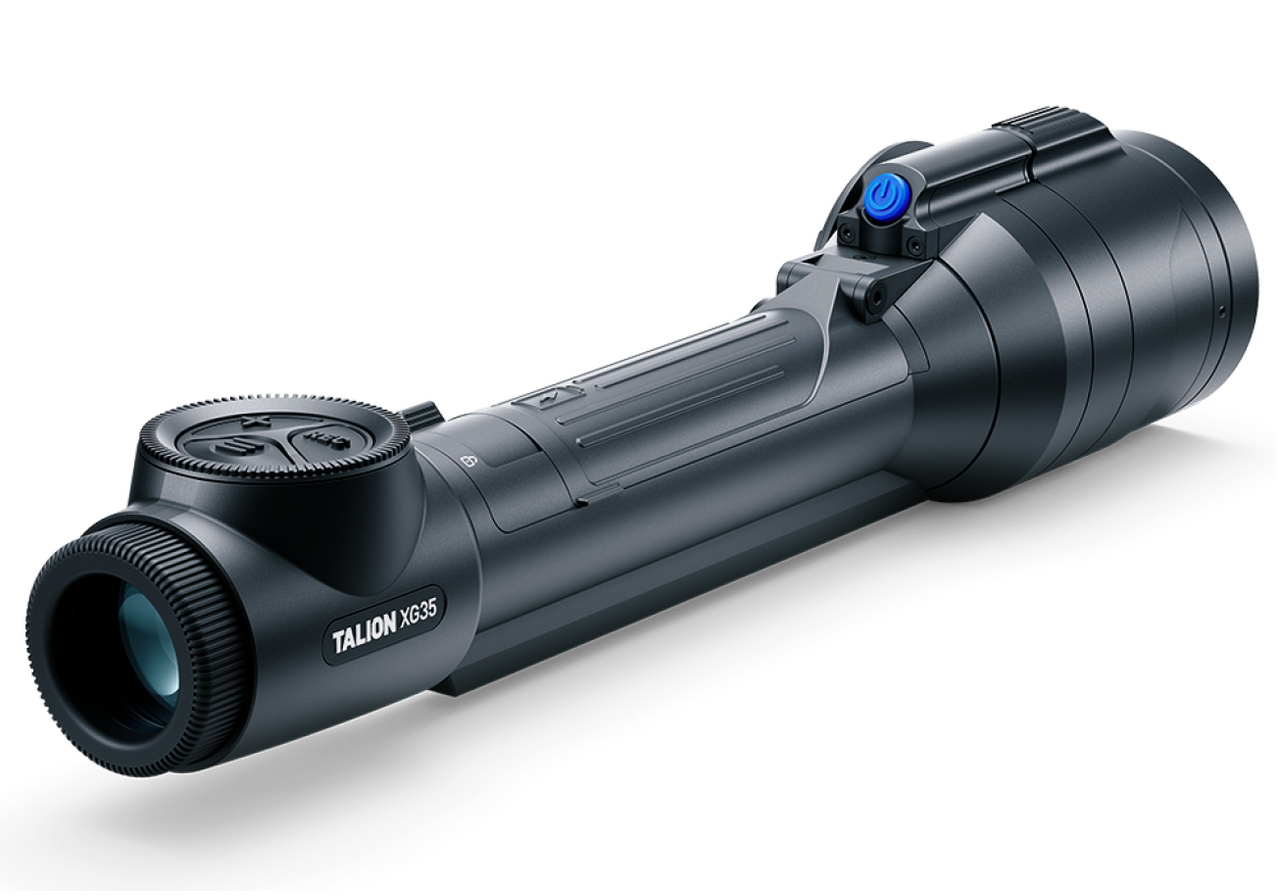

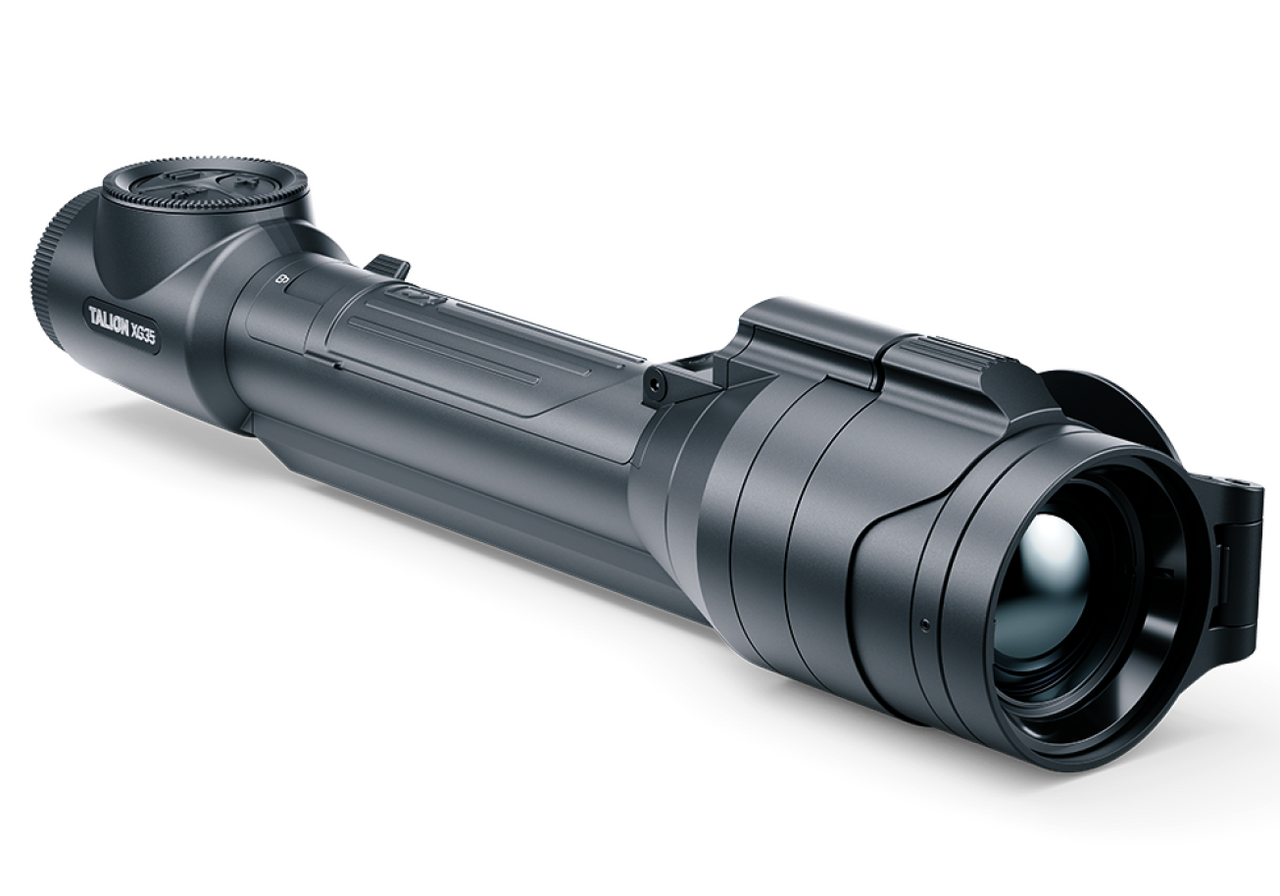

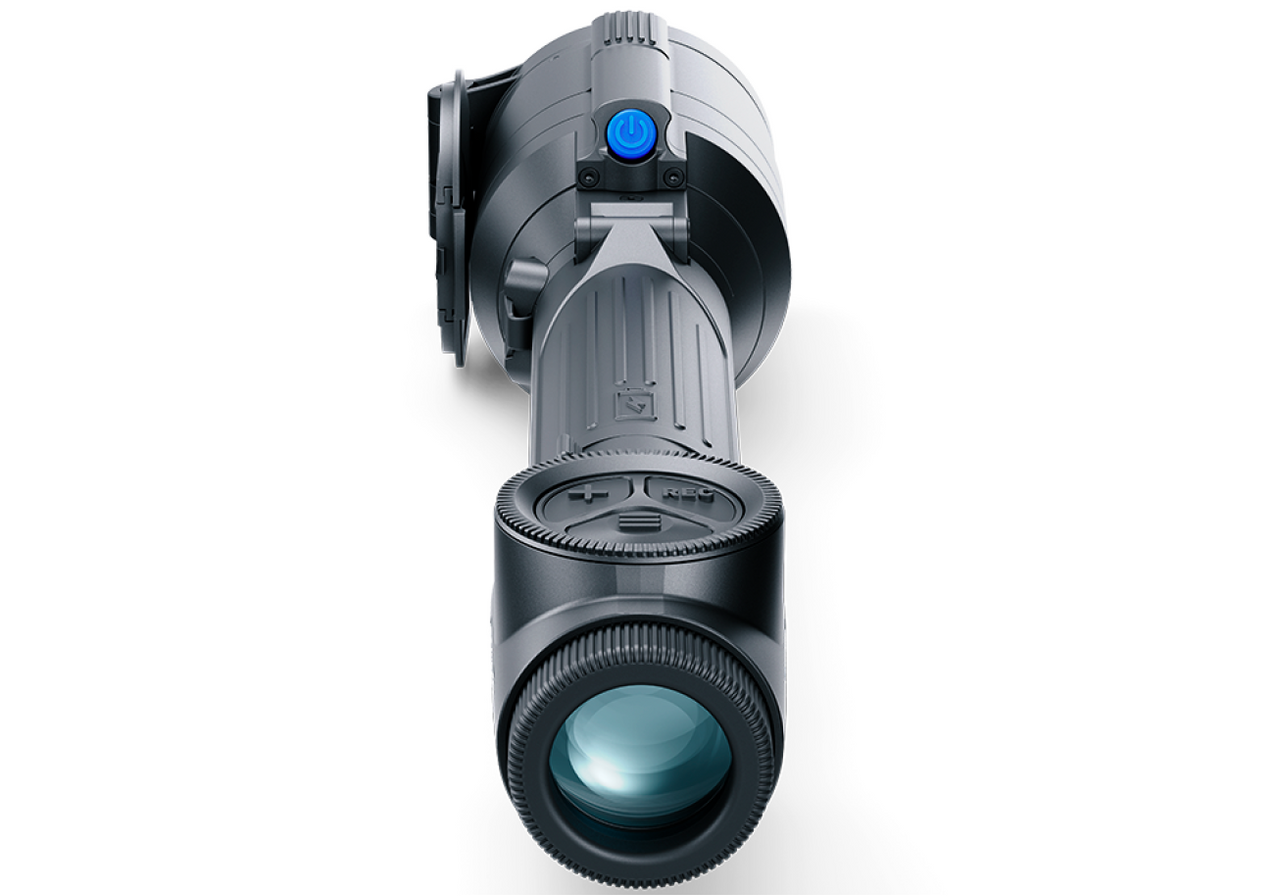

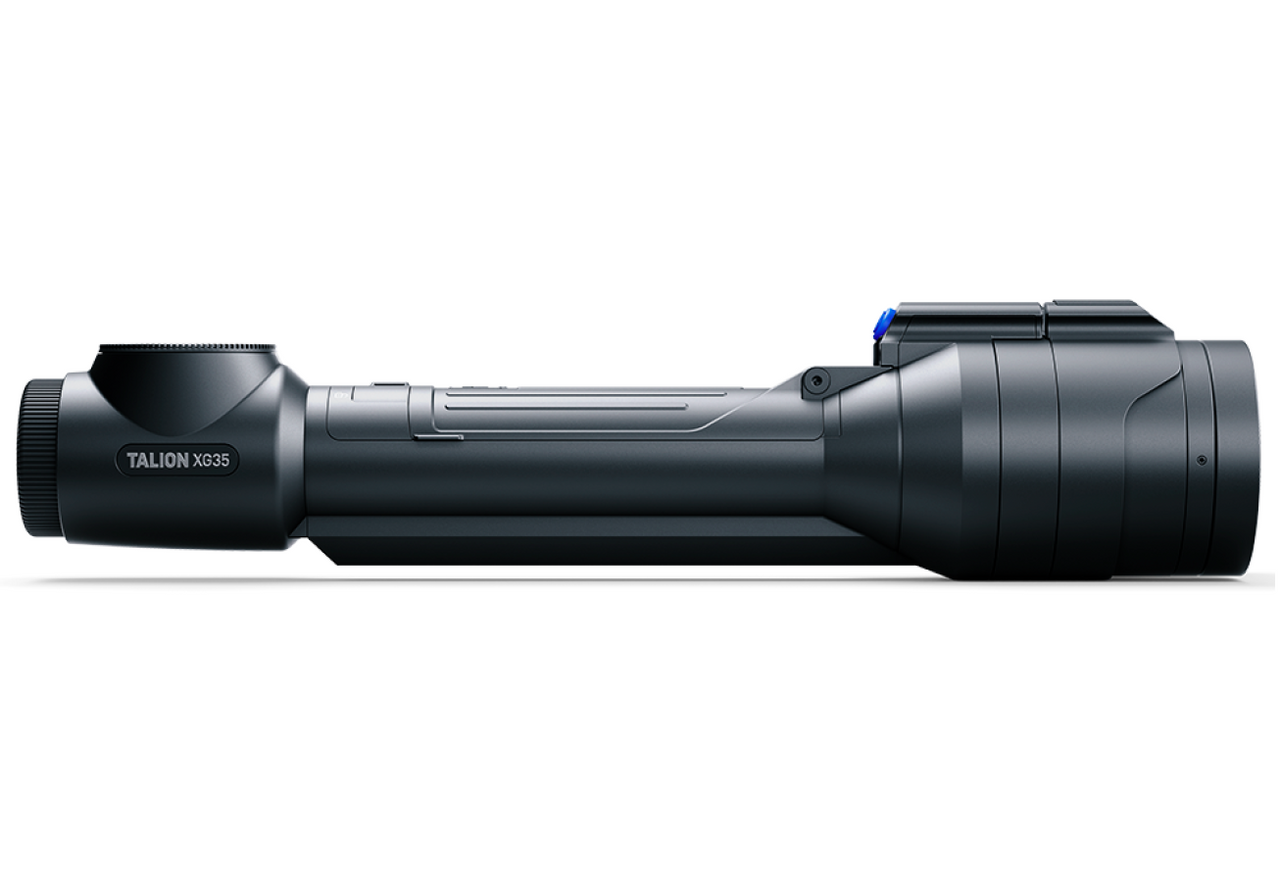

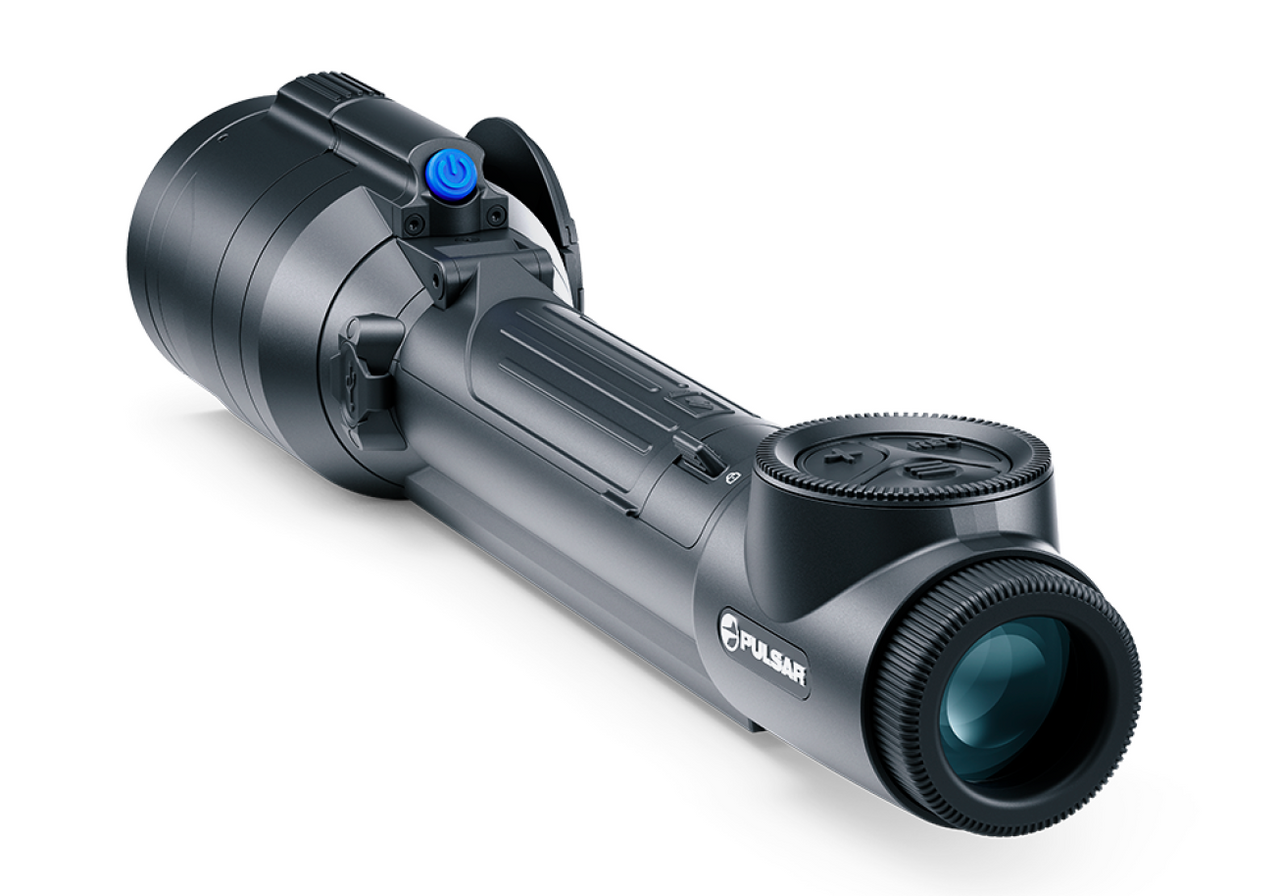

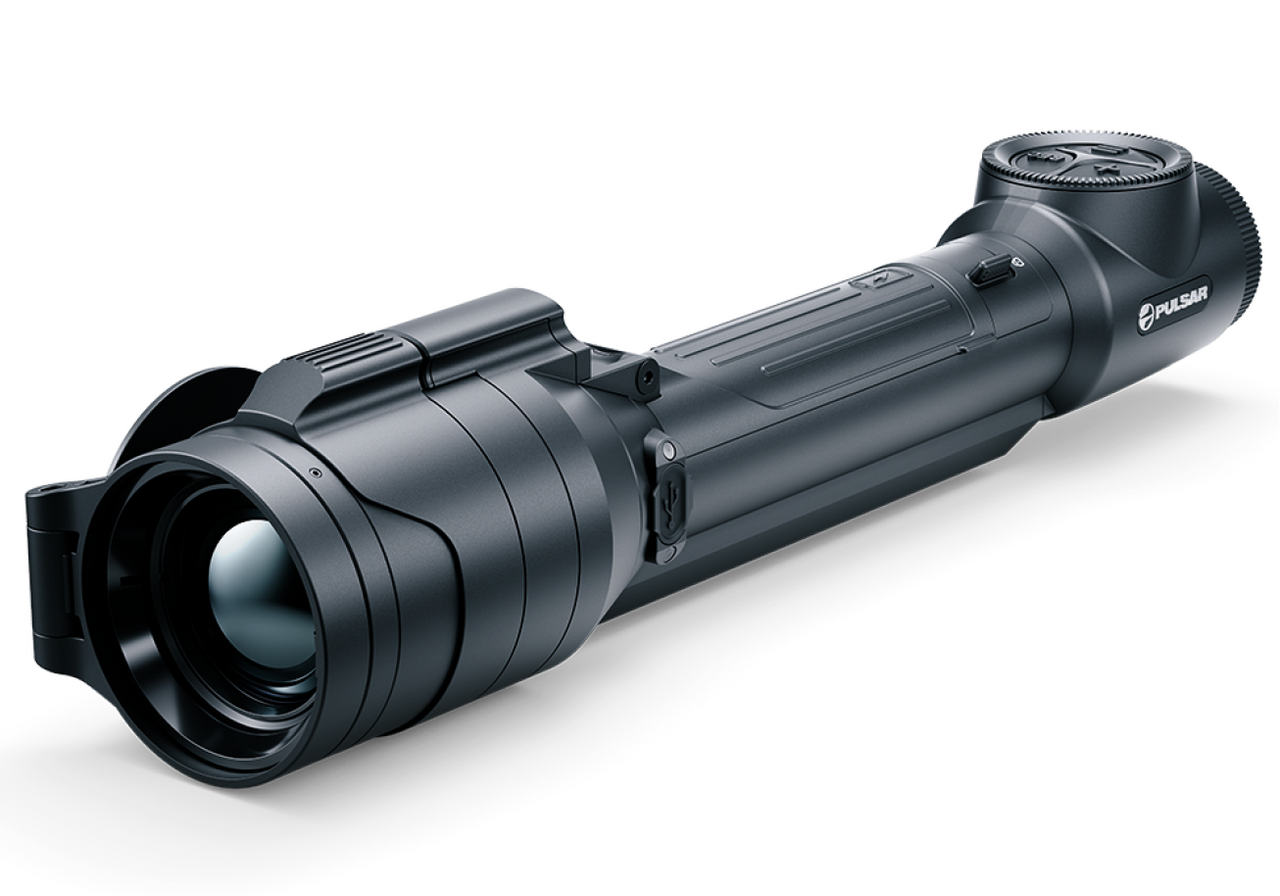

TALION XG35 Compact Thermal Imaging Riflescope - Pulsar
The New thermal scope from Pulsar is aimed at hunters / shootings who are wanting to get into night hunting, and are looking for a product with a quality name behind it. Introducing the Talion range of thermal imaging scopes. Pulsar quality without breaking the bank!
Key Features (XG Model);
- 640x480 sensor (12µm, NETD <50mK), 1750mtr Detection Range
- 35mm Objective Lens (F35 F/1.0), 2.0x Base Magnification (12.5° FoV)
- 1x APS5 Battery
- Multi-Point Rail Mounting System
- Functionality (WiFi Connectivity, On-board Media Recording)

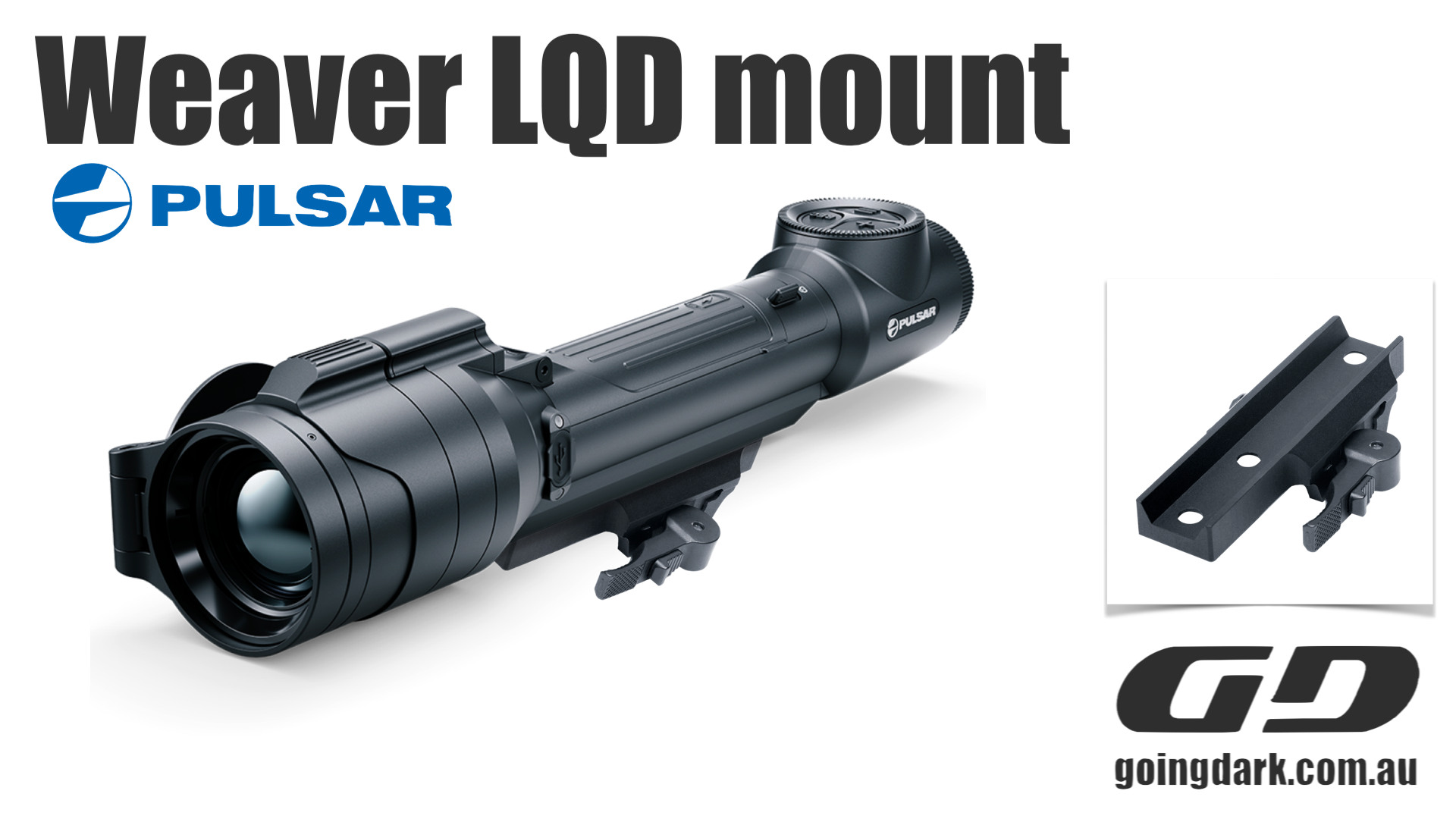

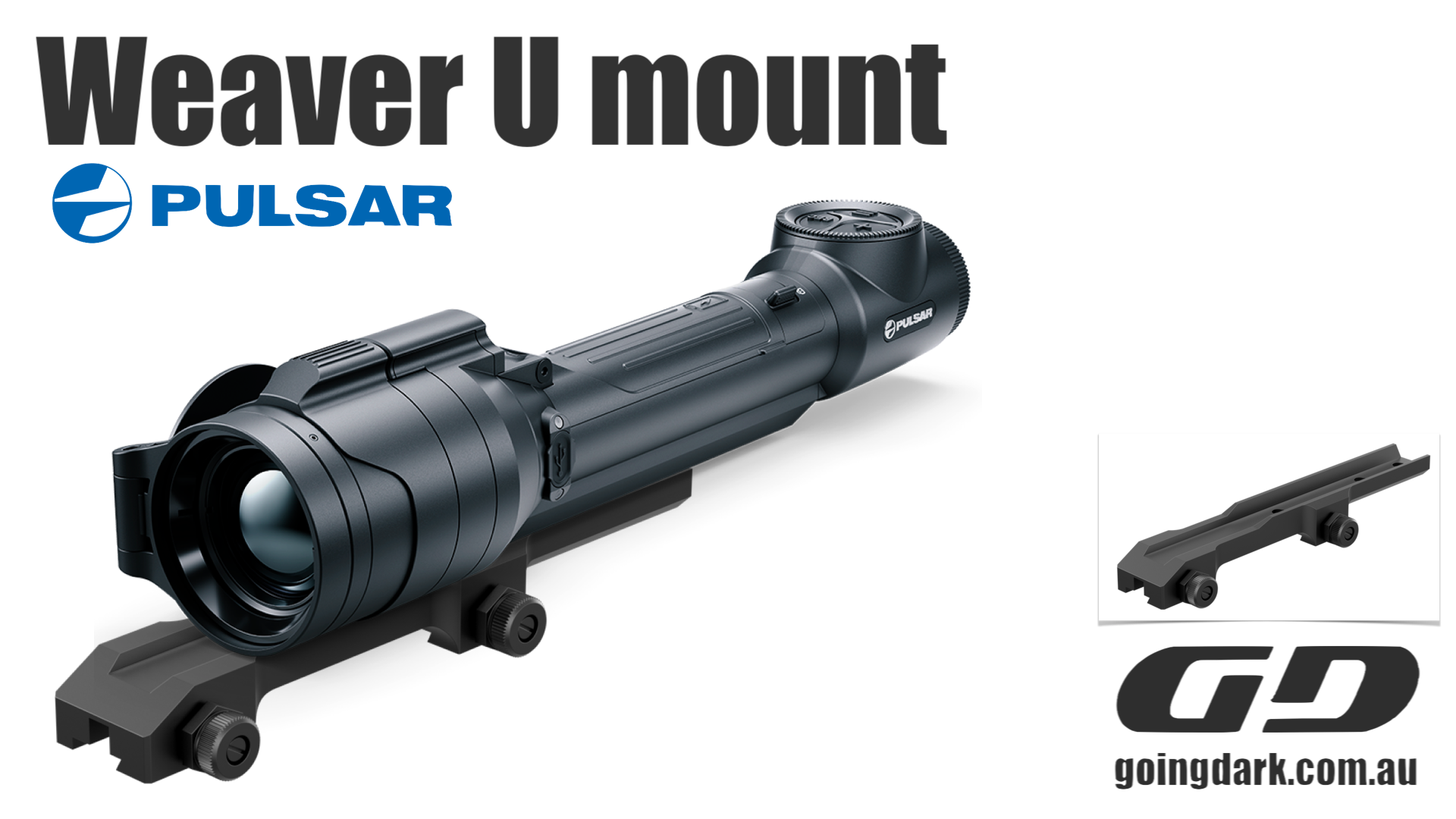

- Multiple rail mount options available (Weaver U / LQD / USQD)
TALION Specifications;
| Main | Talion XG35 | Talion XQ38 |
|
Sensor
|
640x480
|
384x288 pix. @ 17 µm (NETD <40 mK)
|
|
Objective lens
|
F35 F/1.0
|
F38 F/1.2
|
|
Magnification, x
|
2 - 16
|
2.5 – 10 (x4 zoom)
|
|
Field of view (HxV), degrees / m@100m
|
12.5x
|
9.8x7.3 / 17.2x13.0
|
|
Detection range, m
|
1750
|
1350
|
|
Sensor
|
||
|
Type
|
uncooled
|
uncooled
|
|
Resolution, pixels
|
640x480
|
384x288
|
|
Pixel pitch, µm
|
12
|
17
|
|
NETD, mK
|
<50
|
<40
|
|
Frame rate, Hz
|
50
|
50
|
|
Optics
|
|
|
|
Objective lens
|
F35 F/1.0
|
F38/1.2
|
|
Magnification, x
|
2 - 16
|
2.5 – 10
|
|
Field of view (HxV), degrees / m @ 100 m
|
12.5 / 21.9
|
9.8x7.3 / 17.2x13.0
|
|
Eye relief, mm
|
50
|
50
|
|
Display
|
|
|
|
Type
|
AMOLED
|
AMOLED
|
|
Resolution, pixels
|
1024x768
|
1024x768
|
|
Range Performance
|
|
|
|
Detection range, m
|
1750
|
1350
|
|
Laser Rangefinder
|
|
|
|
Safety class for laser equipment
according to IEC 60825-1:2014
|
-
|
-
|
|
Wavelength, nm
|
-
|
-
|
|
Max. measuring range, m
|
-
|
-
|
|
Measurement accuracy, m
|
-
|
-
|
|
Reticle
|
|
|
|
Click value, H/V, mm at 100 m
|
21 – 2х 10,5 – 4х 5,25 – 8х 2,6 – 16х
|
17 / 17 (оn minimum magnification)
|
|
Click range, H/V, mm at 100 m
|
4200 / 4200
|
3400 / 3400
|
|
Number of preloaded reticles
|
-
|
10+
|
|
Video Recorder
|
|
|
|
Video / photo resolution, pixel
|
1024x768
|
1024x768
|
|
Video / photo format
|
.mp4 / .jpg
|
.mp4 / .jpg
|
|
Built-in memory, Gb
|
16
|
16
|
|
Wi-Fi
|
|
|
|
Wireless Protocol
|
Wi-Fi
|
Wi-Fi
|
|
Wireless Standard
|
IEEE 802.11 b/g/n/ac (WPA)
|
IEEE 802.11 b/g/n/ac (WPA)
|
|
Frequency, GHz
|
2.4 / 5
|
2.4 / 5
|
|
Environmental Characteristics
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IPХ7 | IPХ7 |
|
Operating temperature range, °C
|
-25 – +50
|
-25 – +50
|
|
Connections and Compatibilities
|
|
|
|
Max. recoil power on rifled weapon (Eo), Joules
|
6000
|
6000
|
|
Shock resistance on the smooth-bore rifles, caliber
|
12
|
12
|
|
Mounting brackets on weapon
|
Weaver range
|
Weaver range
|
|
Remote control
|
-
|
-
|
|
Supporting Application
|
Stream Vision 2
|
Stream Vision 2
|
|
Power Supply
|
|
|
|
Output voltage, V
|
3.0 - 4.2
|
3.0 - 4.2
|
|
Battery type
|
APS 5
|
APS 5
|
|
Capacity, mAh
|
4900
|
4900
|
|
Operating time on battery pack (at t=22°C), h *
|
9
|
9
|
|
External power supply, V
|
5 V, 9 V (USB Type-C Power Delivery)
|
5 V, 9 V (USB Type-C Power Delivery)
|
|
Weight & Size
|
|
|
| Body Material |
Metal
|
Metal
|
|
Dimensions mm
|
330x57x67
|
330x57x67
|
|
Weight kg
|
0.7
|
0.7
|
|
Warranty
|
|
|
|
Warranty on Device, years
|
3
|
3
|
|
Warranty on Batteries, years
|
1
|
1
|
|
Trade Data
|
|
|
|
SKU (Model #)
|
76563 | 76561 |
Extra Information
Brand:
PULSAR
