Description

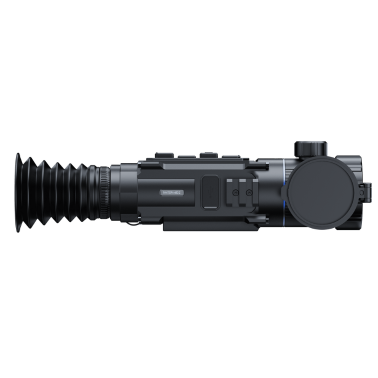

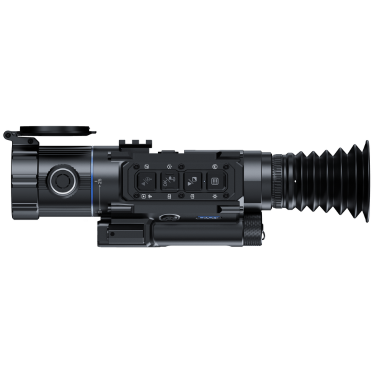

Pard Ocelot 640 Zoom (25/50mm with LRF) Thermal Riflescope
Introducing the Ocelot 640 Thermal Imaging Scope, ideal for hunting, wildlife observation, and surveillance. This advanced scope features a VOx thermal sensor with a 640 x 512 resolution and 12µm pixel size, detecting up to 2600 metres. The PARD IREA image engine ensures sharp thermal images.
The scope offers 2.5x optical magnification with a 50mm lens and digital zoom up to 8x. The high-resolution IPS display (800 x 800 pixels) includes six reticle styles, four reticle colours, and various scene and image modes.
Advanced features: ballistic calculator, gyroscope, hot track, picture-in-picture, loop recording, recoil-activated recording, and LRF detection up to 1000 metres. Connectivity includes USB Type-C, HDMI, and WiFi for the PardVision2 app. The Lithium Ion 21700 battery provides up to five hours of operation, with external Type-C power support.
Built to endure harsh environments, the Ocelot 640 is IP67 rated and operates from -30°C to +55°C. It measures 182 x 68 x 79 mm and weighs 647.5g, making it easy to handle in the field.
Key Features (OC6Z-2550/LRF);
- Thermal Sensor: VOx sensor with 640 x 512 resolution, detecting targets up to 2600m
- Optics: Magnification options 1.3x (25mm lens) and 2.5x (50mm lens), digital zoom up to 8x
- Advanced Display: High-res IPS (800 x 800) with various reticle styles and colors, scene and image modes
- Photo/Video: 1536 x 1536 photos, 768 x 768 videos, Micro SD support up to 128GB
- Advanced Features: Ballistic calculator, gyroscope, hot track, PIP mode, loop recording, LRF detection up to 1000m
- Power Supply: Lithium Ion 21700 battery, up to 6 hours operation
Range Specifications (OC6Z-2550/LRF)
| Model | OC4-35/LRF | OC4-50/LRF | OC6-50/LRF | OC6Z-2550/LRF | |
| Classification | Thermal Imaging Scope | Thermal Imaging Scope | Thermal Imaging Scope | Thermal Imaging Scope | |
| Sensor | |||||
| Type | Uncooled VOx(vanadium oxide) | Uncooled VOx(vanadium oxide) | Uncooled VOx(vanadium oxide) | Uncooled VOx(vanadium oxide) | |
| Resolution(px) | 480*360 | 480*360 | 640*512 | 640*512 | |
| Pixel Size(µm) | 12*12 | 12*12 | 12*12 | 12*12 | |
| NETD | ≤20mK（0.020℃） | ≤20mK（0.020℃） | ≤20mK（0.020℃） | ≤20mK（0.020℃） | |
| Frame Rate(fps) | 50 | 50 | 50 | 50 | |
| Detection Distance(m) | 1800 | 2600 | 2600 | 1200&2600 | |
| Optics | |||||
| Objective Lens(mm) | 35 | 50 | 50 | 25 & 50 | |
| Optical Magnification(x) | 2.3 | 3.3 | 2.5 | 1.3 & 2.5 | |
| Digital Zoom(x) | 2/4/6/8 | 2/4/6/8 | 2/4/6/8 | 2/4/6/8 | |
| Field of view | Horizontal | 7.1° | 5.0° | 7.0° | 14.0° & 7.0° |
| Vertical | 7.1° | 5.0° | 7.0° | 14.0° & 7.0° | |
| Diagonal | 10.0° | 7.0° | 9.9° | 19.8° & 9.9° | |
| Eye Relief(mm) | 100 | 100 | 100 | 100 | |
| Diopter Adjustment(D) | - 5~3 | - 5~3 | - 5~3 | - 5~3 | |
| Display | |||||
| Type | IPS | IPS | IPS | IPS | |
| Resolution(px) | 800*800 | 800*800 | 800*800 | 800*800 | |
| Reticle Style | 6 | 6 | 6 | 6 | |
| Reticle Color | Red/White/Yellow/Green | Red/White/Yellow/Green | Red/White/Yellow/Green | Red/White/Yellow/Green | |
| Scene Mode | City/Rain/Forest | City/Rain/Forest | City/Rain/Forest | City/Rain/Forest | |
| Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | |
| Photo / Video | |||||
| Photo Resolution(px) | 1536*1536 | 1536*1536 | 1536*1536 | 1536*1536 | |
| Photo Format | .JPG | .JPG | .JPG | .JPG | |
| Video Resolution(px) | 768*768 | 768*768 | 768*768 | 768*768 | |
| Video Format | .mp4 | .mp4 | .mp4 | .mp4 | |
| Storage | Micro SD card(128 GB,Max) | Micro SD card(128 GB,Max) | Micro SD card(128 GB,Max) | Micro SD card(128 GB,Max) | |
| Image Engine | Pard IREA | Pard IREA | Pard IREA | Pard IREA | |
| Main Function | |||||
| LRF Detection Range | 1000m/1200yds | 1000m/1200yds | 1000m/1200yds | 1000m/1200yds | |
| Ballistic Calculator | Yes | Yes | Yes | Yes | |
| PIP | Yes | Yes | Yes | Yes | |
| Gyroscope | Yes | Yes | Yes | Yes | |
| Recoil-activated Recording | Yes | Yes | Yes | Yes | |
| Loop Recording | Yes | Yes | Yes | Yes | |
| Red Dot | No | No | No | No | |
| Hot Track | Yes | Yes | Yes | Yes | |
| E-compass | Yes | Yes | Yes | Yes | |
| Shutter | Mechanical shutter | Mechanical shutter | Mechanical shutter | Mechanical shutter | |
| Microphone | Yes | Yes | Yes | Yes | |
| Firmware Upgrade | Yes | Yes | Yes | Yes | |
| Connections | |||||
| USB Tpye-C | Yes | Yes | Yes | Yes | |
| HDMI output | Yes | Yes | Yes | Yes | |
| WiFi | Yes | Yes | Yes | Yes | |
| Supported Apps | PardVision2 | PardVision2 | PardVision2 | PardVision2 | |
| Power Supply | |||||
| Battery Type | Lithium Ion 21700*1 | Lithium Ion 21700*1 | Lithium Ion 21700*1 | Lithium Ion 21700*1 | |
| Output Voltage(V) | 3.7 | 3.7 | 3.7 | 3.7 | |
| Operating Time(h) | ≤5 | ≤5 | ≤5 | ≤5 | |
| External Power Supply | Type-C | Type-C | Type-C | Type-C | |
| Environmental characteristic | |||||
| Protective Class | IP67 | IP67 | IP67 | IP67 | |
| Operating Temp(°C/°F) | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | |
| Recoil Resistance(J) | 6000 | 6000 | 6000 | 6000 | |
| Material | |||||
| Housing | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | |
| Objective Lens | All-glass multi-coated lens | All-glass multi-coated lens | All-glass multi-coated lens | All-glass multi-coated lens | |
| Measurement | |||||
| Product Dimension(with LRF, L * W * H, mm) | 182 x 68 x 79 mm | 182 x 68 x 79 mm | 182 x 68 x 79 mm | 182 x 68 x 79 mm | |
| N.W/pcs(with LRF&battery, g) | 616.5g | 647.5g | 647.5g | 709g | |
