Description

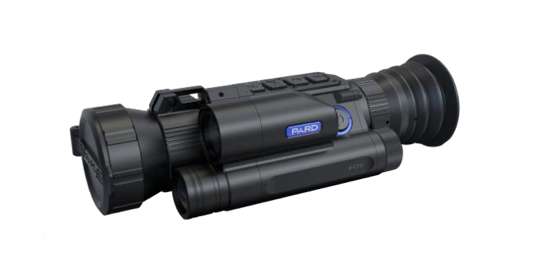

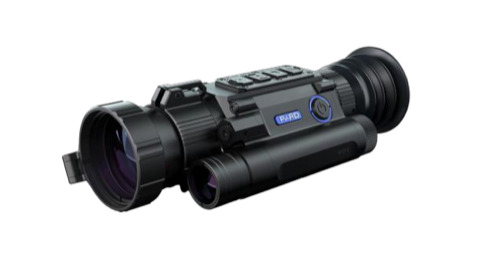

PARD SA32-45-LRF Thermal Rangefinding Riflescope
The SA-PLUS Range from PARD are the next generation of riflescopes, with high quality images created by the latest in thermal sensors (less than 25mK NETD) and enhanced with 'PARD Algorithm Technology'. The SA-PLUS range includes both a 640x480 & 384x288 sensor options with various objective lens sizes to suit any night hunters needs. Add to that an integrated laser rangefinder (up to 1200m range), One shot zero functionality & Ballistic calculation and you have everything you need in a dedicated thermal riflescope. Up to (5) hours use on only one 18650 (3.7v) rechargeable battery. 1024x768 OLED displays with digital magnification up to 8x adds to the features of the SA-PLUS ranges base magnifications (up to 6.5x native on SA32-45). With recoil-activated video recording means you don't miss that memorable take-down moment.
Key Features;
- SA62plus (640x480 thermal sensor, 12um, NETD <25mK)
- SA32plus (384x288 thermal sensor, 12um, NETD <25mK)
- Objective lens options - 25mm, 35mm & 45mm (SA62 & SA32)
- Thermal Detection Range = up to 2300mtrs (SA32-45, person 1.7x0.5m)
- Integrated Laser Rangefinder (up to 1200m range) optional*
- One-shot zero functionality
- Ballistic Calculation
- Fast Startup (3 secs)
- Recoil-activated video recording
- Rifle mounted use (picatinny rail mount included)
- 1x 18650 removeable battery (3.7v), up to 5hrs runtime
- Micro SD storage, media recording, WiFi connectivity, HDMI video out
PARD Thermal Riflescope Product Specifications;
|
MODEL |
SA32-25 (LRF) |
SA32-35 (LRF) |
SA32-45 (LRF) |
SA62-25 (LRF) |
SA62-35 (LRF) |
SA62-45 (LRF) |
|
Thermal Sensor
|
384 x 288
|
384 x 288
|
384 x 288
|
640 x 512
|
640 x 512
|
640 x 512
|
|
Objective lens
|
25mm |
35mm
|
45mm
|
25mm
|
35mm
|
45mm
|
|
Magnification, x
|
3.5x (4x zoom) | 4.5x (4x zoom) | 6.5x (4x zoom) | 1.5x (4x zoom) | 2.8x (4x zoom) | 3.5x (4x zoom) |
|
Field of view (Horizontal), degrees
|
10.6° x 7.9° | 7.5° x 5.6° | 5.9° x 4.4° | 17.5° x 13.1° | 12.5° x 9.4° | 9.7° x 7.3° |
|
Detection range (person), m
|
1100
|
1400
|
1700
|
1200
|
1500
|
1800
|
|
Sensor (Thermal)
|
||||||
|
Type
|
uncooled VOx
|
uncooled VOx
|
uncooled VOx
|
uncooled VOx
|
uncooled VOx
|
uncooled VOx
|
|
Resolution, pixels
|
384 x 288
|
384 x 288
|
384 x 288
|
640 x 512
|
640 x 512
|
640 x 512
|
|
Pixel Pitch
|
12 um
|
12 um
|
12 um
|
12 um
|
12 um
|
12 um
|
|
NETD
|
<25 mK
|
<25 mK
|
<25 mK
|
<25 mK
|
<25 mK
|
<25 mK
|
|
Frame rate, Hz
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Optics
|
|
|
|
|
|
|
|
Objective lens
|
25mm |
35mm
|
45mm
|
25mm
|
35mm
|
45mm
|
|
Magnification, x
|
3.5x (4x zoom) | 4.5x (4x zoom) | 6.5x (4x zoom) | 1.5x (4x zoom) | 2.8x (4x zoom) | 3.5x (4x zoom) |
|
Field of view (Horizontal), degrees
|
10.6° x 7.9° | 7.5° x 5.6° | 5.9° x 4.4° | 17.5° x 13.1° | 12.5° x 9.4° | 9.7° x 7.3° |
|
Display
|
|
|
|
|
|
|
|
Resolution, pixels
|
1024 x 768 OLED |
1024 x 768 OLED
|
1024 x 768 OLED
|
1024 x 768 OLED
|
1024 x 768 OLED
|
1024 x 768 OLED
|
|
Thermal Palettes
|
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky |
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
|
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky |
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
|
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky |
White Hot, Black Hot, Red Hot, Edge, Iron Red, Sky
|
|
Range Performance
|
|
|
|
|
|
|
|
Detection range (person), m
|
1100
|
1400
|
1700
|
1200
|
1500
|
1800
|
|
Detection range (vehicle), m
|
2200
|
2600
|
3000
|
2500
|
2900
|
3300
|
|
Laser Rangefinder
|
(optional LRF)
|
(optional LRF)
|
(optional LRF)
|
(optional LRF)
|
(optional LRF)
|
(optional LRF)
|
|
Safety class for laser equipment according to IEC 60825-1:2014
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Wavelength, nm
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Max. measuring range, m
|
1200
|
1200
|
1200
|
1200
|
1200
|
1200
|
|
Measurement accuracy, m
|
±1
|
±1
|
±1
|
±1
|
±1
|
±1
|
|
Min. Measuring Range, m
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Laser Pointer (red optical)
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Reticle
|
|
|
|
|
|
|
|
Picture in Picture
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Number of preloaded reticles
|
6 (4 colours)
|
6 (4 colours)
|
6 (4 colours)
|
6 (4 colours)
|
6 (4 colours)
|
6 (4 colours)
|
|
Number of Zero Profiles available
|
tba
|
tba
|
tba
|
tba
|
tba
|
tba
|
|
WiFi Connection
|
Yes (Roadcam App)
|
Yes (Roadcam App)
|
Yes (Roadcam App)
|
Yes (Roadcam App)
|
Yes (Roadcam App)
|
Yes (Roadcam App)
|
|
Video Recorder
|
Micro SD Card
(Max. 128Gb storage)
|
Micro SD Card
(Max. 128Gb storage)
|
Micro SD Card
(Max. 128Gb storage)
|
Micro SD Card
(Max. 128Gb storage)
|
Micro SD Card
(Max. 128Gb storage)
|
Micro SD Card
(Max. 128Gb storage)
|
|
HDMI Output
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Microphone
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Recoil-Activated Video Recording
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Loop Recording
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Other Functions
|
|
|
|
|
|
|
|
Ballistic Calculator
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Gyroscope
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
E-compass
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Environmental Characteristics
|
|
|
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67 |
IP67
|
IP67
|
IP67
|
IP67
|
IP67
|
|
Power Supply
|
|
|
|
|
|
|
|
Output voltage, V
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Battery type
|
18650 x1 |
18650 x1
|
18650 x1
|
18650 x1
|
18650 x1
|
18650 x1
|
|
Operating time on battery pack (at t=22°C), h *
|
5
|
5
|
5
|
5
|
5
|
5
|
|
External power supply, V
|
5V (USB Type-C)
|
5V (USB Type-C) |
5V (USB Type-C)
|
5V (USB Type-C)
|
5V (USB Type-C)
|
5V (USB Type-C)
|
|
Connections and Compatibilities
|
|
|
|
|
|
|
|
Max. recoil power on firearm
|
1000G | 1000G | 1000G | 1000G | 1000G | 1000G |
|
Mounting brackets on firearm
|
picatinny | picatinny | picatinny | picatinny | picatinny | picatinny |
|
Weight & Size
|
|
|
|
|
|
|
|
Dimensions, mm
|
195 x 77 x 56 (195 x 79 x 59) |
195 x 77 x 56 (195 x 79 x 59)
|
195 x 77 x 56 (195 x 79 x 59) |
195 x 77 x 56 (195 x 79 x 59)
|
195 x 77 x 56 (195 x 79 x 59) |
195 x 77 x 56 (195 x 79 x 59)
|
|
Weight, kg
|
0.43 (0.46)
|
0.43 (0.46)
|
0.43 (0.46)
|
0.43 (0.46)
|
0.43 (0.46)
|
0.43 (0.46)
|
|
Warranty
|
3 years
|
3 years
|
3 years
|
3 years
|
3 years
|
3 years
|
|
Trade Data
|
|
|
|
|
|
|
|
SKU (Model #)
|
SA32-25(-LRF) |
SA32-35(-LRF)
|
SA32-45(-LRF)
|
SA62-25(-LRF)
|
SA62-35(-LRF)
|
SA62-45(-LRF)
|
Ballistic Calculator
The integrated ballistic calculator can precisely calculate your bullets trajectory and give you a precise aiming point. Enabling you to accurately place your shot.
- Improve your accuracy with smart technology
- Calculate precise aiming points
- Hunter better
12μm NETD≦25mK Thermal Imaging Sensor
- High image resolution and clarity
- Strong dynamic capture ability
- Extremely sensitive
Self-activated Recording
- Intelligent Recording. Record thrilling moments
When the device detects recoil, the whole shooting process will be recorded in 20 second intervals. The incremental 20-second video footage will be saved on the TF card.
6000J Recoil Resistance
The SA32/62 are recoil proof up to 6000J Muzzle Energy.
Infrared Image Enhancement Algorivthm (IREA)
- Improved recognition of targets
- Reduced image distortion
- No lag images
1200yds Rangefinder
At night it’s hard to judge distances, with the LRF you can know the range and combined with the integrated ballistics the LRF allows you to hunt smarter.
- Automatically imputed to ballistics
- Precise target ranging
- Hunt Smarter
