THUNDER PRO TE25 - Thermal Imaging Riflescope - HikMicro
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
$15 Flat Rate Shipping
Product Details

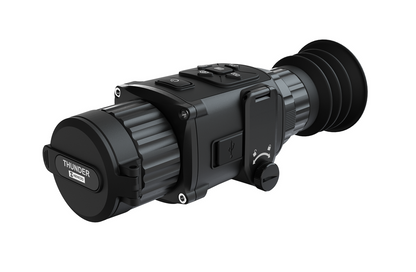

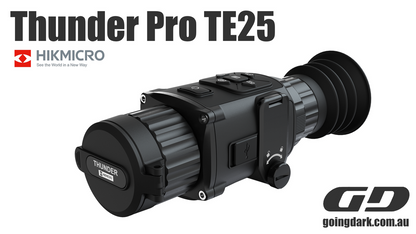

THUNDER PRO TE25 - Thermal Imaging Riflescope by HikMicro
The HIKMICRO Thunder PRO can be used in various configurations; a Thermal Sight, a Handheld Thermal Monocular, and a Thermal Day-sight Clip-On (refer to products with postfix *C).
The HIKMICRO Thunder PRO range comers with a rail mount to suit your picatinny rail. Simply attach and fix to your rifle. Simply detach the included picatinny rail and the Thunder PRO can be used as a Thermal Monocular.
Using the highly sensitive, SUB 35mK NETD, 12µm Thermal Sensor, the HIKMICRO Thunder Pro Thermal Imaging Riflescope delivers industry-leading detail and clarity in a compact and rugged package. The software built into the Thunder Weapon Scope is easy to use and would be instantly recognisable to anyone who has used a HIK Micro Thermal Monocular.
The HIKMICRO Thunder PRO range shares many features including the choice of 4 colour palettes, Hot Track, and WiFi - in order to stream, record and control from your phone, plus NEW and exciting features like ‘Picture-in-Picture’, 5 reticle choices with the option of 3 colours.
Key Features;
● Multiple Configurations (Monocular, Sight, Clip-On*)
● High sensitivity thermal module with 256x192 & 640x512 resolution
● NETD <35mK (@25°C)
● 1024 x 768 resolution 0.39-inch OLED display
● Includes 2x CR123 batteries (compatible with 3.7v rechargeable)
● Up to 4.5 hours continuous operation (TQ50 = approx. 3hrs runtime with WiFi-on @ 25°C)
(*Additional items required - refer to table below)
THUNDER PRO Product
Specifications;
Model |
TE19C |
TE25 |
TQ35C |
TQ50 (TQ50C) |
Thermal Sensor |
256 x 192 |
256 x 192 |
640 x 512 |
640 x 512 |
Objective lens |
19 / F1.0 | 25 / F1.0 |
35 / F1.0 |
50 / F1.0 |
Magnification, x |
2.47x (8x zoom) |
3.25x (8x zoom) | 1.82x (8x zoom) | 1.50x (8x zoom) |
Field of view (HxV), degrees / m @ 100mtrs |
9.24° x 6.94° | 7.03° × 5.28° |
12.50° x 10.00° |
8.80° x 7.00° |
Detection range, m |
900 |
1800 |
1800 |
2600 |
Sensor (Thermal) |
||||
Type |
uncooled FPA |
uncooled FPA |
uncooled FPA |
uncooled FPA |
Resolution, pixels |
256 x 192 |
256 x 192 |
640 x 512 |
640 x 512 |
Pixel Pitch |
12 μm |
12 μm |
12 μm |
12 μm |
NETD |
<35 mK (@ 25°C) |
<35 mK (@ 25°C) |
<35 mK (@ 25°C) |
<35 mK (@ 25°C) |
Frame rate, Hz |
50 |
50 |
50 |
50 |
Optics |
||||
Objective lens |
19 / F1.0 | 25 / F1.0 |
35 / F1.0 |
50 / F1.0 |
Magnification, x |
2.47x (8x zoom) |
3.25x (8x zoom) | 1.82x (8x zoom) | 1.50x (8x zoom) |
Field of view (HxV), degrees / m @ 100mtrs |
9.24° x 6.94° | 7.03° × 5.28° |
12.50° x 10.00° |
8.80° x 7.00° |
Display |
||||
Resolution, pixels |
1024 x 768 OLED (0.39") | 1024 x 768 OLED (0.39") |
1024 x 768 OLED (0.39") |
1024 x 768 OLED (0.39") |
Thermal Palettes |
Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion |
Black Hot, White Hot, Red Hot, Fusion | Black Hot, White Hot, Red Hot, Fusion |
Range Performance |
||||
Detection range (person), m |
900 |
1800 |
1800 |
2600 |
Laser Rangefinder |
||||
Safety class for laser equipment according to IEC 60825-1:2014 |
- |
- |
- |
- |
Wavelength, nm |
- |
- |
- |
- |
Max. measuring range, m |
- |
- |
- |
- |
Measurement accuracy, m |
- |
- |
- |
- |
Min. Measuring Range, m |
- |
- |
- |
- |
Reticle |
||||
Picture in Picture |
Yes |
Yes |
Yes |
Yes |
Number of preloaded reticles |
Yes |
Yes |
Yes |
Yes |
Number of Zero Profiles available |
Yes |
Yes |
Yes |
Yes |
Bluetooth Connection |
- |
- |
- |
- |
Video Recorder |
Video & Snapshot
(16Gb storage)
|
Video & Snapshot
(16Gb storage)
|
Video & Snapshot
(16Gb storage)
|
Video & Snapshot
(16Gb storage)
|
Environmental Characteristics |
||||
Degree of protection, IP code (IEC60529) |
IP67 | IP67 |
IP67 |
IP67 |
Power Supply |
||||
Output voltage, V |
- |
- |
- |
- |
Battery type |
CR123A / RCR123A (2x) | CR123A / RCR123A (2x) |
CR123A / RCR123A (2x) |
CR123A / RCR123A (2x) |
Operating time on battery pack (at t=22°C), h * |
4.5 |
4.5 |
3.25 |
3.6 (3.0 wifi on) |
External power supply, V |
5V (USB Type-C) |
5V (USB Type-C) | 5V (USB Type-C) |
5V (USB Type-C) |
Connections and Compatibilities |
||||
Max. recoil power on firearm |
750 g/ms (.375H&H - 12g - 9.3x64) | 750 g/ms (.375H&H - 12g - 9.3x64) |
750 g/ms (.375H&H - 12g - 9.3x64) | 750 g/ms (.375H&H - 12g - 9.3x64) |
Mounting brackets on firearm |
picatinny (clip-on adapter) | picatinny |
picatinny (clip-on adapter) |
picatinny (clip-on adapter) |
Weight & Size |
||||
Dimensions, mm |
200.38 x 66.32 x 87.10 | 214.10 x 74.30 x 88.71 |
200.38 x 66.32 x 87.10 |
214.10 x 74.30 x 88.71 |
Weight, kg |
0.44 |
0.44 |
0.49 |
0.49 |
Warranty |
3 years |
3 years |
3 years |
3 years |
Trade Data |
||||
SKU (Model #) |
TE19C | TE25 |
TQ35C |
TQ50 (TQ50C) |
