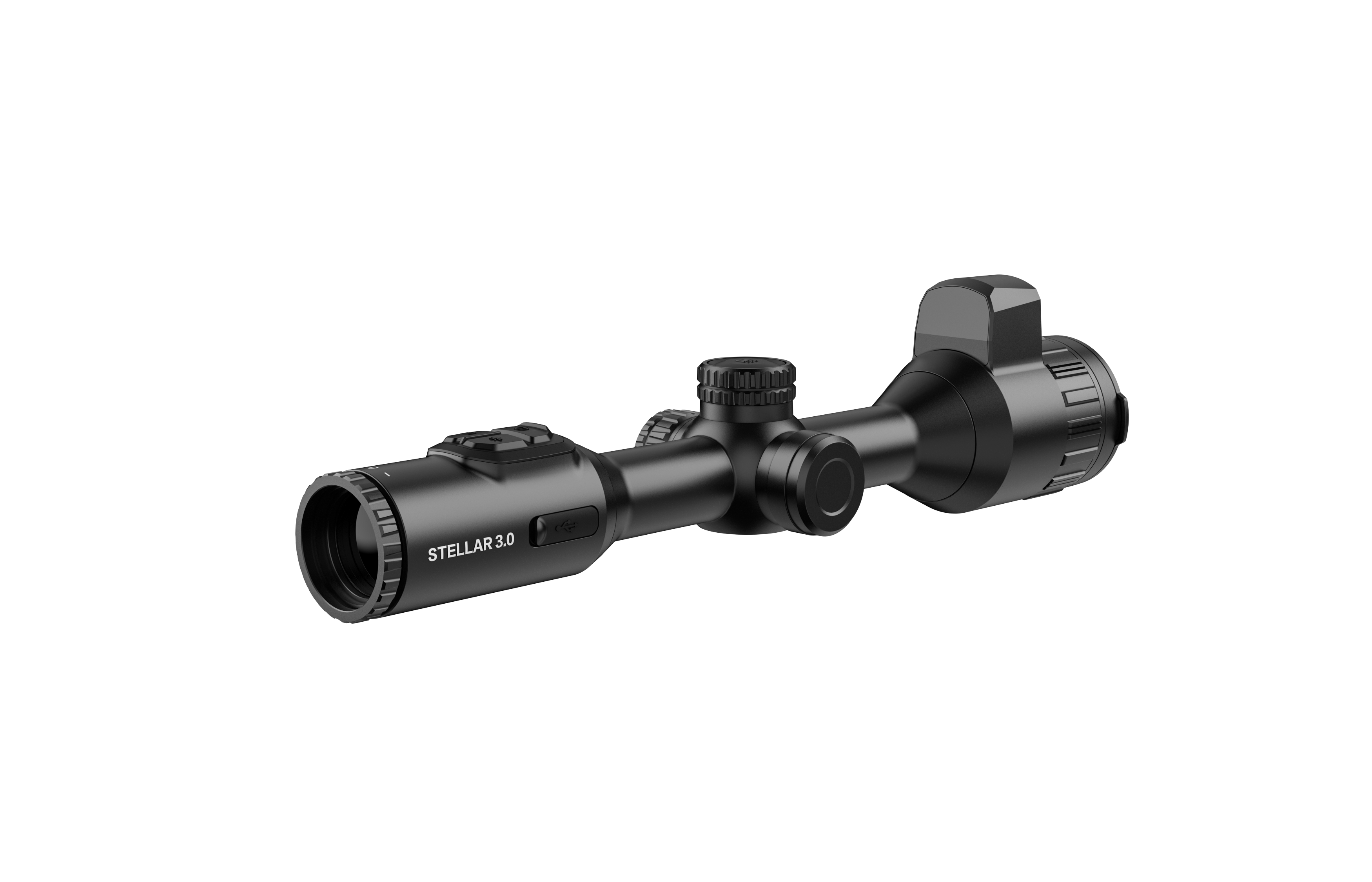

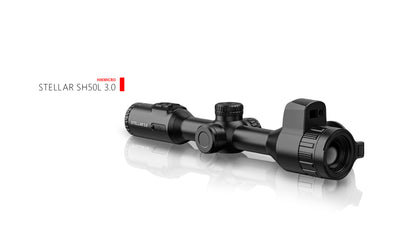

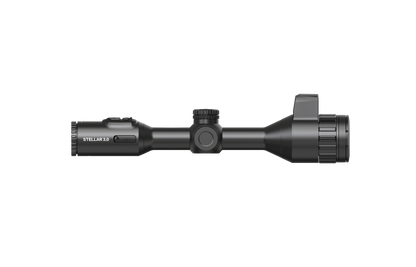

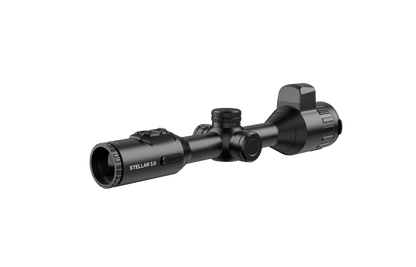

HIKMICRO STELLAR SH50L 3.0

HIKMICRO STELLAR SH50L 3.0 Thermal Scope is equipped with a 384×288 @12μm thermal detector, with much higher sensitivity (NETD＜15mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless System (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2560×2560 1.03” AMOLED larger display, SH50L 3.0 makes it easier to spot targets quickly and accurately. The built-in 1000m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field hunting.

Key Features

• 384 x 288 Resolution @12 μm thermal detector
• High sensitivity Thermal Module NETD<15 mK (@25°C, F# = 1.0)
• 50 mm, F1.0 lens with detection range up to 2600 m
• 2560 × 2560 Resolution 1.03-inch OLED display
• HIKMICRO Shutterless Image System (HSIS)
• Built-in laser rangefinder up to 1000 m, with ballistic calculation
• Rechargeable internal batteries and external battery, 9h continuous operation
• High shock resistance up to 1000 g/0.4 ms

Specification

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max. Measuring Range :1000 m
• Measurement Accuracy: ±1 m
• Min. Measuring Range: 10 m

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 384 × 288
• Frame Rate: 50 Hz * Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C, F# = 1.0)
• Lens (Focal Length): 50 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 2600 m
• Min. Focusing Distance: 5 m
• Magnification: 6.0× - 24.0×, Support 1× step value of continuous zooming
• Field of View(H×V), Degrees / m @100 m: 5.3° × 4.0°/9.3m x 7.0m

Image Display

• Display: 2560 × 2560, 1.03-inch OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Diopter (Range): -5D to 3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• Image Pro 2.0: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Audio Recording: Yes
• Recoil-Activation Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Zeroing Profiles: 5
• Max. Recoil: 1000 g/0.4 ms
• Freeze Zeroing: Yes
• Local Album: Yes

Power Supply

• Battery Type Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
• Battery Operating Time 9 hours continuous running (@-20°C, Zoom Pro, LRF on)
• Type-C Power Supply 5 V DC/2 A, USB Type-C interface, Supports QC3.0

General

• Mounting Standard 30 mm
• Protection Level IP67
• Dimension 418.5 mm × 84 mm × 92.4 mm
• Weight 880 g without external battery
• Working Temperature -30°C to 55°C (-22°F to 131°F)
• Center Height 34 mm
