Description

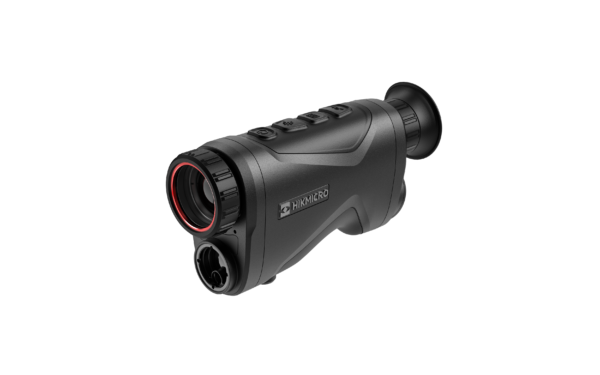

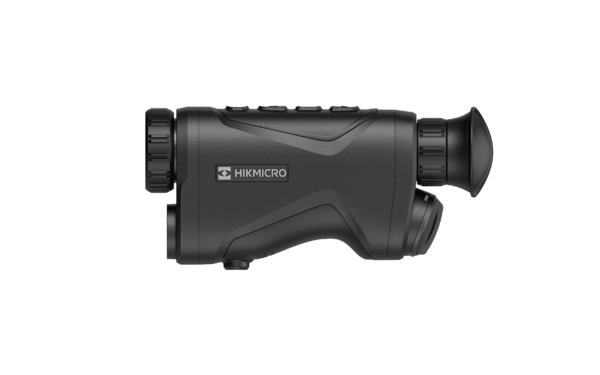

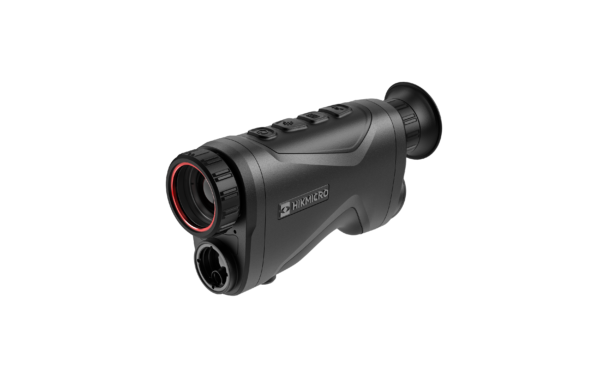

HIKMICRO Condor CH25L Thermal Monocular
The HIKMICRO CONDOR CH25L thermal monocular is equipped with a 384 × 288 @ 12 um infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions. It can be applied mainly in forest hunting, birding, animal searching, adventuring, and recusing scenario.
Key Features
● High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
● 384 × 288 resolution with 12 μm detector
● 1024 × 768 resolution 0.39-inch OLED display
● Advanced image processing technology
● Image Pro for enhancing detail recognition
● Zoom Pro for digital zooming without loss of picture quality
● Replaceable and rechargeable Li-ion battery
● Up to 4.5 hours of continuous operation
● 386 g lightweight, with a compact and ergonomic design
Range Specifications
| Main | CH25L | CH35L | CQ35L | CQ50L |
|
Sensor Resolution
|
384 × 288 | 384 × 288 | 640 × 512 | 640 × 512 |
|
Objective lens
|
25 mm, f1.0 | 35 mm, f1.0 | 35 mm, f1.0 | 50 mm, f1.0 |
|
Magnification, x
|
2.5× to 20.0× (8×) |
3.5× to 28.0× (8×)
|
2.0× to 16.0× (8×) | 3.0× to 24.0× (8×) |
|
Field of view (HxV), degrees / m@100m
|
10.5° × 7.9°/18.3 m × 13.8 m @ 100 m |
7.5° × 5.6°/13.1 m × 9.7 m @ 100 m
|
12.5° × 10.0°/21.9 m × 17.5 m @ 100 m | 8.7° × 7.0°/15.2 m × 12.2 m@100 m |
|
Detection range, m (thermal)
|
1200 m |
1800 m
|
1800 m | 2600 m |
|
Sensor
|
||||
|
Type
|
VOx Uncooled Focal Plane Arrays |
VOx Uncooled Focal Plane Arrays
|
VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
|
Resolution, pixels
|
384 × 288 | 384 × 288 | 640 × 512 | 640 × 512 |
|
Pixel pitch, µm
|
12 μm |
12 μm
|
12 μm | 12 μm |
|
NETD, mK
|
Less than 20 mK (@25°C), F# = 1.0 |
Less than 20 mK (@25°C), F# = 1.0
|
Less than 20 mK (@25°C), F# = 1.0 | Less than 20 mK (@25°C), F# = 1.0 |
|
Frame rate, Hz
|
50Hz |
50Hz
|
50Hz | 50Hz |
|
Optics
|
|
|||
|
Objective lens
|
25 mm, f1.0 |
35 mm, f1.0
|
35 mm, f1.0 | 50 mm, f1.0 |
|
Magnification, x
|
2.5× to 20.0× (8×) |
1.8x - 7.2x
|
2.0× to 16.0× (8×) | 3.0× to 24.0× (8×) |
|
Field of view (HxV), degrees / m @ 100 m
|
10.5° × 7.9°/18.3 m × 13.8 m @ 100 m |
7.5° × 5.6°/13.1 m × 9.7 m @ 100 m
|
12.5° × 10.0°/21.9 m × 17.5 m @ 100 m | 8.7° × 7.0°/15.2 m × 12.2 m@100 m |
|
Eye relief, mm
|
15 mm |
15 mm
|
15 mm | 15 mm |
|
Display
|
|
|||
|
Type
|
OLED | OLED | OLED | OLED |
|
Resolution, pixels
|
1024×768, 0.39 inch | 1024×768, 0.39 inch | 1024×768, 0.39 inch | 1024×768, 0.39 inch |
|
Range Performance
|
|
|||
|
Detection range, m (thermal)
|
1200 m |
1800 m
|
1800 m | 2600 m |
|
Laser Rangefinder
|
|
|||
|
Safety Class for laser equipment according IEC 60825-1:2014
|
Class 1
|
Class 1
|
Class 1
|
Class 1
|
|
Wavelength, nm
|
905 nm
|
905 nm
|
905 nm
|
905 nm
|
|
Max. measuring range, m
|
1000 m
|
1000 m
|
1000 m
|
1000 m
|
|
Measurement Accuracy, m
|
± 1 m
|
± 1 m
|
± 1 m
|
± 1 m
|
|
Reticle
|
|
|
|
|
|
Click value, H/V, mm at 100 m
|
-
|
-
|
-
|
-
|
|
Click range, H/V, mm at 100 m
|
- |
-
|
- | - |
|
Number of preloaded reticles
|
- |
-
|
- | - |
|
Video Recorder
|
Yes | Yes | Yes | Yes |
|
Video / photo resolution, pixel
|
- | - | - | - |
|
Video / photo format
|
- |
-
|
- | - |
|
Built-in memory, Gb
|
64Gb |
64Gb
|
64Gb |
64Gb
|
|
Wi-Fi
|
Yes | Yes | Yes | Yes |
|
Wireless Protocol
|
- |
-
|
- | - |
|
Wireless Standard
|
- |
-
|
- | - |
|
Frequency, GHz
|
- |
-
|
- | - |
|
Environmental Characteristics
|
|
|||
|
Degree of protection, IP code (IEC60529)
|
IP67 | IP67 | IP67 | IP67 |
|
Operating temperature range, °C
|
-30°C to +55°C |
-30°C to +55°C
|
-30°C to +55°C | -30°C to +55°C |
|
Connections and Compatibilities
|
||||
|
Max. recoil power on rifled weapon (Eo), Joules
|
- |
-
|
- | - |
|
Shock resistance on the smooth-bore rifles, caliber
|
- | - | - | - |
|
Mounting brackets on weapon
|
- |
-
|
- | - |
|
Supported Appplication
|
Hikmicro Sight App |
Hikmicro Sight App
|
Hikmicro Sight App | Hikmicro Sight App |
|
Power Supply
|
|
|||
|
Output voltage, V
|
- |
-
|
- | - |
|
Battery type
|
Replaceable and Rechargeable Li-ion Battery |
Replaceable and rechargeable Li-ion battery
|
Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
|
Capacity, mAh
|
- |
-
|
- | - |
|
Operating time on battery pack (at t=22°C), h *
|
4.5-hour continuous running with CVBS and hotspot function off (@25°C) |
4.5-hour continuous running with CVBS and hotspot function off (@25°C)
|
4-hour continuous running with CVBS and hotspot function off (@25°C) | 4-hour continuous running with CVBS and hotspot function off (@25°C) |
|
External power supply, V
|
5 VDC, 2 A Supports External Power Supply |
5 VDC, 2 A
Supports External Power Supply |
5 VDC, 2 A Supports External Power Supply |
5 VDC, 2 A Supports External Power Supply |
|
Weight & Size
|
|
|||
| Body Material | - |
-
|
- | - |
|
Dimensions mm
|
180.7 mm × 52.7 mm × 85.4 mm (7.11" × 2.07" × 3.36") |
184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46")
|
184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46") | 197.1 mm × 60 mm × 94.9 mm (7.76" × 2.36" × 3.74") |
|
Weight kg
|
386 g without battery |
400 g without battery
|
400 g without battery | 450 g without battery |
|
Warranty
|
|
|||
|
Warranty on Device, years
|
3 years | 3 years | 3 years | 3 years |
|
Warranty on Batteries, years
|
1 year
|
1 year
|
1 year
|
1 year
|
|
Trade Data
|
|
|
|
|
|
SKU (Model #)
|
TIHIK560 | TIHIK562 | TIHIK564 | TIHIK566 |
CH25L
With its robust 384-detector array, a 25mm focal length, and an impressive 2.5x magnification, the CH25L presents an extraordinary 18-meter field of view. This establishes it as the ultimate all-purpose choice, highlighting its exceptional performance in forest environments.
Its fundamental 3.5x magnification, 384-detector array, and a 35mm focal length combine to provide an expansive 13-meter field of view. This adaptable instrument excels at capturing intricate images in vast, open environments.
Vivid, Informative, and Layered Images
Ultra clear image, impressive detail recognition
Powerful high sensitivity (NETD＜20mK) thermal detector of HIKMICRO CONDOR thermal imaging monocular helps small details of objects and backgrounds to be identified easily and clearly in different weather and light conditions.
Purpose-built image algorithm brings stunning image quality
HIKMICRO's self-developed image algorithms give HIKMICRO CONDOR thermal monocular highly optimized images and remarkable details. These algorithms are developed based on extensive analysis of diverse hunting scene images and thermal imaging features.
- HIKMICRO Image Pro ensures the maximum digital image optimization and provides high-quality rendering of both target objects and background, especially in the original magnification.
- HIKMICRO Zoom Pro can help present ultra-clear images with a higher signal-to-noise ratio and impressive details, especially when using digital zoom.
Accurate Distance Measurement
Distance from the game is essential to ensure a safe shot. The integrated laser rangefinder in HIKMICRO CONDOR thermal monocular allows the user to measure a distance up to 1,000m with an accuracy of ±1 meter in various scenarios, enjoying the most precise measurement of the situation.
Perfect Ergonomics, Premium Reliability
Ergonomic grasping shape design for better operation experience
HIKMICRO CONDOR's compact and easy-grasp shape design perfectly fits human hands' purlicue. It adopts soft and skin-friendly material to guarantee better operation for both left- and right- hand users.
Robust magnesium alloy housing design for long-time use
Magnesium alloy design retains HIKMICRO CONDOR thermal monocular a robust structure with light weight and improves stability to meet long-lasting use under any harsh environmental condition.
Magnetic lens cover, easily take and collect
Loss-proof magnetic lens cover realizes easy and silent installation and collection, ensuring better protection of the HIKMICRO CONDOR SDLC lens.
Purpose-Built Features Come For Ease-To-Use
Fast boot on function and replaceable batteries bring more lasting use
Fast boot on within 3s makes HIKMICRO CONDOR always ready for use
HIKMICRO ensures users never have to worry about running out of power. The HIKMICRO CONDOR thermal monocular comes with three replaceable and rechargeable 18,650 batteries, providing an impressive 13.5 hours of continuous operation. With this extended battery life, users can enjoy their never-ending game without any power anxiety, capturing all the exciting moments without interruption.
Auto screen off darkens the screen to save energy and increase battery time
The integrated algorithm automatically detects HIKMICRO CONDOR‘s exact position and activates the auto screen-off function when there is no need to use it. HIKMICRO CONDOR will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.
Personalized settings available to the suitable visual experience
HIKMICRO CONDOR thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize their visual experience to the highest level of comfort by adjusting settings such as contrast, sharpness, and other personalized options.
More advantages
