Description
HIKMICRO Panther 2.0 PQ35L Thermal Scope
The HIKMICRO PANTHER PQ35L 2.0 Thermal Scope is equipped with a 640 × 512 thermal detector and a 1024 × 768 OLED monitor. Its exceptional thermal sensitivity ensures precise detail recognition, even in the most challenging weather conditions where there is minimal temperature difference between the object and the background. This scope is specifically designed for applications such as hiking, hunting, searching, and rescuing.
Key Features
- Ultra clear image, impressive detail recognition
- High thermal sensitivity, perfect detail recognition
- Vivid, informative, and layered images
- Built-in laser range finder provides an accurate game
- Internal ballistic calculation for long-range shooting
- Compact Size and Rugged Design for High Reliability
- Integrated design provides hassle-free experience
- Rugged and reliable for toughest condition
- High shock resistance
- Replaceable and rechargeable battery
- Less than 20mK (25 °C, F#=1.0)
- 12μm Pixel Pitch

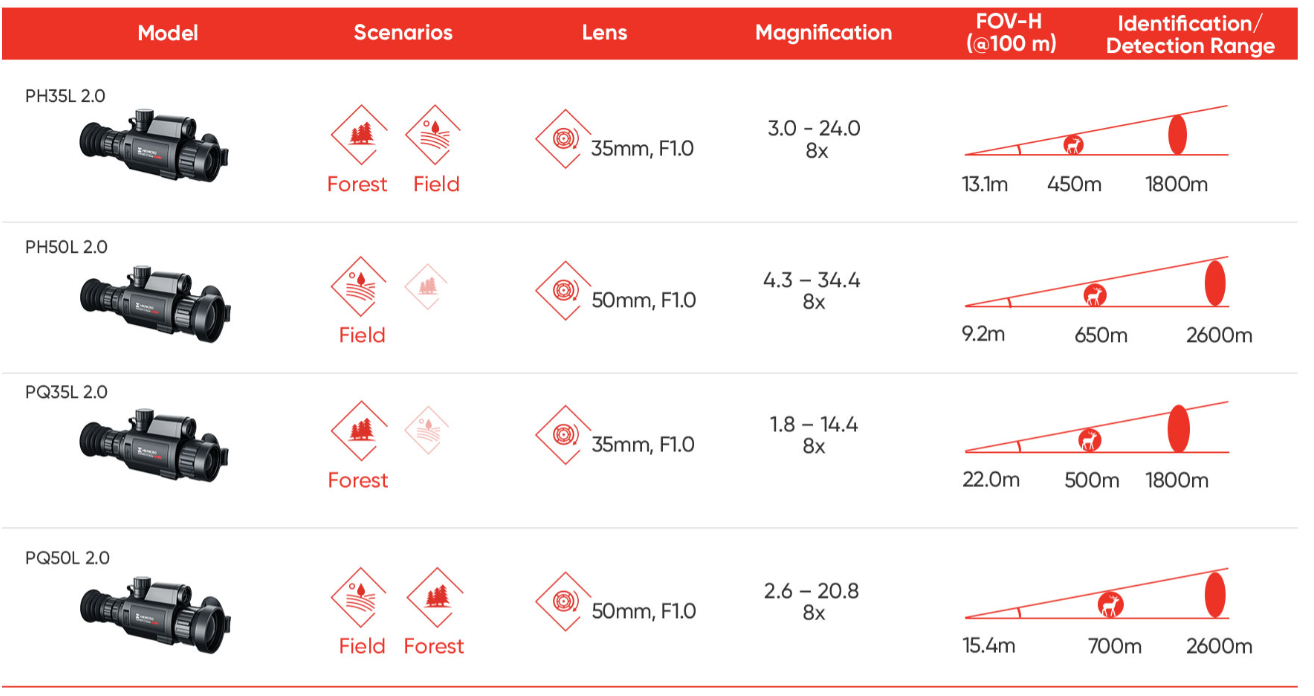

Range Specifications
Model
|
PH35L 2.0
|
PH50L 2.0
|
PQ35L 2.0
|
PQ50L 2.0
|
Sensor
|
Uncooled Focal Plane Arrays
|
Uncooled Focal Plane Arrays
|
Uncooled Focal Plane Arrays
|
Uncooled Focal Plane Arrays
|
Objective lens |
|
|
|
|
Magnification, x
|
3.0 ×- 24.0× (8×)
|
4.3× - 34.4× (8×)
|
1.8 × - 14.4 × (8×)
|
2.6 × - 20.8 × (8×)
|
Field of view (HxV), degrees / m@100m
|
7.5° × 5.7°/13.1m × 10.0m
|
5.3° x 4.0°/9.3m × 7.0m
|
12.5° × 10.0°/21.9m × 17.5m
|
8.8° × 7.0°/15.4m × 12.2m
|
Detection range, m (thermal)
|
1800m
|
2600m
|
1800m
|
2600m
|
Sensor
|
||||
Type
|
Uncooled Focal Plane Arrays
|
Uncooled Focal Plane Arrays
|
Uncooled Focal Plane Arrays
|
Uncooled Focal Plane Arrays
|
Resolution, pixels
|
384x288
|
384x288
|
640x512
|
640x512
|
Pixel pitch, µm
|
12μm
|
12μm
|
12μm
|
12μm
|
NETD, mK
|
Less than 20mK (25 °C, F#=1.0)
|
Less than 20mK (25 °C, F#=1.0)
|
Less than 20mK (25 °C, F#=1.0)
|
Less than 20mK (25 °C, F#=1.0)
|
Frame rate, Hz
|
50Hz
|
50Hz
|
50Hz
|
50Hz
|
Optics
|
|
|
|
|
Objective lens
|
|
|
|
|
Magnification, x
|
3.0 ×- 24.0× (8×)
|
4.3× - 34.4× (8×) | 1.8 × - 14.4 × (8×) |
2.6 × - 20.8 × (8×)
|
Field of view (HxV), degrees / m @ 100 m
|
7.5° × 5.7°/13.1m × 10.0m
|
5.3° x 4.0°/9.3m × 7.0m
|
12.5° × 10.0°/21.9m × 17.5m
|
8.8° × 7.0°/15.4m × 12.2m
|
Eye relief, mm
|
45mm
|
45mm
|
45mm
|
45mm
|
Display
|
|
|
|
|
Type
|
OLED
|
OLED
|
OLED
|
OLED
|
Resolution, pixels
|
1024x768, 0.39 inch
|
1024x768, 0.39 inch
|
1024x768, 0.39 inch
|
1024x768, 0.39 inch
|
Range Performance
|
|
|
|
|
Detection range, m (thermal)
|
1800m
|
2600m
|
1800m
|
2600m
|
Laser Rangefinder
|
|
|
|
|
Safety Class for laser equipment according IEC 60825-1:2014
|
Class 1
|
Class 1
|
Class 1
|
Class 1
|
Wavelength, nm
|
905nm
|
905nm
|
905nm
|
905nm
|
Max. measuring range, m
|
600m
|
600m
|
600m
|
600m
|
Measurement Accuracy, m
|
±1m
|
±1m
|
±1m
|
±1m
|
Reticle
|
|
|
|
|
Click value, H/V, mm at 100 m
|
|
|
|
|
Click range, H/V, mm at 100 m
|
|
|
|
|
Number of preloaded reticles
|
|
|
|
|
Video Recorder
|
|
|
|
|
Video / photo resolution, pixel
|
1024x768, 0.39 inch
|
1024x768, 0.39 inch
|
1024x768, 0.39 inch
|
1024x768, 0.39 inch
|
Video / photo format
|
(.mp4)
|
(.mp4)
|
(.mp4)
|
(.mp4)
|
Built-in memory, Gb
|
Built-in EMMC (16 GB)
|
Built-in EMMC (16 GB)
|
Built-in EMMC (16 GB)
|
Built-in EMMC (16 GB)
|
Wi-Fi
|
|
|
|
|
Wireless Protocol
|
|
|
|
|
Wireless Standard
|
|
|
|
|
Frequency, GHz
|
|
|
|
|
Environmental Characteristics
|
|
|
|
|
Degree of protection, IP code (IEC60529)
|
IP67
|
IP67
|
IP67
|
IP67
|
Operating temperature range, °C
|
-30 °C to +55 °C (-22 °F to 131°F)
|
-30 °C to +55 °C (-22 °F to 131°F)
|
-30 °C to +55 °C (-22 °F to 131°F)
|
-30 °C to +55 °C (-22 °F to 131°F)
|
Connections and Compatibilities
|
|
|
|
|
Max. recoil power on rifled weapon (Eo), Joules
|
1000g/0.4ms
|
1000g/0.4ms
|
1000g/0.4ms
|
1000g/0.4ms
|
Shock resistance on the smooth-bore rifles, caliber
|
|
|
|
|
Mounting brackets on weapon
|
|
|
|
|
Supported Appplication
|
|
|
|
|
Power Supply
|
|
|
|
|
Output voltage, V
|
|
|
|
|
Battery type
|
Replaceable and Rechargeable Li-ion Battery
|
Replaceable and Rechargeable Li-ion Battery
|
Replaceable and Rechargeable Li-ion Battery
|
Replaceable and Rechargeable Li-ion Battery
|
Capacity, mAh
|
|
|
|
|
Operating time on battery pack (at t=22°C), h *
|
≥6h (25 °C, with hotspot off)
|
≥6h (25 °C, with hotspot off)
|
≥5h (25 °C, with hotspot off)
|
≥5h (25 °C, with hotspot off)
|
External power supply, V
|
5V DC, 2 A
Supports External Power Supply |
5V DC, 2 A
Supports External Power Supply |
5V DC, 2 A
Supports External Power Supply |
5V DC, 2 A
Supports External Power Supply |
Weight & Size
|
|
|
|
|
Body Material |
|
|
|
|
Dimensions mm
|
214.6 mm x 67.0 mm x 87.1 mm
|
226.8 mm x 73.3 mm x 87.1 mm
|
214.6 mm x 67.0 mm x 87.1 mm
|
226.8 mm x 73.3 mm x 87.1 mm
|
Weight kg
|
518g without Battery
|
585g without Battery
|
518g without Battery
|
585g without Battery
|
Warranty
|
|
|
|
|
Warranty on Device, years
|
|
|
|
|
Warranty on Batteries, years
|
|
|
|
|
Trade Data
|
|
|
|
|
SKU (Model #)
|
PH35L 2.0
|
PH50L 2.0
|
PQ35L 2.0
|
PQ50L 2.0
|
Ultra clear image, impressive detail recognition
High thermal sensitivity, perfect detail recognition
Every detail matters when identifying targets. Less than 20 mK NETD helps identify small details of objects from the backgrounds easily and clearly even in the hardest weather and low- light conditions.
Vivid, informative, and layered images
Even when hunting with thermal imaging, PANTHER 2.0's powerful thermal camera still provides you with the most vivid and layered images for reliable game identification and maximum hunting success.
Built-in laser range finder provides an accurate game
Distance from the game is essential to ensure a safe shot. The built-in LRF provides an accurate distance measurement, allowing you to determine the exact time of your shooting.
Internal ballistic calculation for long-range shooting
The PANTHER 2.0 is HIKMICRO's first thermal scope with ballistic calculation, ensuring accurate shooting at any distance. The internal ballistics algorithm calculates the suggested aiming point based on the exact distance measured by the built-in laser ranging finder to ensure precise long-range shooting.
*Note: Zeroing PANTHER 2.0 at the distance you are accustomed to before using ballistic calculation. |
Compact Size and Rugged Design for High Reliability
Integrated design provides hassle-free experience
PANTHER LRF 2.0 continues a one-style design with compact and reasonable structure, it provides hunters with a hassle-free operation experience.
Rugged and reliable for toughest condition
PANTHER LRF 2.0 works well even in extreme temperature surroundings from -30 °C to +55 °C. IP67 waterproof rating keeps it well in conditions of high humidity/dust and heavy rain.
High shock resistance
Metal housing and rugged components enable PANTHER 2.0 high shock resistance up to 1000g/0.4ms on larger calibers to .375 H&H, 12-gauge and 9.3 × 64.
Replaceable and rechargeable battery
Two batteries and an external battery charger are included in the package box, which gives the freedom to use as long as needed even a full day.
More Advantage
Extra Information
Brand:
HikMicro
