Description

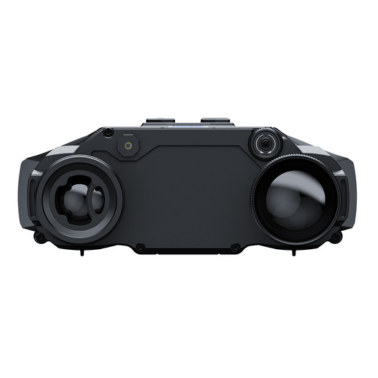

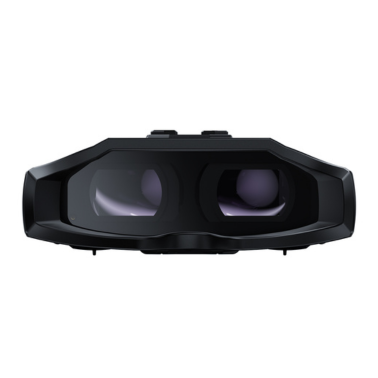

PARD Harrier 480 (35mm with LRF) Thermal Binocular
Introducing the Harrier 480 Thermal Imaging Binocular, perfect for precision in hunting, wildlife observation, and surveillance. Combining advanced thermal imaging technology with durable features, these binoculars offer unmatched clarity and performance in various conditions.
The Harrier 480 features an uncooled vanadium oxide (VOx) thermal sensor with a 480 x 360 resolution and 12µm pixel size, offering a detection range of up to 1800 metres. The Pard IREA image engine ensures exceptional thermal image quality. With a 35mm objective lens providing 2.4x optical magnification and digital zoom up to 8x, these binoculars deliver detailed visuals.
The high-resolution LCD display (640 x 480) features various scene modes (city, rain, forest) and image modes (WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY) for enhanced visibility. Advanced features include a gyroscope, electronic compass, picture-in-picture, loop recording, and LRF detection up to 1000 metres.
Connectivity includes USB Type-C, HDMI, and WiFi for the PardVision2 app. The Lithium Ion 21700 battery provides up to eight hours of operation, with external Type-C power support. IP67 rated, it operates from -30°C to +55°C and weighs 553.5g, ensuring ease of use.
Key Features (HA4-35/LRF);
- Thermal Sensor: VOx sensor with 480 x 360 resolution, detecting targets up to 1800m
- Optics: 2.4x optical magnification (35mm lens), digital zoom up to 8x
- Display: High-res LCD (640 x 480) with various scene and image modes
- Advanced Features: Gyroscope, electronic compass, PIP mode, loop recording, LRF detection up to 1000m
- Connectivity: USB Type-C, HDMI output, WiFi for PardVision2 app
- Power Supply: Lithium Ion 21700 battery, up to 8 hours operation
Range Specifications (HA4-35/LRF);
Model | HA4-35/LRF | HA6-35/LRF | |
Classification | Thermal Imaging Binocular | Thermal Imaging Binocular | |
Sensor | |||
Type | Uncooled Vox(vanadium oxide) | Uncooled Vox(vanadium oxide) | |
Resolution(pixel) | 480*360 | 640*512 | |
Pixel Size(µm) | 12*12 | 12*12 | |
NETD(mK) | ≤20mK(0.020℃) | ≤20mK(0.020℃) | |
Frame rate(Hz) | 50 | 50 | |
Detection distance(m) | 1800 | 1800 | |
Image Engine | Pard IREA | Pard IREA | |
Objective lens(mm) | 35 | 35 | |
Optical Magnification(x) | 2.4 | 1.8 | |
Digital zoom(x) | 2/4/6/8 | 2/4/6/8 | |
Field of view | Horizontal | 9.4° | 12.5° |
Vertical | 7.1° | 10.0° | |
Diagonal | 11.8° | 16.0° | |
Focus range | 3m-∞ | 3m-∞ | |
Display | |||
Type | LCD | LCD | |
Resolution(pixel) | 640*480 | 640*480 | |
Scene Mode | City/Rain/Forest | City/Rain/Forest | |
Image mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY | |
Eye relief(mm) | 25 | 25 | |
Diopter adjustment(D) | -5~3 | -5~3 | |
Photo / Video | |||
Photo resolution(pixel) | 2048x1536 | 2048x1536 | |
Photo format | .JPG | .JPG | |
Video resolution(pixel) | 1024*768 | 1024*768 | |
Video format | .mp4 | .mp4 | |
Storage(GB) | Micro SD card(128 GB,Max) | Micro SD card(128 GB,Max) | |
Main function | |||
LRF detection range(m/yds) | 1000/1200 | 1000/1200 | |
PIP | Yes | Yes | |
Gyroscope | Yes | Yes | |
Loop recording | Yes | Yes | |
E-compass | Yes | Yes | |
Shutter | Mechanical shutter | Mechanical shutter | |
Microphone | Yes | Yes | |
Firmware Upgrade | Yes | Yes | |
Interfaces | |||
USB Tpye-C | Yes | Yes | |
HDMI Output | Yes | Yes | |
WiFi | Yes | Yes | |
Supported Apps | PardVision2 | PardVision2 | |
Power Supply | |||
Battery type | Lithium Ion 21700*1 | Lithium Ion 21700*1 | |
Output voltage(V) | 3.7 | 3.7 | |
Operating time(h) | ≤8 | ≤8 | |
External power supply(V) | Type-C | Type-C | |
Environmental characteristic | |||
Degree of protection | IP67 | IP67 | |
Operating Temp(°C/°F) | -30 ~ +55 / -22 ~ +131 | -30 ~ +55 / -22 ~ +131 | |
Material | |||
Objective lens | All-glass multi-coated lens | All-glass multi-coated lens | |
Measurement | |||
Product dimension(with LRF, L x W x H, mm) | 220 x 137 x 58 mm | 220 x 137 x 58 mm | |
N.W/pcs(with LRF&battery, g) | 553.5g | 553.5g |
