Description

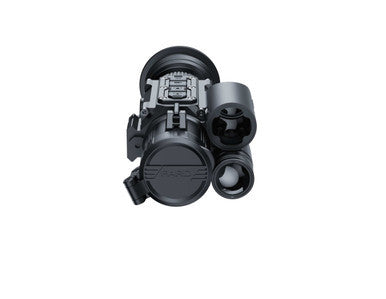

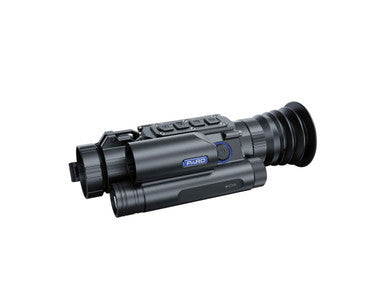

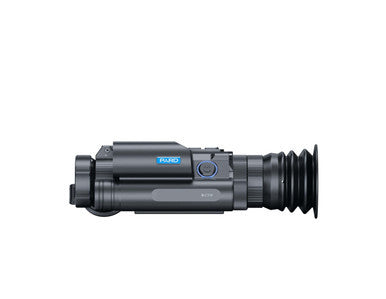

PARD NV008SP2 (70mm - 940nm) Night vision Scope
Introducing the PARD NV008SP2 Night Vision Scope (70mm - 940nm) — your ultimate companion for exploring the darkness. With advanced 940nm infrared illumination and a 70mm objective lens, it offers exceptional clarity and detail in low-light conditions. Perfect for hunting, wildlife observation, or surveillance, its user-friendly design and rugged construction ensure reliability and ease of use. Uncover the secrets of the night with the PARD NV008SP2.
Key Features
- Resolution(pixel) 2688*1520
- Objective Lens(mm) 50/70
- Battery Type Lithium Ion18650 / Operating time(h,max) 8
- Storage(GB) Micro SD card (Max. 128GB)
Range Specifications
|
Model
|
NV008SP2
|
|
Sensor
|
CMOS |
| Objective Lens | 50/70 |
|
Magnification, x
|
4.5x/6.5x |
|
Field of view (HxV), degrees / m@100m
|
(Horizontal) 6.4º/ 4.6º
(Vertical) 4.8º/ 3.4º (Diagonal) 8.6º/ 5.7º |
|
Detection range, m (thermal)
|
|
|
Sensor
|
|
|
Type
|
|
|
Resolution, pixels
|
2688*1520 |
|
Pixel pitch, µm
|
2.9 |
|
NETD, mK
|
|
|
Frame rate, Hz
|
Color mode:60/Mono:30 |
|
Optics
|
|
|
Objective lens
|
50/70
|
|
Magnification, x
|
4.5x/6.5x |
|
Field of view (HxV), degrees / m @ 100 m
|
(Horizontal) 6.4º/ 4.6º
(Vertical) 4.8º/ 3.4º (Diagonal) 8.6º/ 5.7º |
|
Eye relief, mm
|
35 |
|
Display
|
|
|
Type
|
OLED
|
|
Resolution, pixels
|
1440*1080 |
|
Range Performance
|
|
|
Detection range, m (thermal)
|
5-1000(LRF version) |
| Laser Rangefinder |
|
|
Safety Class for laser equipment according IEC 60825-1:2014
|
VCSEL |
|
Wavelength, nm
|
850/940 |
|
Max. measuring range, m
|
|
|
Measurement Accuracy, m
|
|
|
Min. Measuring Range
|
350
|
|
Click value, H/V, mm at 100 m
|
|
|
Click range, H/V, mm at 100 m
|
|
|
Number of preloaded reticles
|
6
|
|
Video Recorder
|
|
|
Video / photo resolution, pixel
|
1440*1080 |
|
Video / photo format
|
.mp4 |
|
Built-in memory, Gb
|
Micro SD card (Max. 128GB) |
|
Wi-Fi
|
|
|
Wireless Protocol
|
|
|
Wireless Standard
|
|
|
Frequency, GHz
|
|
|
Environmental Characteristics
|
|
|
Degree of protection, IP code (IEC60529)
|
|
|
Operating temperature range, °C
|
-20 – 50 |
|
Connections and Compatibilities
|
|
|
Max. recoil power on rifled weapon (Eo), Joules
|
6000 |
|
Shock resistance on the smooth-bore rifles, caliber
|
|
|
Mounting brackets on weapon
|
|
|
Supported Appplication
|
PardVision |
|
Power Supply
|
|
|
Output voltage, V
|
3.7 |
|
Battery type
|
Lithium Ion18650 |
|
Capacity, mAh
|
|
|
Operating time on battery pack (at t=22°C), h *
|
8
|
|
External power supply, V
|
USB Type-C |
|
Weight & Size
|
|
| Body Material | 495/450 |
|
Dimensions mm
|
175 x 70 x 55 |
| Weight |
|
|
Warranty
|
|
|
Warranty on Device, years
|
|
|
Warranty on Batteries, years
|
|
|
Trade Data
|
|
|
SKU (Model #)
|
NV008SP2 |
Extra Information
Brand:
PARD
