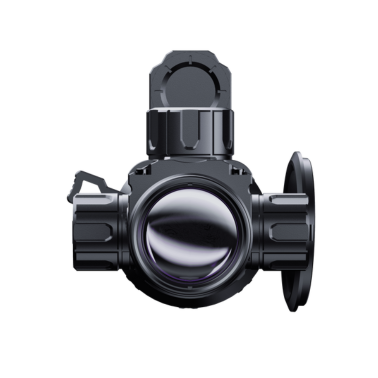

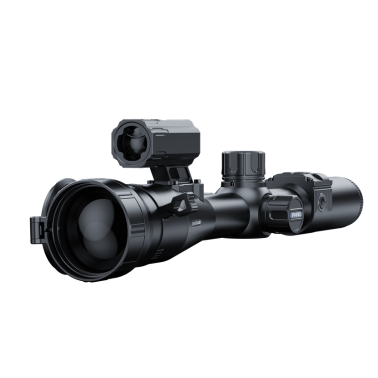

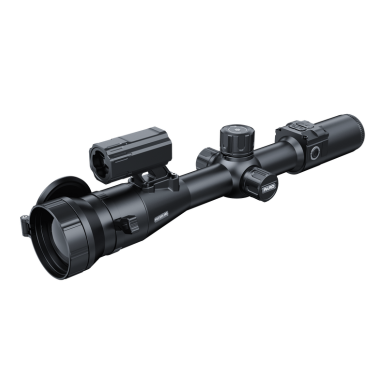

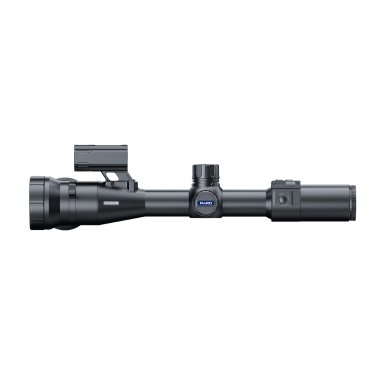

Pard Pantera 480 (50mm with LRF) Thermal Riflescope

SKU:
PA4-50/LRF
$3,599.00

Description

Pard Pantera 480 (50mm with LRF) Thermal Riflescope



Introducing the Pantera 480 Thermal Imaging Scope, the ultimate tool for precision in hunting, wildlife observation, and outdoor surveillance. This advanced scope combines cutting-edge thermal imaging technology with robust features to deliver unmatched clarity and performance in all conditions. Ideal for hunters, researchers, and security professionals, the Pantera 480 enhances your ability to detect and identify targets from great distances.

At its core, the Pantera 480 features an uncooled vanadium oxide (Vox) thermal sensor with a resolution of 480 x 360 pixels and a 12µm pixel size. It offers a detection distance of up to 2600 metres ensuring sharp, detailed thermal images even in complete darkness. The PARD IREA image engine guarantees exceptional image quality, enhancing target identification and situational awareness.

The scope offers optical magnification of 3.0x, along with digital zoom up to 8x. The high-resolution IPS display (800 x 800 pixels) includes six reticle styles and four reticle colours, as well as various scene and image modes to adapt to different environments.

Advanced features of the Pantera 480 include a ballistic calculator, gyroscope, hot track, picture-in-picture mode, loop recording, and recoil-activated recording. Connectivity options such as USB Type-C, HDMI output, and WiFi support for the PardVision2 app ensure seamless integration and easy data transfer. The Lithium Ion 18650 battery provides up to six hours of operation, with external Type-C power support for extended use.

Built to endure harsh conditions, the Pantera 480 has an IP67 protection rating and operates in temperatures from -30°C to +55°C. It is compact and lightweight, making it easy to handle in the field.



Key Features (PA4-50/LRF)

  • High-resolution 480 x 360 pixel uncooled VOx sensor
  • USB Type-C, HDMI, WiFi compatible with PardVision2 app
  • Quality IPS display with 800 x 800 resolution, six reticle styles
  • Advanced Features: LRF , ballistic calculator, gyroscope, PIP, hot track
  • Powered by Li-ion 18650 battery, up to 5 hours



Range Specifications (PA4-50/LRF)

Model PA4-35 PA4-35/LRF PA4-50 PA4-50/LRF PA6-50 PA6-50/LRF PA6Z-2550/LRF
Classification Thermal Imaging Scope Thermal Imaging Scope Thermal Imaging Scope Thermal Imaging Scope
Sensor
Type Uncooled VOx(vanadium oxide) Uncooled VOx(vanadium oxide) Uncooled VOx(vanadium oxide) Uncooled VOx(vanadium oxide)
Resolution(pixel) 480*360 480*360 640*512 640*512
Pixel size(µm) 12*12 12*12 12*12 12*12
NETD(mK) ≤20 mK(0.02℃) ≤20 mK(0.02℃) ≤20mK(0.02℃) ≤20mK(0.02℃)
Frame rate(Hz) 50 50 50 50
Detection distance(m) 1800 2600 2600 1200 & 2600
Optics
Objective Lens(mm) 35 50 50 25 & 50
Optical Magnification(x) 2.1 3.0 2.2 1.1 & 2.2
Digital Zoom(x) 2/4/6/8 2/4/6/8 2/4/6/8 2/4/6/8
Field of view Horizontal 7.1° 5.0° 7.0° 14.0° & 7.0°
Vertical 7.1° 5.0° 7.0° 14.0° & 7.0°
Diagonal 10.0° 7.0° 9.9° 19.8° & 9.9°
Eye Relief(mm) 100 100 100 100
Diopter Adjustment(D) -5~+3 -5~+3 -5~+3 -5~+3
Display
Type IPS IPS IPS IPS
Resolution(pixel) 800*800 800*800 800*800 800*800
Reticle Style 6 6 6 6
Reticle Color Red/White/Yellow/Green Red/White/Yellow/Green Red/White/Yellow/Green Red/White/Yellow/Green
Scene Mode City/Rain/Forest City/Rain/Forest City/Rain/Forest City/Rain/Forest
Image mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel) 1536*1536 1536*1536 1536*1536 1536*1536
Photo Format .JPG .JPG .JPG .JPG
Video Resolution(pixel) 768*768 768*768 768*768 768*768
Video Format .mp4 .mp4 .mp4 .mp4
Storage(GB) Micro SD card(Max. 128) Micro SD card(Max. 128) Micro SD card(Max. 128) Micro SD card(Max. 128)
Image Engine Pard IREA Pard IREA Pard IREA Pard IREA
Main Function
LRF detection range(m/yd) LRF Variant 1000/1200 LRF Variant 1000/1200 LRF Variant 1000/1200 LRF Variant 1000/1200
Ballistic Calculator Yes Yes Yes Yes
PIP Yes Yes Yes Yes
Hot Track Yes Yes Yes Yes
Gyroscope Yes Yes Yes Yes
Recoil-activated recording Yes Yes Yes Yes
Loop Recording Yes Yes Yes Yes
E-compass Yes Yes Yes Yes
Shutter Mechanical Shutter Mechanical Shutter Mechanical Shutter Mechanical Shutter
Microphone Yes Yes Yes Yes
Firmware Upgrade Yes Yes Yes Yes
Connections
USB Tpye-C Yes Yes Yes Yes
HDMI Output Yes Yes Yes Yes
WiFi Yes Yes Yes Yes
Supported Apps PardVision2 PardVision2 PardVision2 PardVision2
Power Supply
Battery Type Lithium Ion 18650*1 Lithium Ion 18650*1 Lithium Ion 18650*1 Lithium Ion 18650*1
Output Voltage(V) 3.7 3.7 3.7 3.7
Operating Time(h) ≤6 ≤6 ≤6 ≤6
External power supply(V) Type-C Type-C Type-C Type-C
Environmental Characteristic
Degree of protection IP67 IP67 IP67 IP67
Operating Temp(°C/°F) -30 ~ +55 / -22 ~ +131 -30 ~ +55 / -22 ~ +131 -30 ~ +55 / -22 ~ +131 -30 ~ +55 / -22 ~ +131
Recoil Resistance(J) 6000 6000 6000 6000
Material
Housing Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy
Objective Lens All-glass multi-coated lens All-glass multi-coated lens All-glass multi-coated lens All-glass multi-coated lens
Measurement
Product Dimension/with LRF(L * W * H, mm) 352 x 93 x 82 mm  364 x 93 x 82 mm 364 x 93 x 82 mm  369 x 82 x 93mm
N.W/pcs(with LRF&battery, g) 622g 681.5g 681.5g 759g
