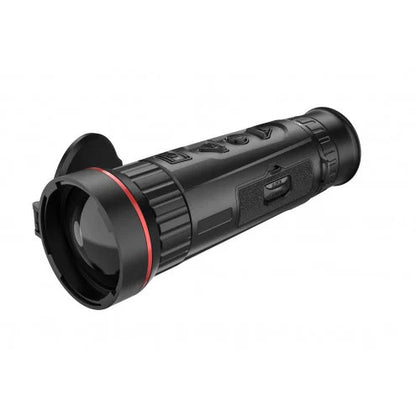

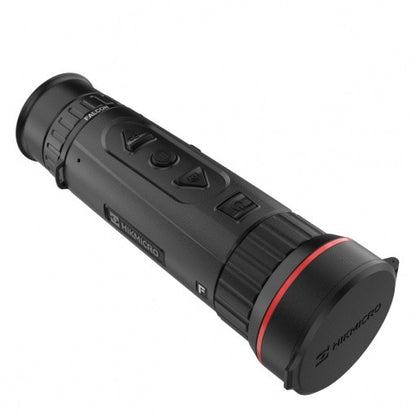

HIKMICRO FALCON FQ50 Thermal Monocular

Introducing the HikMicro Falcon Thermal Monocular, your ultimate outdoor companion. With its high-resolution sensor, exceptional sensitivity, and wide field of view, it delivers crystal-clear thermal imagery and a maximum detection range of up to 2600 meters. You can easily adjust settings, from magnification to image enhancement, using intuitive buttons. The Falcon FQ50's comfortable tube-style design and efficient battery management make it the perfect tool for exploring the thermal world. Elevate your outdoor adventures with this game-changing monocular.

Proposed Uses (FQ50);

• Thermal Identification Range for various sized targets;
  - Small (Rabbit) = 200
  - Sml-Med (Fox) = 350
  - Medium (Pig) = 350
  - Med-Lge (Deer) = 500

Key Features (FQ50);

• Equipped with VOx Uncooled Focal Plane Arrays for exceptional thermal imaging.

• Operates at a frame rate of 50Hz for smooth and real-time thermal imaging.

• Features a 12μm pixel interval for sharp and detailed thermal images.

• Capable of detecting targets at impressive distances of up to 1200m, 1800m, and 2600m, depending on the model.

• Offers various display palettes (e.g., black hot, white hot, red hot, fusion) and supports digital zoom (1×, 2×, 4×, 8×) for versatile thermal image visualization.

HikMicro FALCON Specifications

Ultra Clear Image. Impressive Detail Recognition

1. Extremely high thermal sensitivity, NETD<20mK



High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.

2. High definition thermal detector, up to 640x512 @12μm



Equipped with 12μm high-end thermal detector and up to 640x512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.

3. Super large aperture f/0.9 lens, 19% improvement



With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.



4. Image Pro, enhanced self-developed image processing algorithm



Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.

Significantly Improved Design. Exceptional Ease-to-use.

1. Ergonomic cylindrical shape design for better operation experience



The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.



2. Perfect component for intuitive operation



The component design has been greatly improved, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.

3. Robust magnesium housing and lens coating material for long-time use



The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It's perfect for constant and often hard use.

Replaceable and Rechargeable High Capacity Battery, Not-stop Observation



On one battery pack the device can run up to 7 hours. With the convenient replaceable feature, another battery unit can be used as the spare one for non-stop operation. Besides, power banks connected via a Type-C interface can be used as an external power supply.

See Further or Wider. Catch More Details



1. Long detection range up to 2600m and very large field of view up to 22m@100m

Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.

2. Powerful digital zoom, up to 8x



With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.

More Advantages
