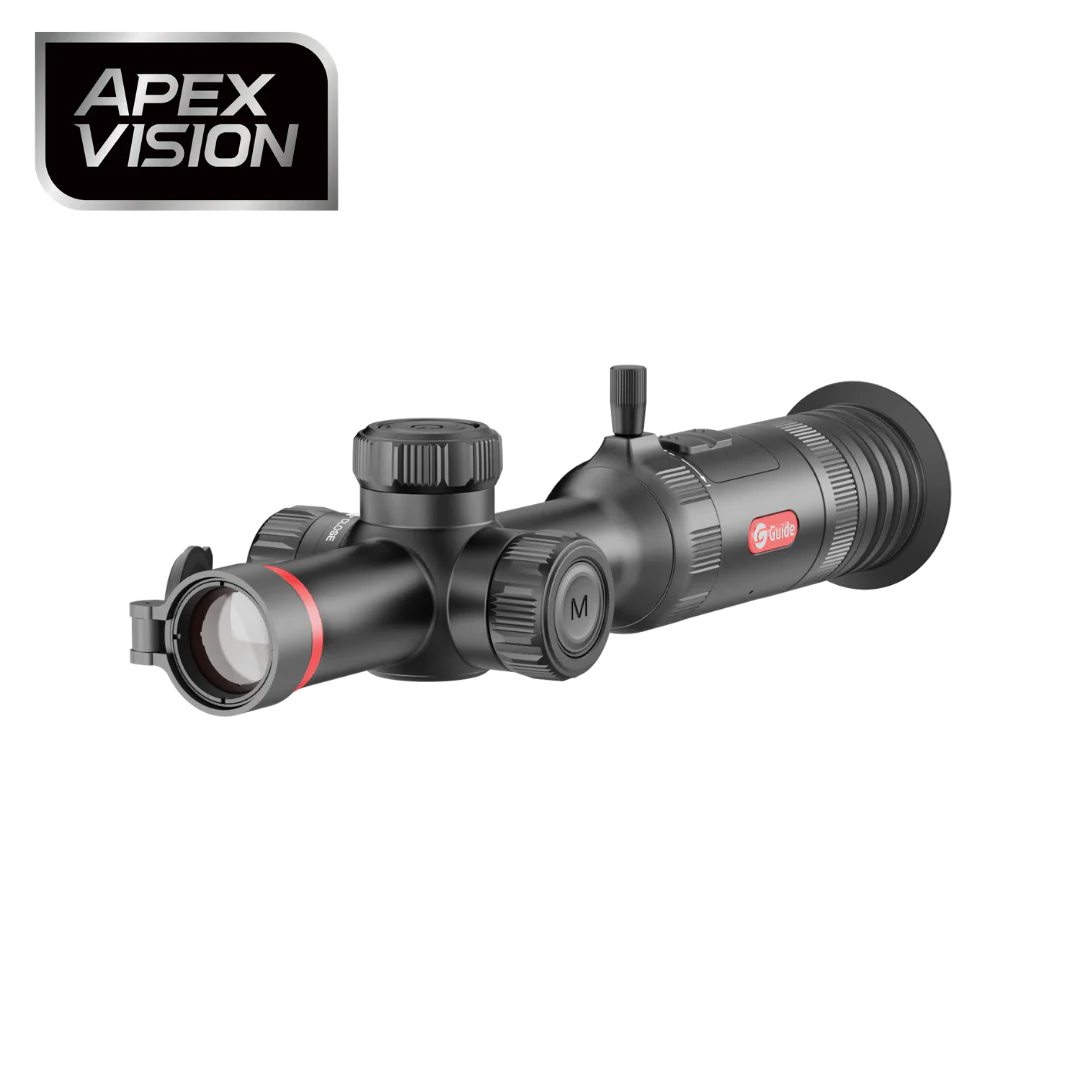

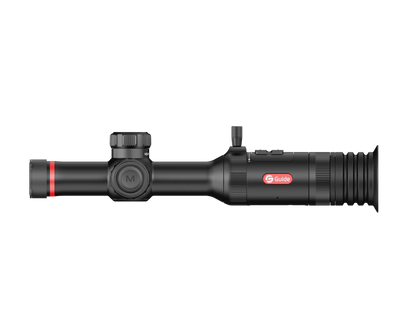

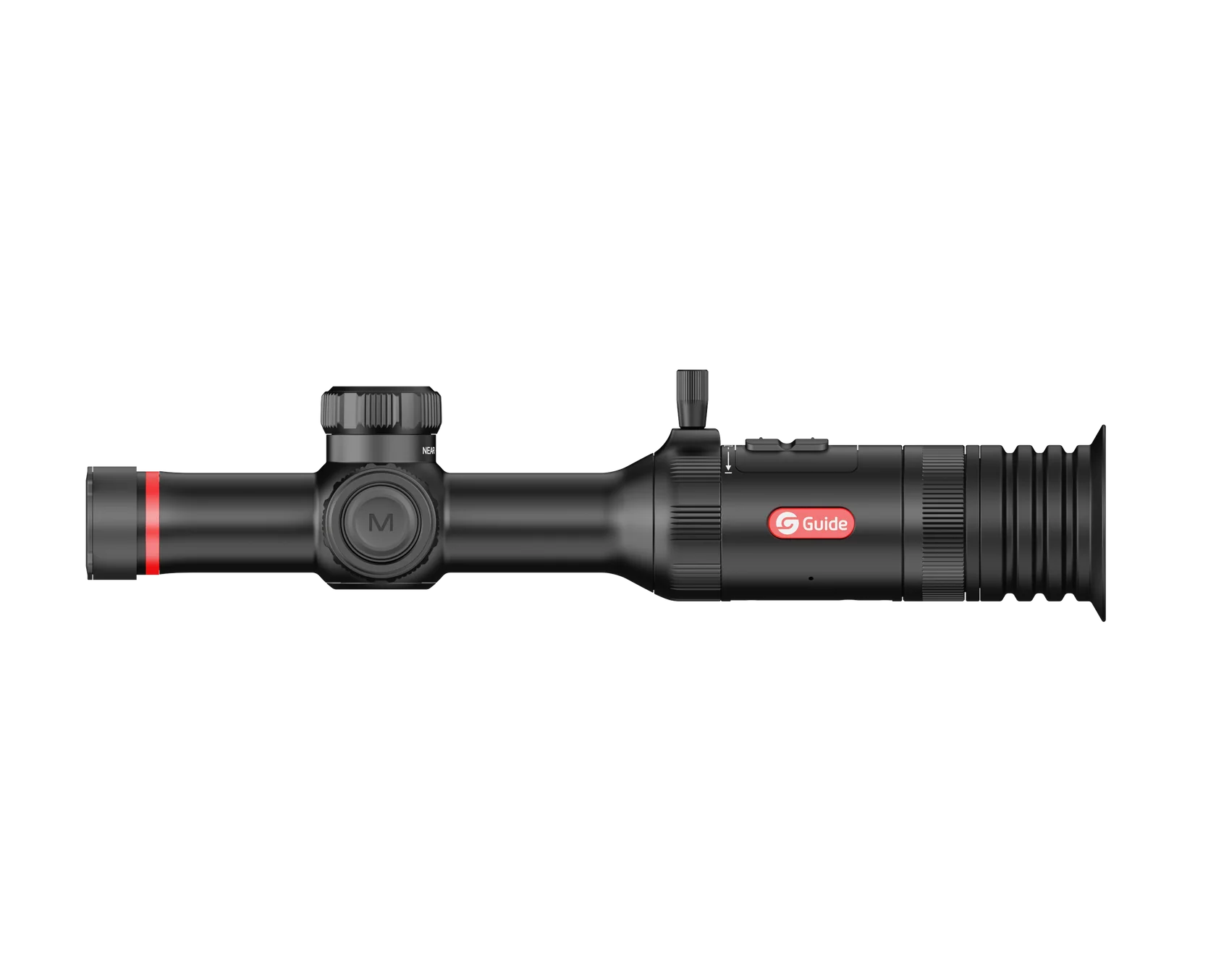

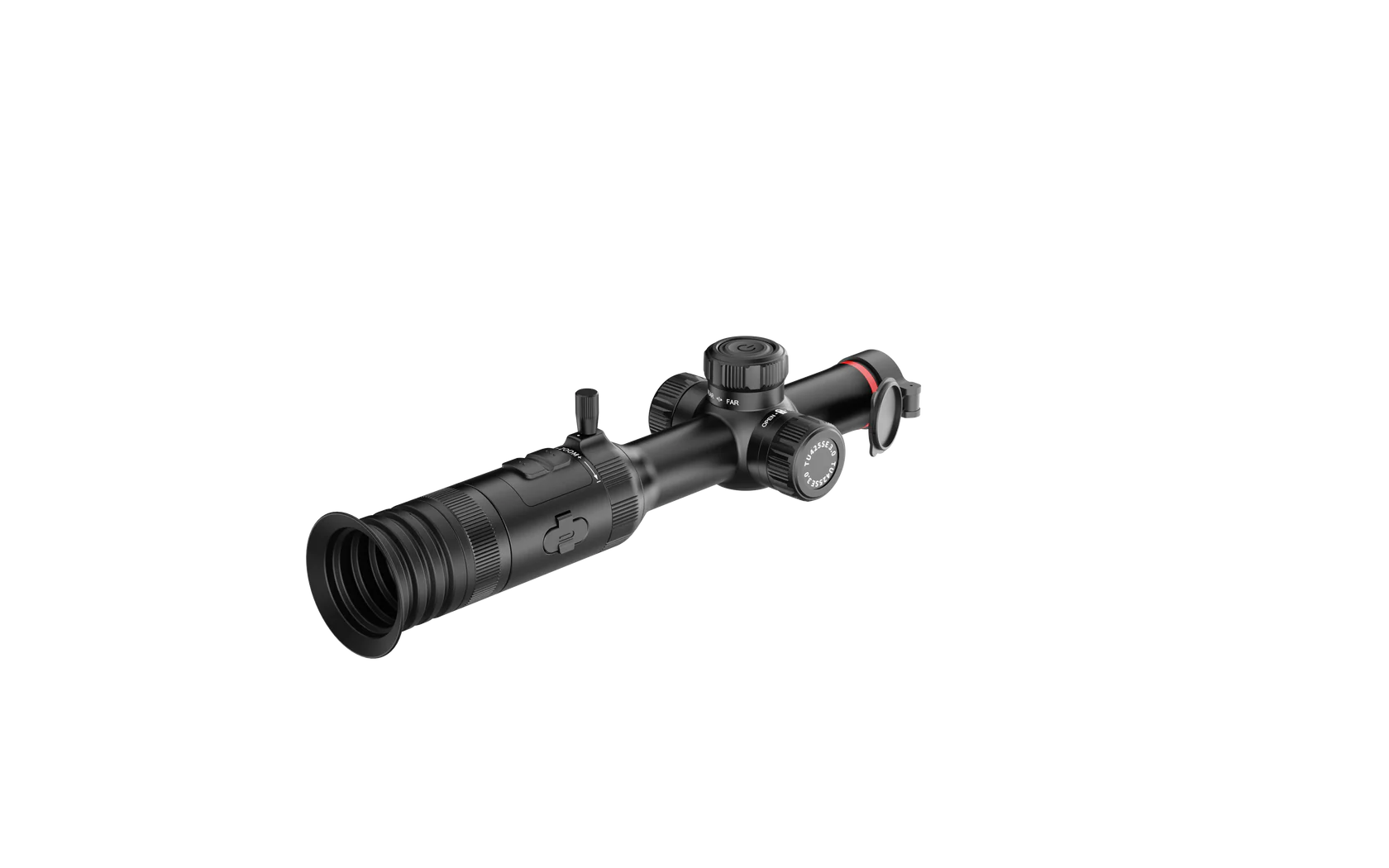

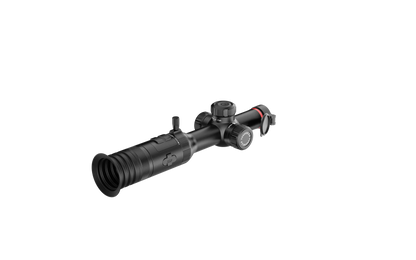

GUIDE TU425S Thermal Scope 400x300

The GUIDE TU425S is GUIDE's compact entry point into the APEX VISION infrared imaging system — delivering next-generation AI-powered thermal performance in a short, lightweight tube scope built around a 400×300 sensor and 25mm lens. With NETD <15mK sensitivity, a fast F1.0 aperture, and detection out to 1,300 metres, the TU425S is purpose-built for close-to-mid-range hunting where a compact, manageable optic matters as much as the image quality. A conventional zoom ring at the eyepiece means it handles exactly like a traditional daytime scope — right out of the box, complete with a quick-release (QD) scope mount.

Features & Specifications

• 400×300 thermal sensor, 12μm pixel pitch — clear thermal detail in a compact, lightweight package
• NETD <15mK — high thermal sensitivity for sharp heat separation across all terrain and background conditions
• 8–14μm response waveband, 50Hz full frame rate
• 25mm F1.0 objective lens — wider field of view ideal for close-to-mid-range target acquisition
• Detection range up to 1,300 metres
• APEX VISION AI infrared imaging system — intelligent image enhancement for sharper detail, cleaner target separation and improved performance in all conditions
• 3.1x base magnification with up to 4x digital zoom via conventional zoom ring — handles identically to a traditional daytime scope
• 0.49-inch AMOLED display — bright, clear image with low eye strain during extended sessions
• Dual battery system — 1x internal rechargeable (USB-C) plus 1x external 18650, up to 12 hours continuous operation
• 32GB internal storage — onboard photo, video and recoil-activated recording
• 30mm tube — fits standard 30mm scope rings
• Dual-band Wi-Fi — app connectivity for live viewing and remote operation
• IP67 waterproof and dustproof — built for Australian field conditions in any weather
• Dimensions: 311×89×76mm
• Net weight: approx. 575–620g
• Operating temperature: -20°C to 50°C
• Supplied with quick-release (QD) scope mount

What's Included

• GUIDE TU425S thermal riflescope
• Quick-release (QD) scope mount
• 18650 battery
• Charging cable
• Lens cloth and caps
