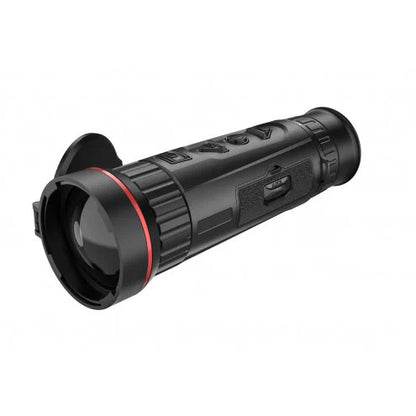

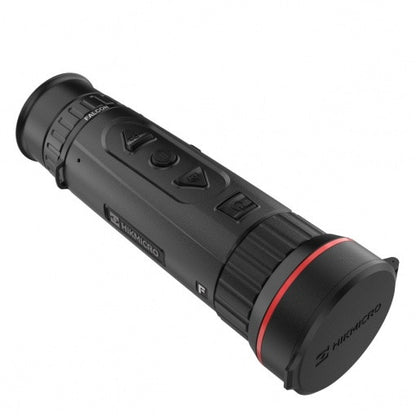

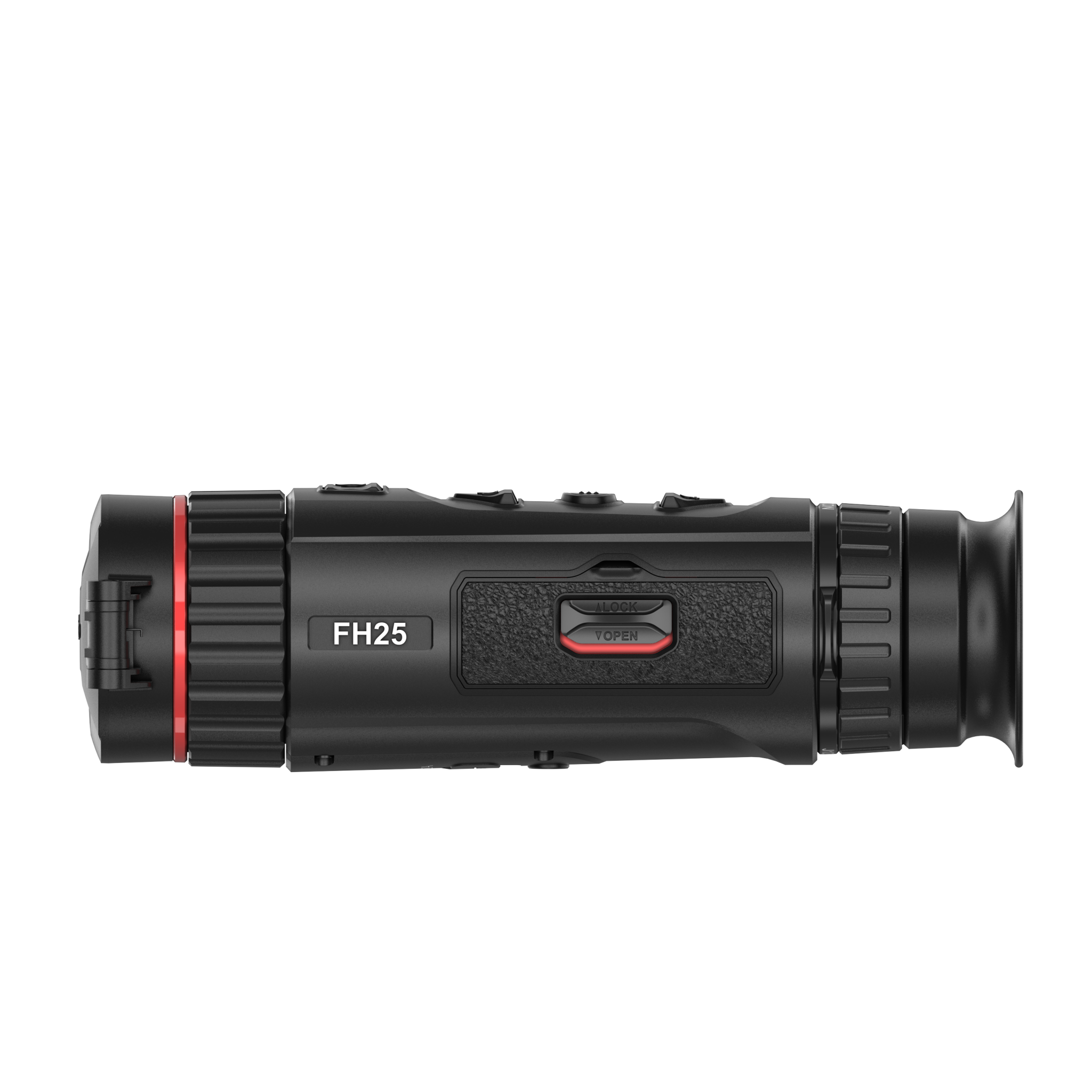

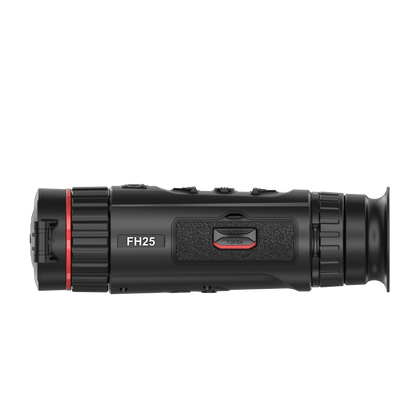

HIKMICRO FALCON FH25 Thermal Monocular

HIKMICRO FALCON FH25 Thermal Monocular

The HIKMICRO FALCON FH25 is a compact handheld thermal monocular built for versatile use in the field. Equipped with a high-sensitivity 384x288 VOx uncooled thermal detector and a crisp 1024x768 OLED display, it delivers a clear thermal image even in total darkness. With up to 7 hours of continuous operation, IP67 weatherproofing, and HIKMICRO's Image Pro processing technology, the FH25 is a reliable choice for hunting, hiking, search and rescue, and outdoor travel.

SPECIFICATIONS

Image Sensor: VOx Uncooled Focal Plane Arrays

Resolution: 384x288

Pixel Interval: 12um

NETD: Less than 20mK (@25C, F# = 1.0)

Frame Rate: 50Hz

Focal Length: 25mm

Aperture: F1.0

Optical Magnification: 2.17x

Digital Zoom: 1x, 2x, 4x, 8x

Field of View (HxV): 10.5 x 7.9 degrees / 18.4m x 13.8m @100m

Min. Focusing Distance: 2.5m

Detection Range: 1200m

Response Waveband: 8um to 14um

Display: 0.39 inch OLED, 1024x768

Palettes: Black Hot, White Hot, Red Hot, Fusion

FFC Mode: Auto, Manual, External Correction

Storage: Built-in 64GB

Video Recording: Yes

Snapshot Capture: Yes

Hotspot: Yes

Hot Track: Yes

Standby Mode: Yes

Battery: Replaceable and Rechargeable Li-ion

Battery Life: Up to 7 hours (@25C)

Power: 5V, 1.5W

IP Rating: IP67

Operating Temperature: -30C to +55C

Humidity: 90% or less

Weight: 500g

Dimensions: 190.3 x 58.3 x 65.2mm

SUMMARY

The HIKMICRO FALCON FH25 packs serious thermal performance into a lightweight 500g body. With a high-sensitivity thermal detector, 64GB onboard storage, and up to 7 hours of battery life, it is ready for extended use in the field. Whether you are hunting, hiking, or on a search and rescue operation, the FH25 delivers reliable thermal imaging in any environment.

Ultra Clear Image. Impressive Detail Recognition

1. Extremely high thermal sensitivity, NETD<20mK



High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.

2. High definition thermal detector, up to 640x512 @12μm



Equipped with 12μm high-end thermal detector and up to 640x512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.

3. Super large aperture f/0.9 lens, 19% improvement



With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.



4. Image Pro, enhanced self-developed image processing algorithm



Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.

Significantly Improved Design. Exceptional Ease-to-use.

1. Ergonomic cylindrical shape design for better operation experience



The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.



2. Perfect component for intuitive operation



The component design has been greatly improved, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.

3. Robust magnesium housing and lens coating material for long-time use



The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It's perfect for constant and often hard use.

Replaceable and Rechargeable High Capacity Battery, Not-stop Observation



On one battery pack the device can run up to 7 hours. With the convenient replaceable feature, another battery unit can be used as the spare one for non-stop operation. Besides, power banks connected via a Type-C interface can be used as an external power supply.

See Further or Wider. Catch More Details



1. Long detection range up to 2600m and very large field of view up to 22m@100m

Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.

2. Powerful digital zoom, up to 8x



With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.

More Advantages
