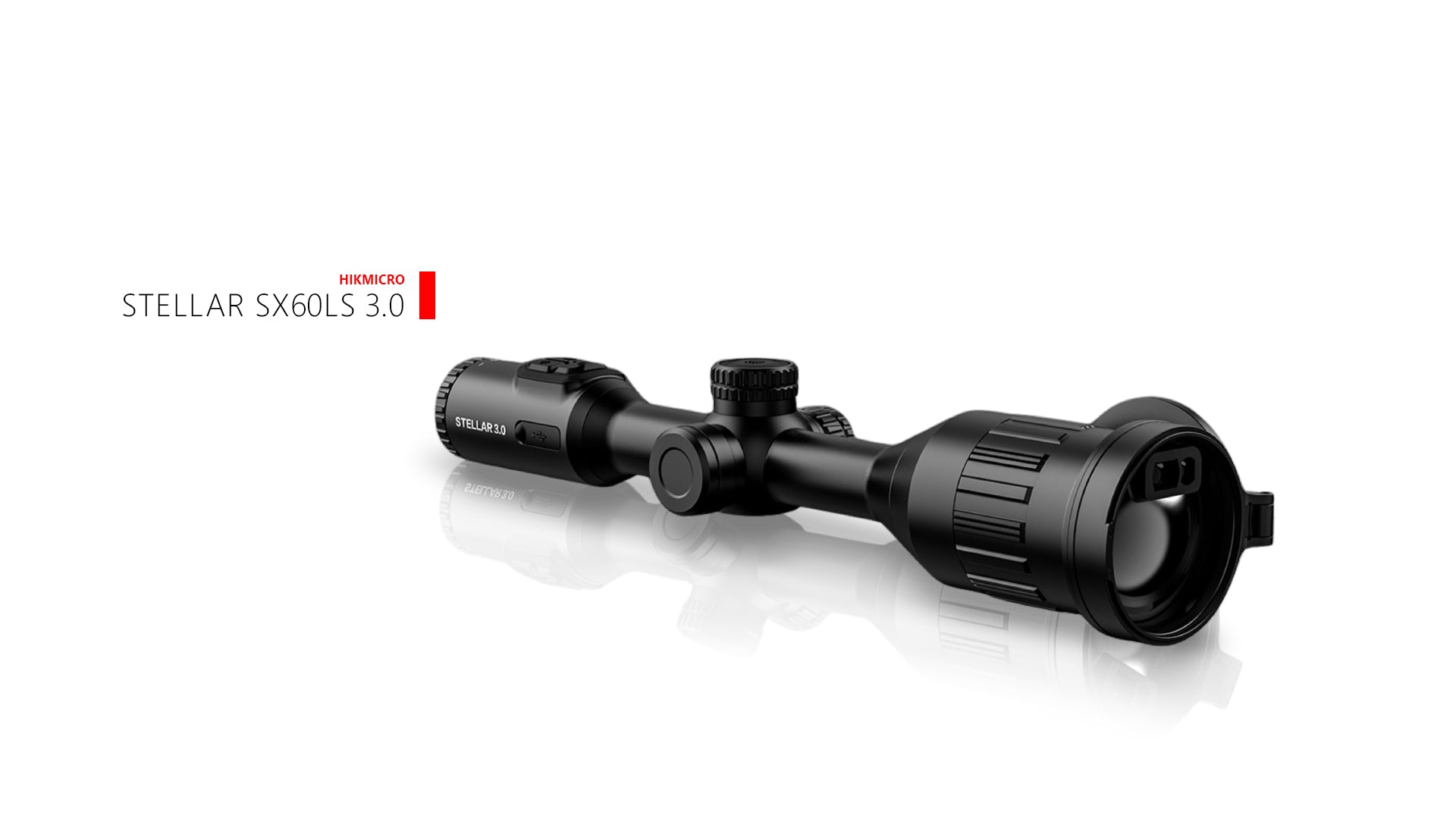

HIKMICRO STELLAR SX60LS 3.0 1280x1024 50HZ Thermal Scope

The HIKMICRO STELLAR SX60LS 3.0 is the flagship thermal scope in the Stellar 3.0 series — built for hunters who demand elite-level image quality, long-range detection, and precision shooting capability in a traditional 30mm tube format. Equipped with a 1280 × 1024 @12μm thermal detector running at 50Hz, a 60mm F1.0 lens, and a built-in 1000m laser rangefinder with ballistic calculation, the SX60LS 3.0 is purpose-built for serious field and forest hunting across Australian conditions.

At a Glance

• 1280 × 1024 thermal sensor @ 12μm — highest resolution in the Stellar 3.0 line up
• 50Hz refresh rate for smooth, fluid tracking and scanning
• NETD < 18mK — exceptional target separation in low-contrast conditions
• 60mm F1.0 lens with detection range up to 3,100m
• 2.5× to 20× magnification range
• Wide 25.6m field of view @ 100m
• Built-in 1000m LRF with ballistic calculation
• 2560 × 2560 | 1.03" OLED display — razor-sharp visuals
• Image Pro 2.0 + HSIS (Shutterless Image System)
• Internal batteries + external 18650 — up to 6.5 hours+ runtime
• IP67 rated + 1000g / 0.4ms recoil resistance
• Standard 30mm tube — fits existing mounts

Key Features

• 1280 × 1024 resolution @ 12μm uncooled thermal detector
• 50Hz frame rate — noticeably smoother than 25Hz models for moving target tracking
• NETD < 18mK for high-sensitivity thermal detection
• 60mm F1.0 objective lens — maximum light collection for long-range thermal performance
• Detection range: 3,100m (1.8 × 0.5m person)
• Field of view: 25.6m @ 100m — wide for a 60mm scope
• 2.5× base magnification with digital zoom up to 20×
• Built-in 1000m lens-integrated laser rangefinder (LRF)
• Ballistic calculation with inclination angle compensation
• 5 zeroing profiles
• 2560 × 2560 (1.03") OLED microdisplay
• Image Pro 2.0 algorithm for enhanced detail and contrast
• HSIS — HIKMICRO Shutterless Image System for uninterrupted viewing
• Hot tracking — automatic detection of highest temperature point
• On-board video and audio recording with recoil-activation
• Two internal rechargeable Li batteries + one external replaceable 18650
• IP67 waterproof and dustproof
• Max recoil resistance: 1000g / 0.4ms
• Standard 30mm tube format

Overview — What's New in the Stellar 3.0

The Stellar 3.0 series represents a significant step forward from the previous generation. The SX60LS 3.0 brings together HIKMICRO's most advanced thermal hardware and software in a single platform. Here is what has changed and why it matters in the field:

1. 1280 × 1024 High-Resolution Thermal Sensor

The Stellar 3.0 SX60LS steps up to a 1280 × 1024 detector — four times the pixel count of a 640 × 512 sensor. The practical result is substantially more detail when identifying targets at distance, cleaner edges on animals in bush, and better differentiation between heat sources in cluttered environments like scrub and timber country.

2. 50Hz Refresh Rate (SX60LS vs SX60L)

The "S" in SX60LS designates the upgraded 50Hz frame rate, compared to 25Hz on the standard SX60L. This doubles the image update speed, delivering a noticeably smoother, more fluid image — particularly when tracking moving animals or scanning across open country. At 50Hz, target motion is near-continuous rather than stepped, which directly improves your ability to track, lead, and engage moving targets.

3. Image Pro 2.0 — Enhanced Processing Algorithm

Image Pro 2.0 is HIKMICRO's latest onboard image processing engine. It delivers improved edge definition, better contrast in complex backgrounds, and more natural rendering of the thermal scene — reducing the "smeared" look that can affect lesser-processed thermal images. The result is sharper, more interpretable imagery across all lighting and weather conditions.

4. HSIS — HIKMICRO Shutterless Image System

Earlier thermal scopes use a mechanical shutter to periodically re-calibrate the sensor, causing a brief image blackout known as a NUC. The Stellar 3.0's HSIS system eliminates this interruption — calibration happens without breaking your view. In a hunting scenario where an animal can be in your crosshairs for only seconds, uninterrupted imaging is a genuine advantage.

5. Upgraded OLED Display — 2560 × 2560 Resolution

The 1.03" OLED microdisplay at 2560 × 2560 resolution is a significant jump over smaller, lower-resolution displays used in previous-gen Stellar models. The larger display reduces eye strain on extended sessions and delivers a clearer, brighter viewing experience. Combined with the 1280 sensor, the display has enough resolution to fully render the detail the thermal module captures.

6. Integrated Lens LRF with Ballistic Calculation

The built-in 1000m laser rangefinder is integrated directly into the lens assembly — keeping the scope profile clean and eliminating the need for a separate ranging device in the field. Combined with onboard ballistic calculation and inclination angle compensation, the SX60LS 3.0 gives you range-corrected hold points directly in the scope — a meaningful time advantage in fast field situations.

7. Dual Power — Internal + External 18650 Battery

The SX60LS 3.0 runs on two internal rechargeable lithium batteries with an additional replaceable external 18650 cell. This dual-system approach extends runtime and gives you a field-replaceable power option without returning to camp — practical for extended overnight hunts targeting pigs and deer across large properties.

Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays (UFPA)
• Resolution: 1280 × 1024
• Pixel Pitch: 12 μm
• Frame Rate: 50 Hz
• NETD: < 18mK (@25°C, F# = 1.0)
• Response Waveband: 8 μm to 14 μm
• Lens (Focal Length): 60mm, F1.0
• Detection Range: 3,100m (1.8 × 0.5m person)
• Field of View: 25.6m @ 100m
• Base Magnification: 2.5×
• Digital Zoom: Up to 20×
• Focus Mode: Manual focus knob
• Min Focusing Distance: 10m

Image Display

• Display: 2560 × 2560, 1.03", OLED
• Dioptric Compensation: -5D to +3D
• HSIS (Shutterless Image System): Yes
• Image Pro 2.0: Yes
• Hot Tracking: Yes
• Palettes: White Hot, Black Hot, Red Hot, Fusion + additional colour modes

Rangefinder & Ballistics

• Laser Rangefinder: Built-in, lens-integrated
• LRF Range: Up to 1000m
• Ballistic Calculation: Yes
• Inclination Angle Compensation: Yes
• Zeroing Profiles: 5

System

• Video Recording: On-board
• Audio Recording: Yes
• Recoil-Activation Recording: Yes
• Snapshot Capture: Yes
• Standby Mode: Yes
• Max Recoil Rating: 1000g / 0.4ms
• Wi-Fi / App Support: Yes (HIKMICRO Sight app)

Power Supply

• Battery Type: Two internal rechargeable lithium batteries + one external replaceable 18650
• Battery Operating Time: 6.5 hours (internal, @25°C)
• USB-C Charging: Yes
• External Power Supply: Supported

General

• Protection Rating: IP67
• Tube Diameter: 30mm (standard mount compatible)
• Dimensions: 452.6mm × 94.3mm × 83.9mm
• Working Temperature: -30°C to +55°C
• High Shock Resistance: 1000g / 0.4ms

Summary

The HIKMICRO STELLAR SX60LS 3.0 sits at the top of the Stellar 3.0 range for good reason. The combination of a 1280 × 1024 sensor, 50Hz refresh rate, 60mm F1.0 lens, built-in LRF with ballistics, and HSIS shutterless imaging makes this one of the most capable production thermal scopes available in Australia for hunting.

It is suited to hunters operating at extended ranges — particularly those targeting pigs and deer across open flats, timber country, and scrub — where the ability to detect, range, calculate, and engage at distance in one platform makes a real difference. The standard 30mm tube ensures straightforward mounting on virtually any rifle without additional adapters.

If you are looking for the most capable thermal scope in the Stellar line up and want 50Hz smooth imaging combined with the highest available resolution sensor, the SX60LS 3.0 is the one to have.
