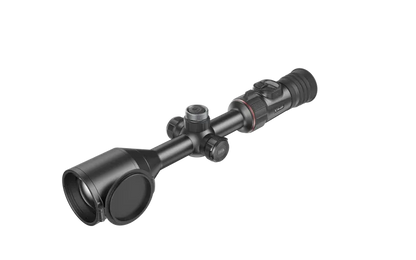

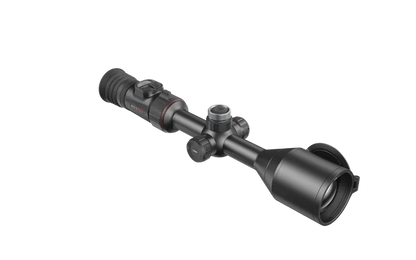

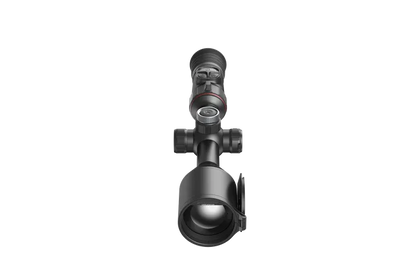

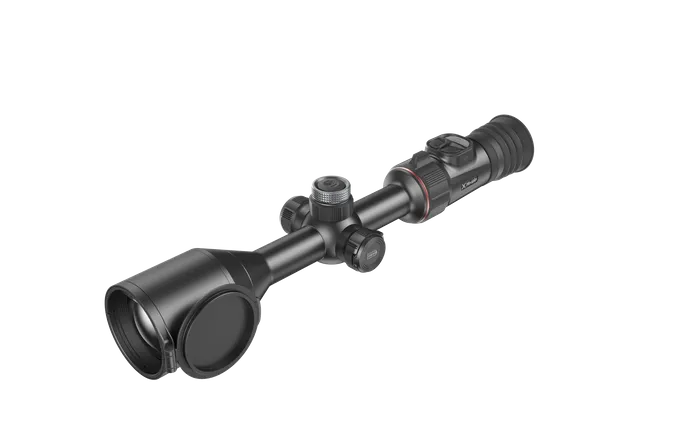

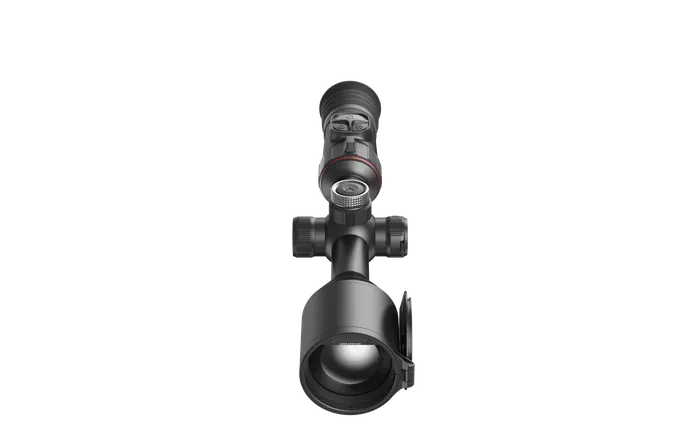

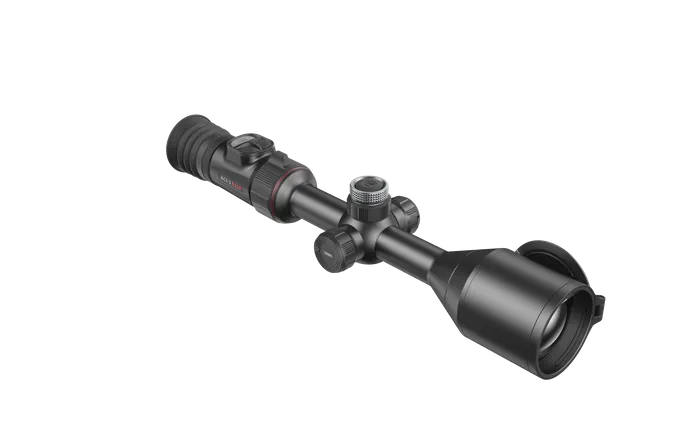

NOCPIX ACE 2 S60R 1280 LRF Thermal Scope

The NOCPIX ACE 2 S60R is the flagship of NOCPIX's ACE 2 thermal riflescope range, with a 1280×1024 thermal sensor, a 60mm F1.0 lens and an integrated 1,200m laser rangefinder with ballistic calculator. It brings Ocular Zoom 2.0 for lossless hybrid zoom with maintained reticle accuracy, the upgraded R+ 2.0 AI imaging algorithm for sharper, cleaner detail, and LRF 2.0 and Ballistic Calculation 2.0 for faster, more precise ranging. With NETD ≤12mK, detection out to 3,100 metres and a 980g magnesium alloy body, the ACE 2 S60R gives Australian hunters the highest resolution and longest reach in the ACE 2 range for pigs, deer, foxes and feral animals at distance.

Features & Specifications

• 1280×1024 thermal sensor, 12μm pixel pitch, 30/60Hz frame rate
• NETD ≤12mK for fine temperature separation and clean imagery in challenging conditions
• 60mm F1.0 objective lens for outstanding long-range thermal performance
• Detection range up to 3,100 metres (1.7m × 0.5m target, P(n)=99%)
• Field of view 14.7° × 11.7° (25.6 × 20.5m at 100m)
• 2x–28x magnification with Ocular Zoom 2.0 (1–2x) hybrid zoom, lossless detail with maintained reticle accuracy
• 60mm eye relief, 10mm exit pupil and -5 to +4 diopter adjustment for comfortable, forgiving viewing
• 1.03-inch AMOLED display, 2560×2560 resolution
• R+ 2.0 AI imaging algorithm for sharper details and realistic image quality
• Dual Clarity Mode: Motion Mode for smooth, blur-free tracking and Still Mode for fine detail identification
• Integrated LRF 2.0 laser rangefinder, up to 1,200m, with Ballistic Calculation 2.0 for an accurate aiming point factoring in distance, angle, wind drift and environmental conditions
• Intelligent Tracking: laser ranging and electronic compass deliver instant target coordinates from a single measurement
• Central focus wheel for intuitive adjustment without losing your aiming position
• Dual battery system: built-in 3650mAh battery plus replaceable 3650mAh 18650, up to 7 hours runtime, with low-temperature performance
• Lightweight magnesium alloy body, under 1000g
• Weight: 980g
• Dimensions: 397 × 73 × 92mm
• Onboard photo and video recording with 64GB internal memory
• Recoil Activated Video (RAV)
• 5G Wi-Fi and one-tap app connectivity with transfer speeds up to 20MB/s
• Recoil rated to 7,000J, suitable for .308 Win and .338 Lapua
• Air rifle compatible
• Security updates supported until 30 December 2029

What's Included

• NOCPIX ACE 2 S60R thermal riflescope
• 18650 battery
• Charging cable
• Lens cloth and caps
