Product Details

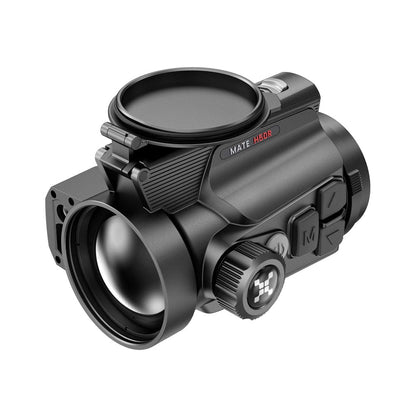

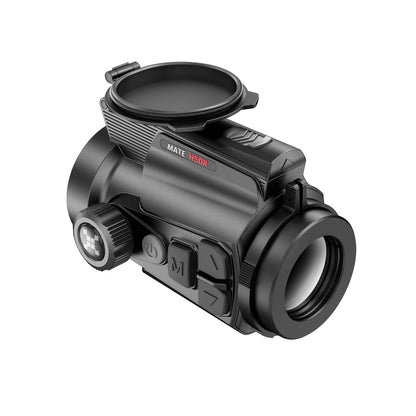

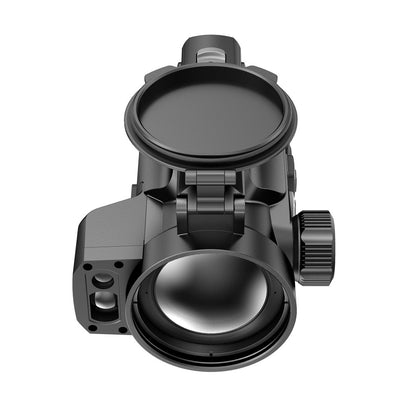

Nocpix Mate H50R Thermal Clip-On

The Nocpix Mate H50R is a high-performance thermal clip-on built to pair with daytime riflescopes, delivering sharp detail and long-range detection. With a 640×512 (12μm) sensor, 50mm F1.0 lens, NETD ≤15mK, and a smooth 60Hz refresh rate, it’s designed for confident spotting and identification in demanding conditions.

Key features

  • 640×512 thermal sensor (12μm) for improved detail and target definition
  • NETD ≤15mK sensitivity for strong contrast and target separation
  • 60Hz refresh rate for smooth tracking and scanning
  • 50mm F1.0 objective lens with up to 2600m detection range (human-sized target)
  • Magic Zoom with Intelligent R+ automatically tracks your scope’s magnification and adjusts the thermal image/interface in real time for seamless scaling and clarity
  • 0.49" AMOLED display (1920×1080) for a crisp, high-contrast image
  • Built-in laser rangefinder with up to 1200m max rangefinder distance
  • Ballistic calculation: Yes
  • Replaceable 18650 battery — up to 4 hours runtime (22°C)
  • Wi‑Fi/App support + 64GB internal memory
  • Remote control support
  • Compact build at 467g (with battery)

Overview

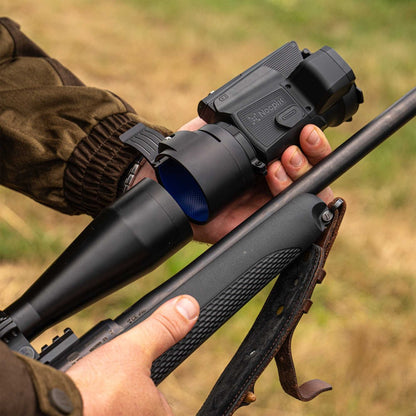

If you want the convenience of a clip-on setup but with premium resolution and serious ranging capability, the Mate H50R is built for the job. The 50mm objective and high-resolution sensor help deliver a more detailed image at distance, while the integrated rangefinder and ballistic calculation features support faster, more confident decision-making in the field.
Magic Zoom with Intelligent R+ takes it a step further by automatically tracking your scope’s magnification and adjusting the thermal image and interface in real time. Enhanced by R+ AI technology, it’s designed to maintain smooth scaling and image clarity across changing lighting and weather conditions.

Specifications

Spec Details
Model Mate H50R
Thermal sensor 640×512
Pixel pitch 12μm
NETD ≤15mK
Frame rate 60Hz
Objective lens 50mm F1.0
Field of view (H×V) 8.6° × 6.6°
Linear FOV @ 100m (H×V) 15m × 11.5m
Detection range 2600m (target size 1.7m × 0.5m, P(n)=99%)
Display type 0.49" AMOLED
Display resolution 1920×1080
Battery type Replaceable 18650
Max operating time Up to 4 hours (22°C)
Memory 64GB
Wi‑Fi / App Yes
RAV Yes
Gallery Yes
N-link Yes
Remote control Yes
Ocular zoom Yes
Max rangefinder distance 1200m
Ballistic calculation Yes
Weight (with battery) 467g
Dimensions 120 × 92 × 76mm
Adapter interface M52
