Product Details

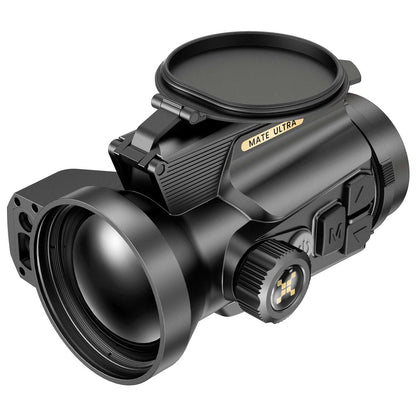

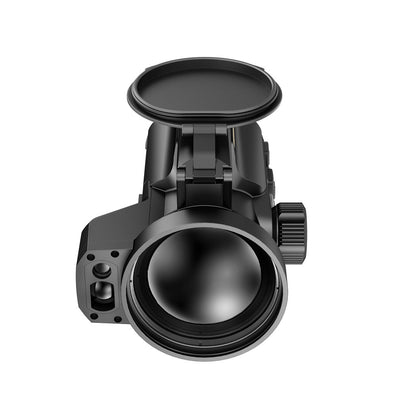

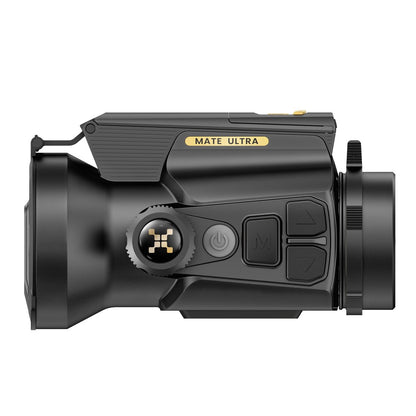

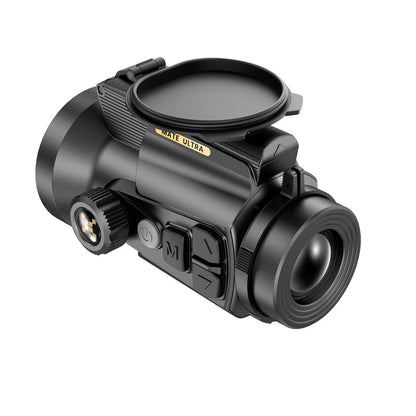

Nocpix Mate ULTRA S60R Thermal Clip-On

The Nocpix Mate ULTRA S60R is a top-tier thermal clip-on designed to pair with daytime riflescopes when you want maximum image detail and serious long-range capability. Featuring an ultra-high resolution 1280×1024 (12μm) sensor, NETD ≤15mK, a 60mm F1.0 lens, and a smooth 60Hz refresh rate, it delivers crisp thermal clarity and confident detection in demanding conditions.

Key features

  • 1280×1024 thermal sensor (12μm) for exceptional detail and target definition
  • NETD ≤15mK sensitivity for strong contrast and separation
  • 60Hz refresh rate for smooth scanning and tracking
  • Shutterless imaging for uninterrupted viewing (no calibration “freezes”)
  • Magic Zoom for smooth scaling as your daytime scope magnification changes
  • 60mm F1.0 objective lens with up to 3100m detection range (human-sized target)
  • 0.72" AMOLED display (1920×1200) for a sharp, high-contrast image
  • Built-in laser rangefinder with up to 1200m max rangefinder distance
  • Ballistic calculation: Yes
  • Replaceable 18650 battery — up to 4 hours runtime (22°C)
  • Wi‑Fi/App support + 64GB internal memory
  • Remote control support
  • Ocular zoom: Yes
  • Robust, compact build at 560g (with battery)

Overview

Built for shooters who want premium thermal performance in a clip-on format, the Nocpix Mate ULTRA S60R combines an ultra-high resolution 1280×1024 sensor with a 60mm F1.0 lens for strong detail and confident performance at distance. A smooth 60Hz refresh rate helps keep the image fluid when scanning and tracking moving targets.
It also features shutterless imaging for uninterrupted viewing (no annoying calibration “freezes”), plus Magic Zoom to help keep the thermal image and interface scaling smoothly as your daytime scope magnification changes—supporting clearer, more consistent viewing across changing conditions.
For practical field use, the integrated laser rangefinder and ballistic calculation features support faster, more confident decisions—especially when distance matters.

Specifications

Spec Details
Model Mate ULTRA
Thermal sensor 1280×1024
Pixel pitch 12μm
NETD ≤15mK
Frame rate 60Hz
Objective lens 60mm F1.0
Field of view (H×V) 14.7° × 11.7°
Linear FOV @ 100m (H×V) 25.6m × 20.5m
Detection range 3100m (target size 1.7m × 0.5m, P(n)=99%)
Display type 0.72" AMOLED
Display resolution 1920×1200
Battery type Replaceable 18650
Max operating time Up to 4 hours (22°C)
Memory 64GB
Wi‑Fi / App Yes
RAV Yes
Gallery Yes
N-link Yes
Remote control Yes
Ocular zoom Yes
Max rangefinder distance 1200m
Ballistic calculation Yes
Weight (with battery) 560g
Dimensions 140 × 96 × 78mm
Adapter interface M52
