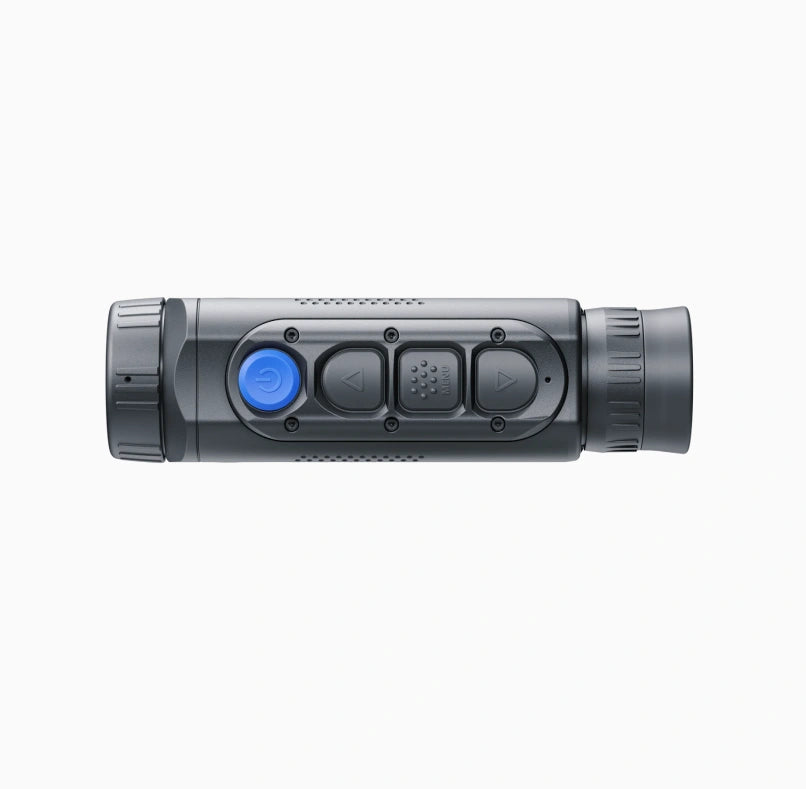

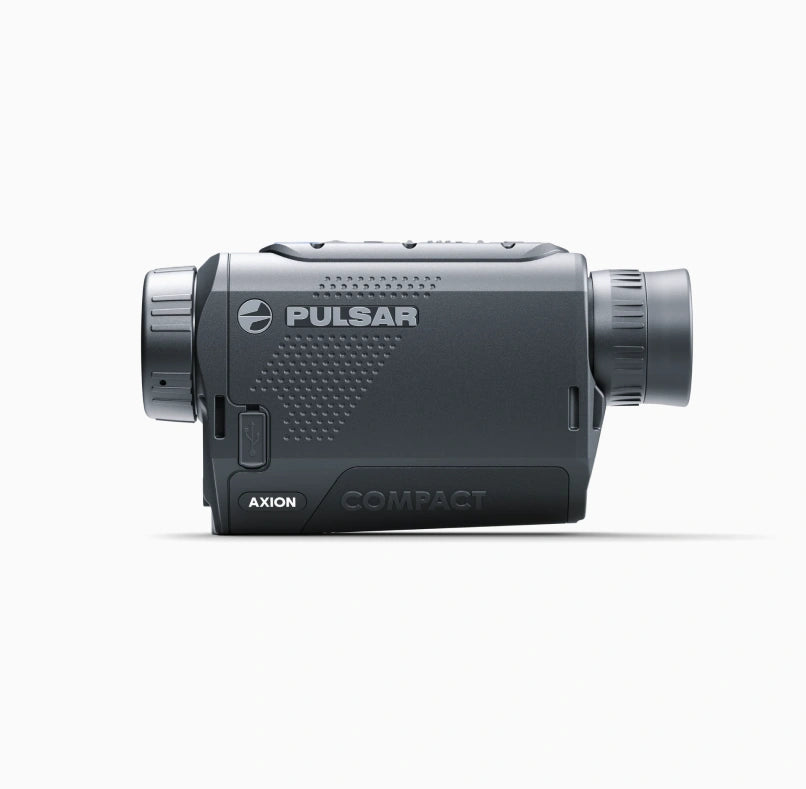

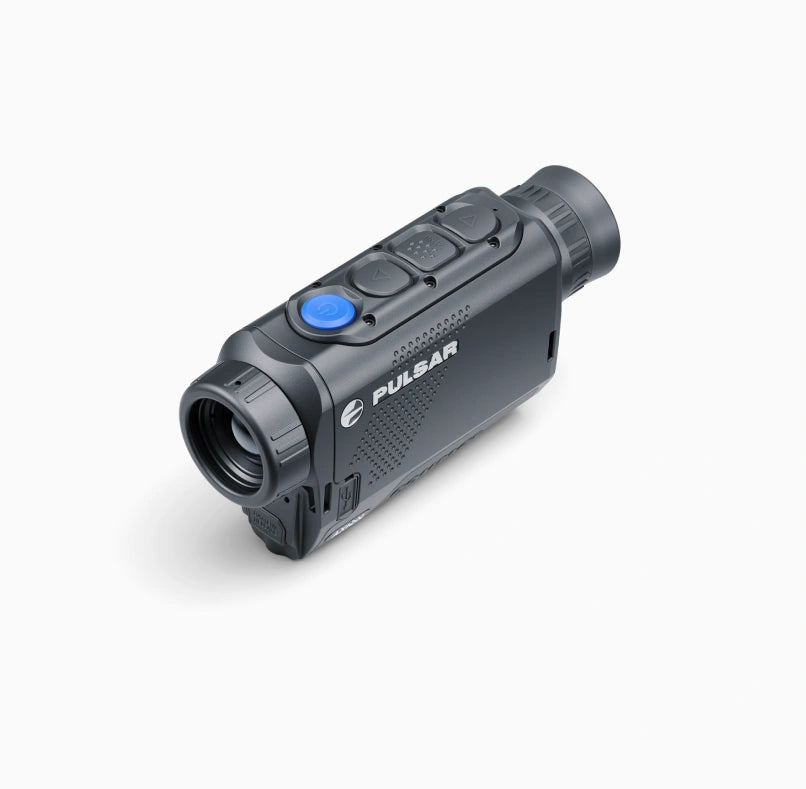

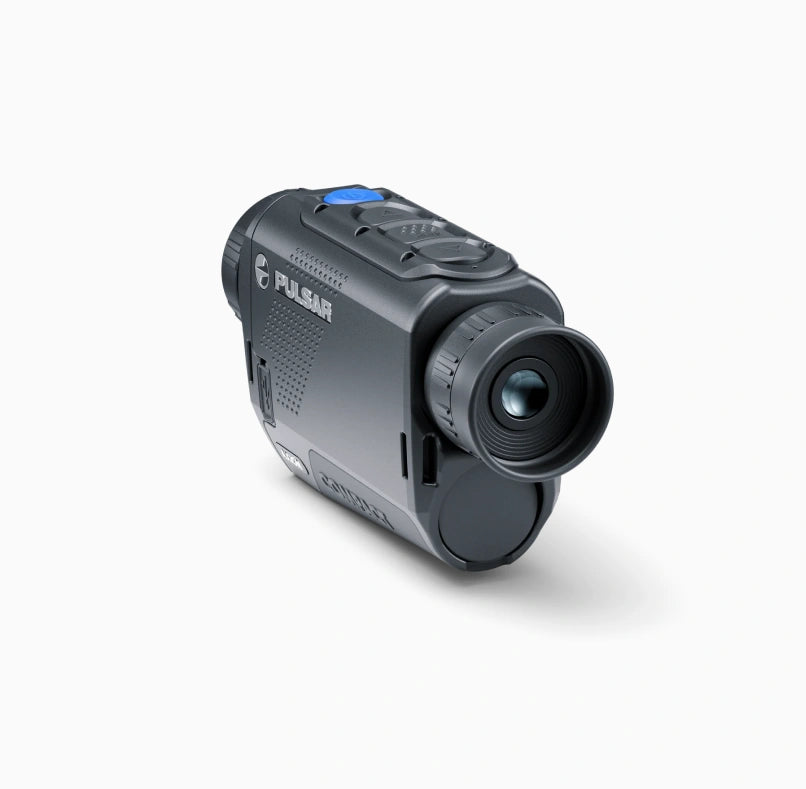

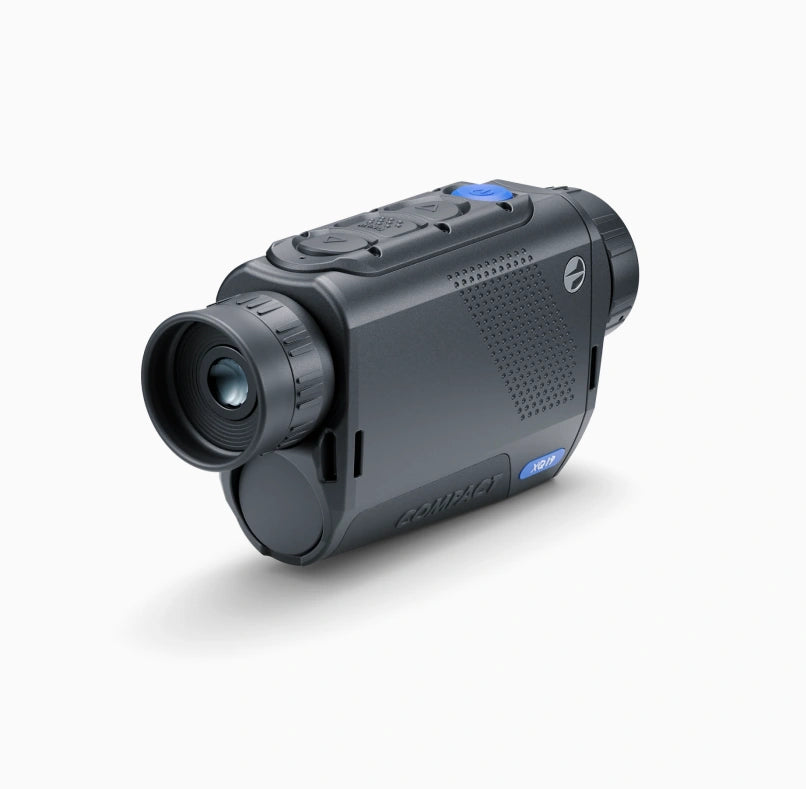

Pulsar Axion Compact XQ19 Thermal Monocular


The Pulsar Axion Compact XQ19 is a pocket-sized thermal monocular built for quick, reliable close-range scanning—ideal for Australian conditions where darkness, fog, and vegetation can limit visibility. Lightweight and simple to operate, it’s a practical option for wildlife observation, property checks, and general situational awareness without relying on external light sources.

Key features

  • Compact, lightweight monocular for fast handheld scanning
  • 384×288 thermal sensor (17µm) for dependable close-range detection
  • Wide field of view: 19.5° × 12.3° (34.7m × 21.5m @ 100m) for covering more ground quickly
  • 1.5x–6x magnification (smooth digital zoom) for flexible viewing in tight terrain
  • Detection range up to 750m
  • AMOLED display (640×400) for clear viewing
  • Photo + video recording with 64GB built-in memory
  • Wi‑Fi connectivity (Stream Vision 2 compatible)
  • IPX7 waterproof housing for wet weather use
  • Up to 8 hours runtime (APS 3 battery pack)
  • USB‑C external power support
  • 1/4" tripod socket for stable observation

Overview

Designed for close-range thermal observation where portability and straightforward operation are priorities, the Axion Compact XQ19 is an easy grab-and-go thermal monocular. Its compact form makes it well suited to handheld scanning in bushland, scrub, and semi-rural areas—especially when visibility is reduced by darkness, fog, or thick vegetation.
The XQ19 uses a 384×288 uncooled thermal sensor with NETD <25mK (sensor) and a wide 19.5° field of view, helping you scan larger sections of terrain quickly. With 1.5x base magnification and smooth digital zoom up to 6x, it’s a strong entry-level option for users who want practical thermal capability without complexity. Built-in recording, Wi‑Fi connectivity, and an IPX7 waterproof rating round out a reliable thermal monocular for regular outdoor use.

Specifications

Spec Details
Model XQ19
Sensor type Uncooled
Sensor resolution 384×288
Pixel pitch 17µm
Sensor NETD < 25mK
System NETD < 18mK
Frame rate 50Hz
Objective lens F19 / 1.0
Magnification 1.5x–6x (x4 zoom)
Field of view (degrees) 19.5° × 12.3°
Field of view @ 100m 34.7m × 21.5m
Detection range 750m
Display type AMOLED
Display resolution 640×400
Eye relief 14mm
Photo/video resolution 960×600
Photo/video format .jpg / .mp4
Built-in memory 64GB
Wi‑Fi IEEE 802.11 b/g/n/ac (WPA)
Supported app Stream Vision 2
Waterproof rating IPX7
Operating temp range -25°C to +40°C
Mount type 1/4" socket
Battery type APS 3 Li-ion Battery Pack
Battery capacity 3200mAh
Runtime (22°C) Up to 8 hours
External power 5V (USB‑C)
Body material Aluminum alloy
Dimensions 134.5 × 38 × 71mm
Weight 0.25kg (without battery)
