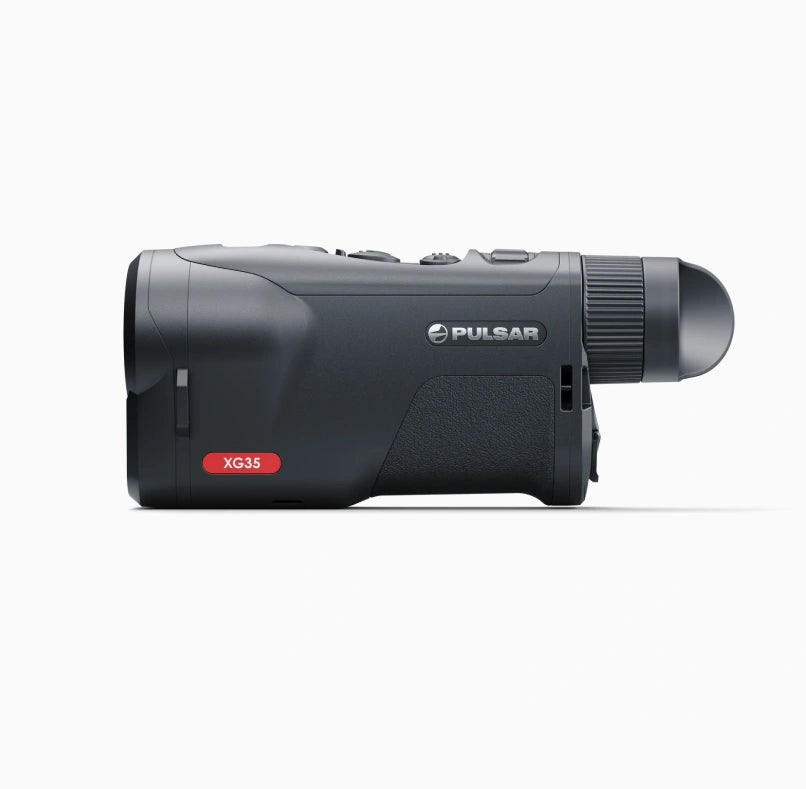

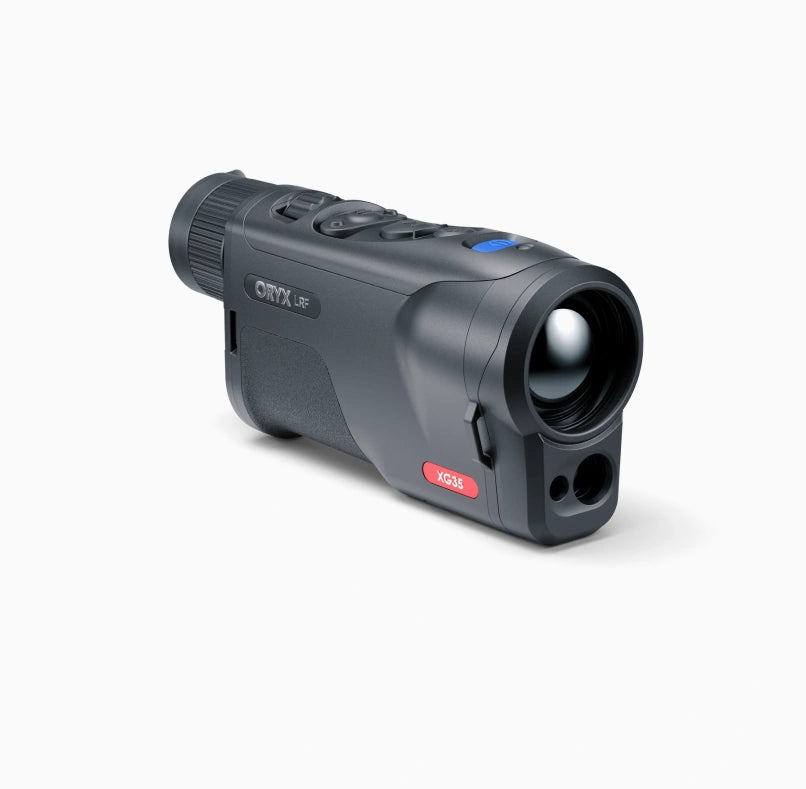

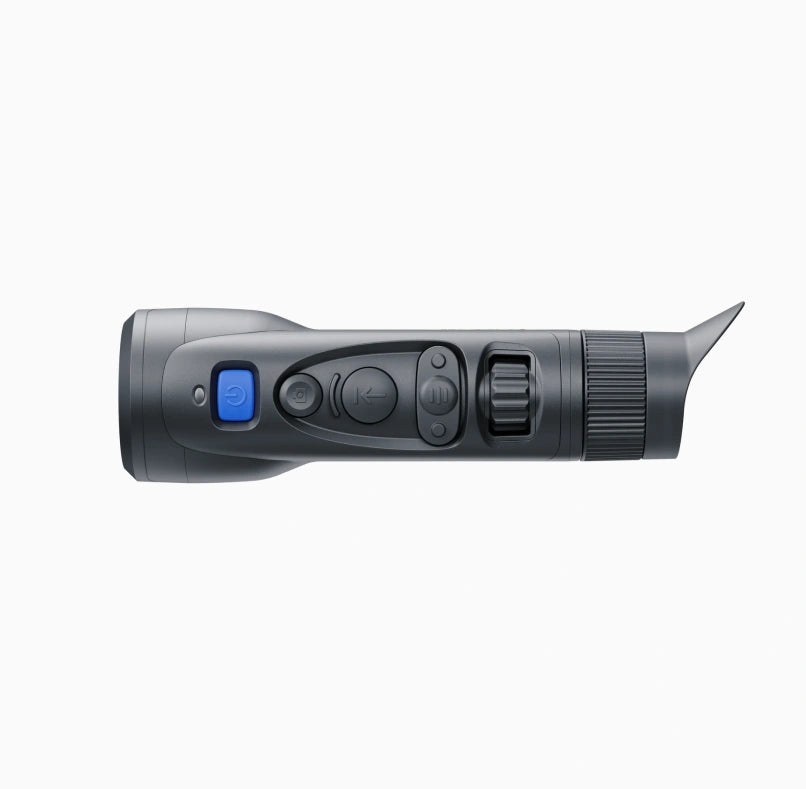

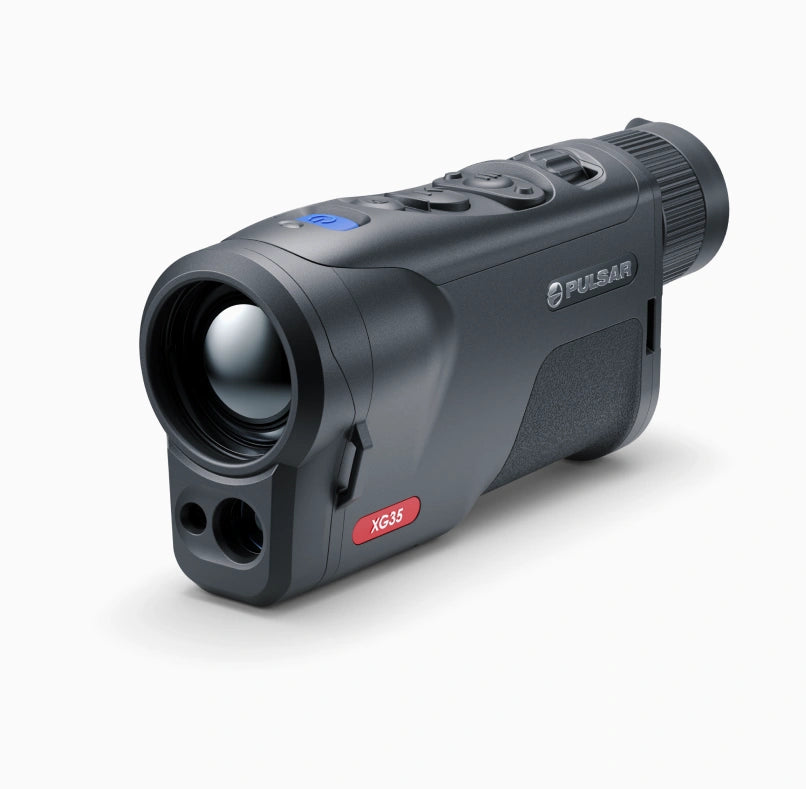

Pulsar ORYX LRF XG35 Thermal Monocular

The Pulsar ORYX LRF XG35 is a rugged thermal observation monocular built for Australian conditions where durability, stable handheld viewing, and accurate distance awareness matter. With a high-resolution 640×480 (12µm) sensor, electronic image stabilisation, and an integrated laser rangefinder to 1500m, it’s designed for confident identification and precise observation across bushland, farmland, and mixed terrain.

Key features

  • 640×480 high-resolution thermal sensor (12µm) for detailed thermal imagery
  • Integrated laser rangefinder (up to 1500m) with ±1m accuracy
  • Electronic image stabilisation for steadier handheld viewing
  • Rugged magnesium alloy housing built for demanding outdoor use
  • Dual battery power system for up to 12 hours runtime (built-in + removable)
  • Wide magnification range: 2.5x–20x (smooth digital zoom)
  • Detection range up to 1800m
  • AMOLED HD display (1024×768) for clear viewing
  • Built-in photo & video recording + 64GB memory
  • Wi‑Fi (2.4/5GHz) + Stream Vision 2 support
  • IP67 waterproof protection
  • 1/4" tripod socket for stable observation

Overview

Designed for rugged thermal observation with integrated ranging and stable handheld operation, the ORYX LRF XG35 is a practical choice for land managers, wildlife observers, and outdoor professionals who need precision and reliability in the field.
It performs effectively in darkness, fog, rain, and dusty conditions, with a reinforced magnesium alloy body built to handle water ingress, impacts, and prolonged outdoor exposure. The 640×480 / 12µm thermal sensor delivers detailed imagery for confident identification at close to mid-range distances, while electronic image stabilisation helps keep the image steady during extended handheld use.
For distance awareness, the integrated laser rangefinder provides accurate measurements out to 1500m, supporting faster, more confident decisions when observation turns into action. With an AMOLED HD display and up to 12 hours operating time via the dual battery system, the ORYX LRF XG35 is built for long sessions in demanding environments.

Specifications

Spec Details
Model XG35
Sensor type Uncooled
Sensor resolution 640×480
Pixel pitch 12µm
Sensor NETD < 40mK
System NETD < 20mK
Frame rate 50Hz
Objective lens F35 / 1.0
Magnification 2.5x–20x (x8 zoom)
Field of view (degrees) 12.5° × 9.4°
Field of view @ 100m 21.9m × 12.5m
Detection range 1800m
Display type AMOLED HD
Display resolution 1024×768
Eye relief 14mm
Laser max measuring range 1500m
Laser measurement accuracy ±1m
Laser safety class 1 (IEC 60825-1:2014)
Laser wavelength 905nm
Photo/video resolution 1024×768
Photo/video format .jpg / .mp4
Built-in memory 64GB
Wi‑Fi IEEE 802.11 b/g/n/ac (WPA)
Wi‑Fi frequency 2.4 / 5GHz
Waterproof rating IP67
Operating temp range -25°C to +40°C
Mount type 1/4" socket
Supported app Stream Vision 2
Battery system Built-in Li-ion 3200mAh + removable APS 5 Li-ion 4900mAh
Runtime (22°C) Up to 12 hours (built-in + removable)
External power 5V; 9V (USB‑C Power Delivery)
Body material Magnesium alloy
Dimensions 179 × 52 × 77mm
Weight 0.5kg
