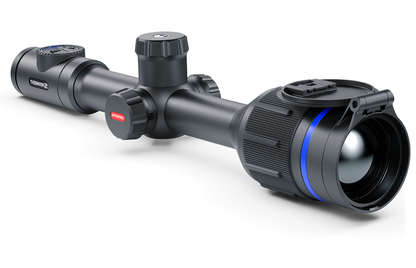

Photo of Pulsar THERMION 2 XQ35 Pro Thermal Imaging Riflescope

PULSAR

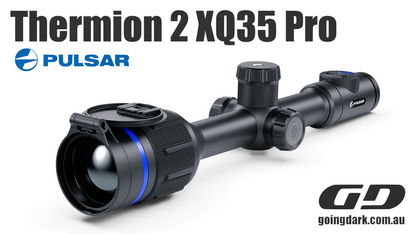

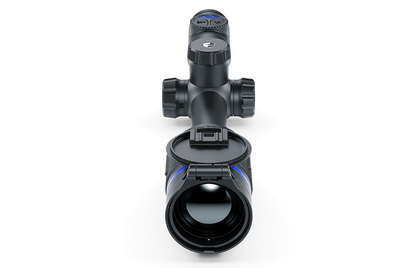

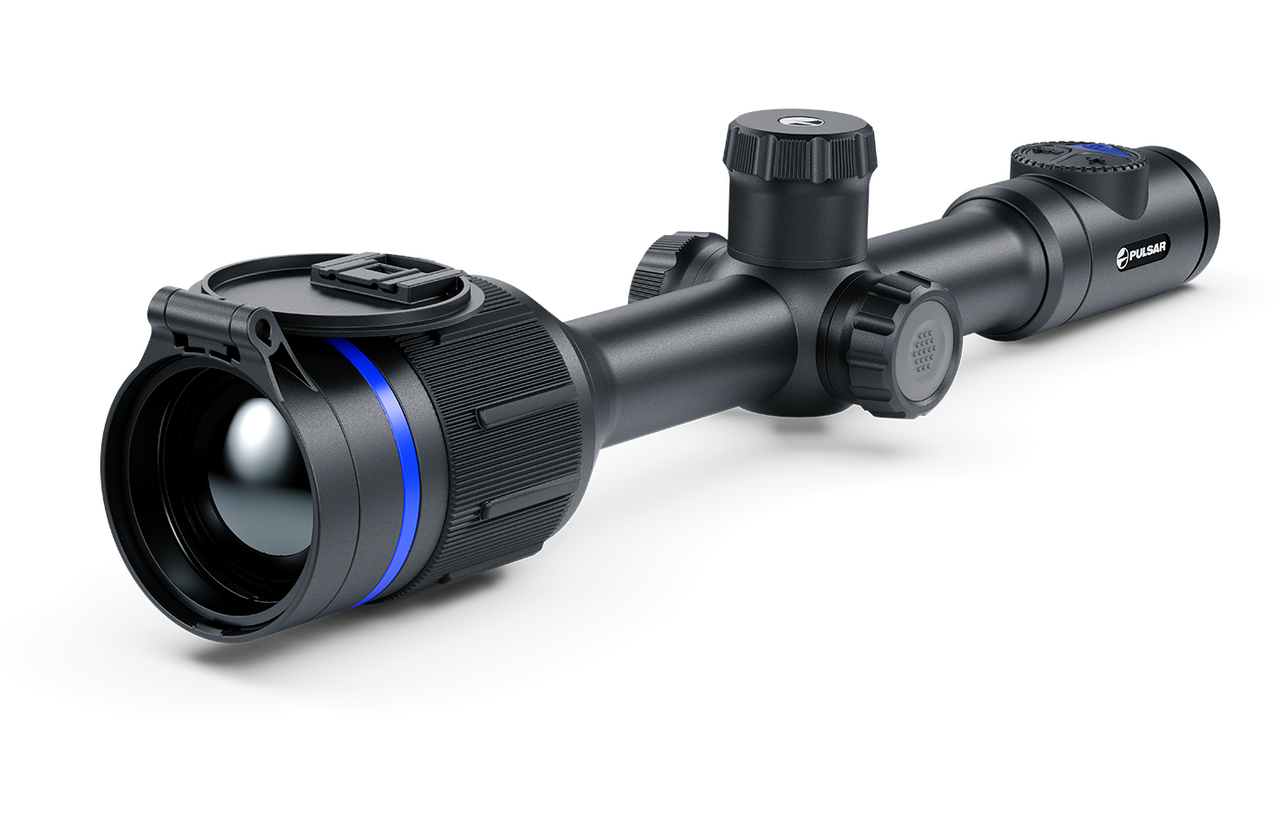

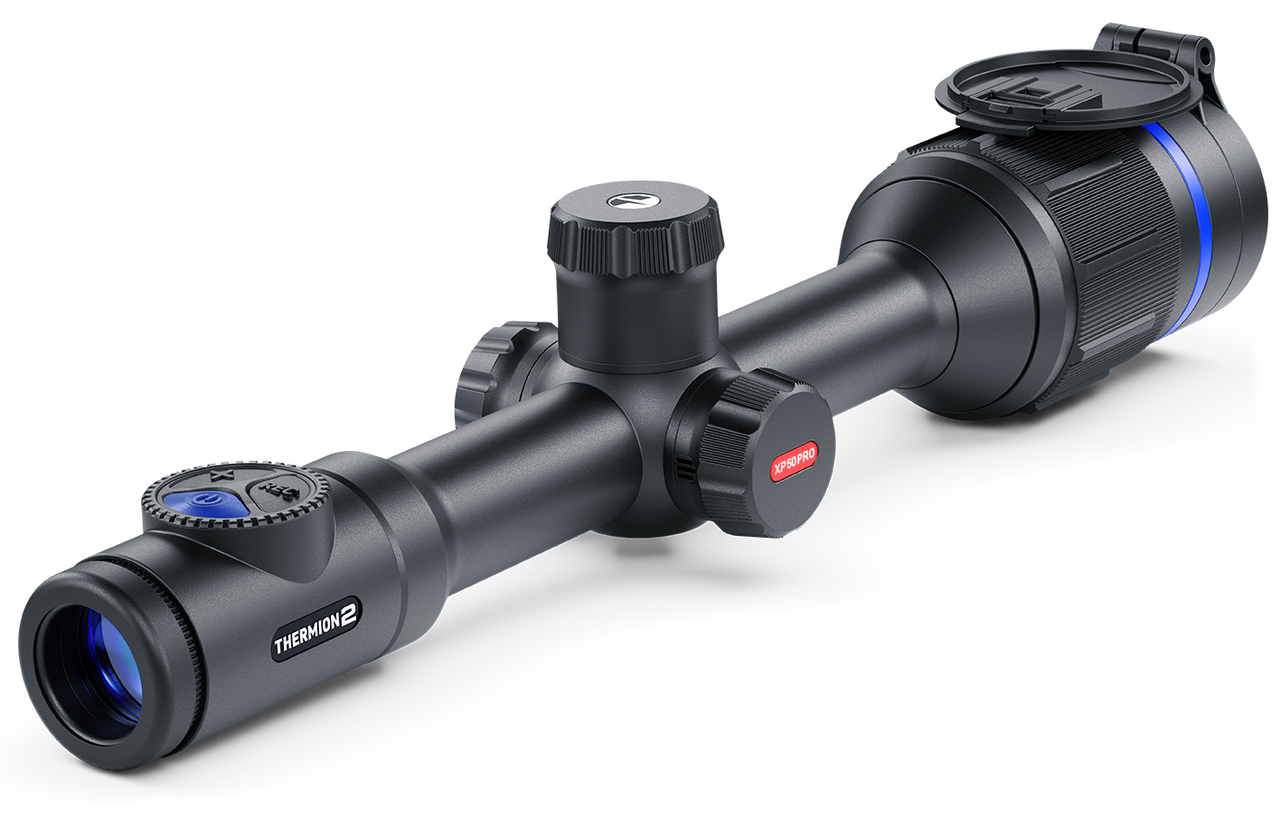

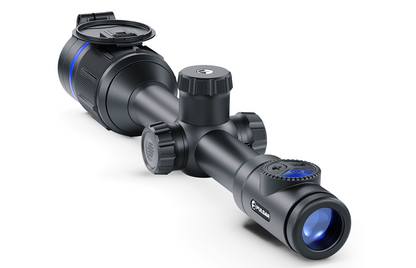

Pulsar THERMION 2 XQ35 Pro Thermal Imaging Riflescope

$3,999.00

Need extra batteries??: Pulsar APS 2 Battery - 2 AH - Thermion, Digex

Pulsar APS 2 Battery - 2 AH - Thermion, Digex
Pulsar APS 3 Battery - 3.2 AH - Axion XM, Thermion, Digex

Consider a spare charger: Pulsar APS 2/3 Battery Charger

Pulsar APS 2/3 Battery Charger

Product variants

Hurry, only 1 item left in stock!

Need help?

Pairs well with

In stock! Ships within 1-2 business days.

90-day risk-free trial

2-Year Warranty

$15 Flat Rate Shipping

Pulsar THERMION 2 XQ35 Pro Thermal Imaging Riflescope

Pulsar APS 2 Battery - 2 AH - Thermion, Digex / Pulsar APS 2/3 Battery Charger

$3,999.00

Product Details

Pulsar THERMION 2 XQ35 Pro Thermal Imaging Riflescope

The Thermion Range has been Pulsar's Flagship riflescope since it's introduction to the market as the first traditional day scope shaped thermal imaging riflescope. Thermion 2 is now a PRO class unit with exceptional image quality from the upgrade specifications and high build quality Pulsar is known for. Easily mount with 30mm rings (or ADM Recon mount) for ease of transfer between multiple platforms. Sub 25mK NETD rating gives you perfect detail recognition even in the roughest of weather with low thermal contrast. The smallest of temperature differences are clearly visable during fog, light rainfall or cold mornings when thermal imaging can be difficult.

Proposed Uses (XQ35 Pro);

Suitable for: Rifle mounting (30mm rings typically)
Thermal Detection Range = up to 1350mtrs
Thermal Identification Range for various sized targets;
- Small (Rabbit) = 100m
- Sml-Med (Fox) = 175m
- Medium (Pig) = 200m
- Med-Lge (Deer) = 300m

Key Features (XQ35 Pro);

384x288 thermal sensor (17um, NETD <25mK)
35mm objective lens (F1.0), 2.5x base magnification (10.7 Horiz. FoV)
AMOLED display (1024x768),
1x APS2 removeable battery, Internal Li-ion battery (over 5hrs runtime)
16Gb onboard storage, media recording (w/Audio), WiFi connectivity (Stream Vision 2 App)

Main	Thermion 2 XP50 Pro	Thermion 2 XQ50 Pro	Thermion 2 XQ35 Pro	Thermion 2 XG50
Sensor	640x480 pix. @ 17 µm (NETD <25 mK)	384x288 pix. @ 17 µm (NETD <25 mK)	384x288 pix. @ 17 µm (NETD <25 mK)	640x480 @ 12 µm (NETD <40 mK)
Objective lens	F50 F/1.0	F50 F/1.0	F35 F/1.0	F50 / 1.0
Magnification, x	2-16	3-12	2.5-10	3 – 24
Field of view (HxV), degrees / m@100m	12.4/21.8	7.5/13.1	10.7/18.7	8.8x6.6 / 15.4x11.5
Detection range, m (thermal)	1800	1800	1350	2300
Sensor
Type	uncooled	uncooled	uncooled	uncooled
Resolution, pixels	640x480	384x288	384x288	640x480
Pixel pitch, µm	17	17	17	12
NETD, mK	<25	<25	<25	<40
Frame rate, Hz	50	50	50	50
Optics
Objective lens	F50 F/1.0	F50 F/1.0	F35 F/1.0	F50 / 1.0
Magnification, x	2-16 (x4 zoom)	3-12	2.5-10	3 – 24
Field of view (HxV), degrees / m @ 100 m	12.4/21.8	7.5/13.1	10.7/18.7	8.8x6.6 / 15.4x11.5
Eye relief, mm	50	50	50	50
Display
Type	AMOLED	AMOLED	AMOLED	AMOLED
Resolution, pixels	1024х768	1024x768	1024х768	1024х768
Range Performance
Detection range, m (thermal)	1800	1800	1350	2300
Laser Rangefinder
Safety Class for laser equipment according IEC 60825-1:2014
Wavelength, nm
Max. measuring range, m
Measurement Accuracy, m
Reticle
Click value, H/V, mm at 100 m	21 – 2х, 10.5 – 4х, 5.25 – 8х, 2.6 – 16х	13 – 3x, 6.5 – 6x, 3.25 – 12x	18 – 2.5x, 9 – 5x, 4.5 – 10x	15 – 3х, 7.5 – 6х, 3.75 – 12х, 1.86 – 24x
Click range, H/V, mm at 100 m	4200/4200	2600/2600	3600/3600	3000 / 3000
Number of preloaded reticles	10	10	10	10
Video Recorder
Video / photo resolution, pixel	1024х768	1024х768	1024x768	1024x768
Video / photo format	.mp4 / .jpg	.mp4 / .jpg	.mp4 / .jpg	.mp4 / .jpg
Built-in memory, Gb	16	16	16	16
Wi-Fi
Wireless Protocol	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi
Wireless Standard	802.11 b/g/n/ac	802.11 b/g/n/ac	802.11 b/g/n/ac	IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz	2.4 / 5 GHz	2.4 / 5 GHz	2.4 / 5 GHz	2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529)	IPX7	IPX7	IPX7	IPX7
Operating temperature range, °C	-25 – +50	-25 – +50	-25 – +50	-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules	6000	6000	6000	6000
Shock resistance on the smooth-bore rifles, caliber	12	12	12	12
Mounting brackets on weapon	Standard 30 mm rings	Standard 30 mm rings	Standard 30 mm rings	Standard 30 mm rings
Supported Appplication	Stream Vision 2	Stream Vision 2	Stream Vision 2	Stream Vision 2
Power Supply
Output voltage, V	3.0 – 4.2	3.0–4.2	3.0–4.2	3.7
Battery type	Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)	Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)	Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal)	Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
Capacity, mAh	2000 (external) + 3200 (external)* + 4900 (internal)	2000 (external) + 3200 (external)* + 4900 (internal)	2000 (external) + 3200 (external)* + 4900 (internal)	2000 (external) + 4900 (internal)
Operating time on battery pack (at t=22°C), h *	10	10	10	9
External power supply, V	5 V, 9 V (USB Type-C Power Delivery)	5 V, 9 V (USB Type-C Power Delivery	5 V, 9 V (USB Type-C Power Delivery)	5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body Material	Metal	Metal	Metal	Aluminum alloy
Dimensions mm	412x78x83	412x78x8	399х78х80	412x78x83
Weight kg	0.9	0.9	0,88	0.9
Warranty
Warranty on Device, years
Warranty on Batteries, years
Trade Data
SKU (Model #)	76547	76548	76541	76549
