THERMION 2 LRF XQ50 Pro Thermal Rangefinding Riflescope - Pulsar
Product Details

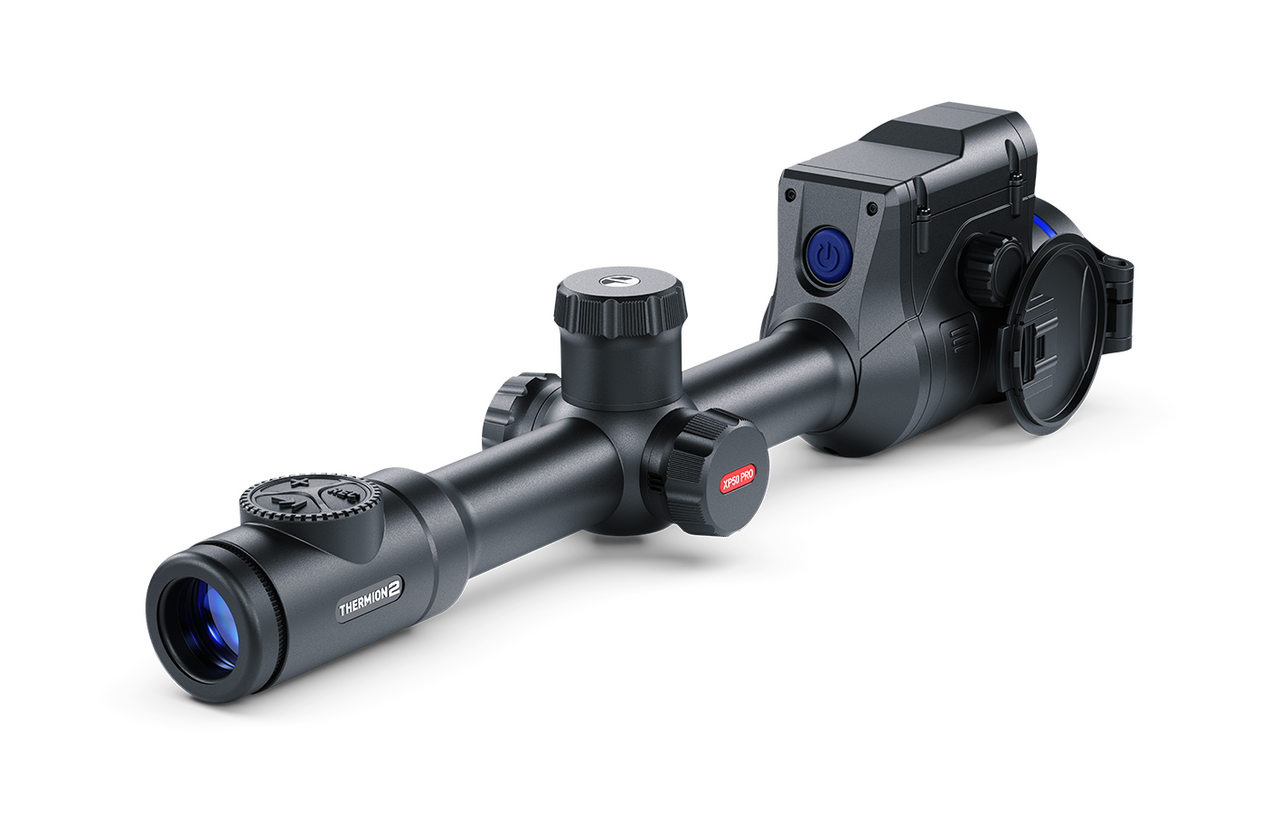

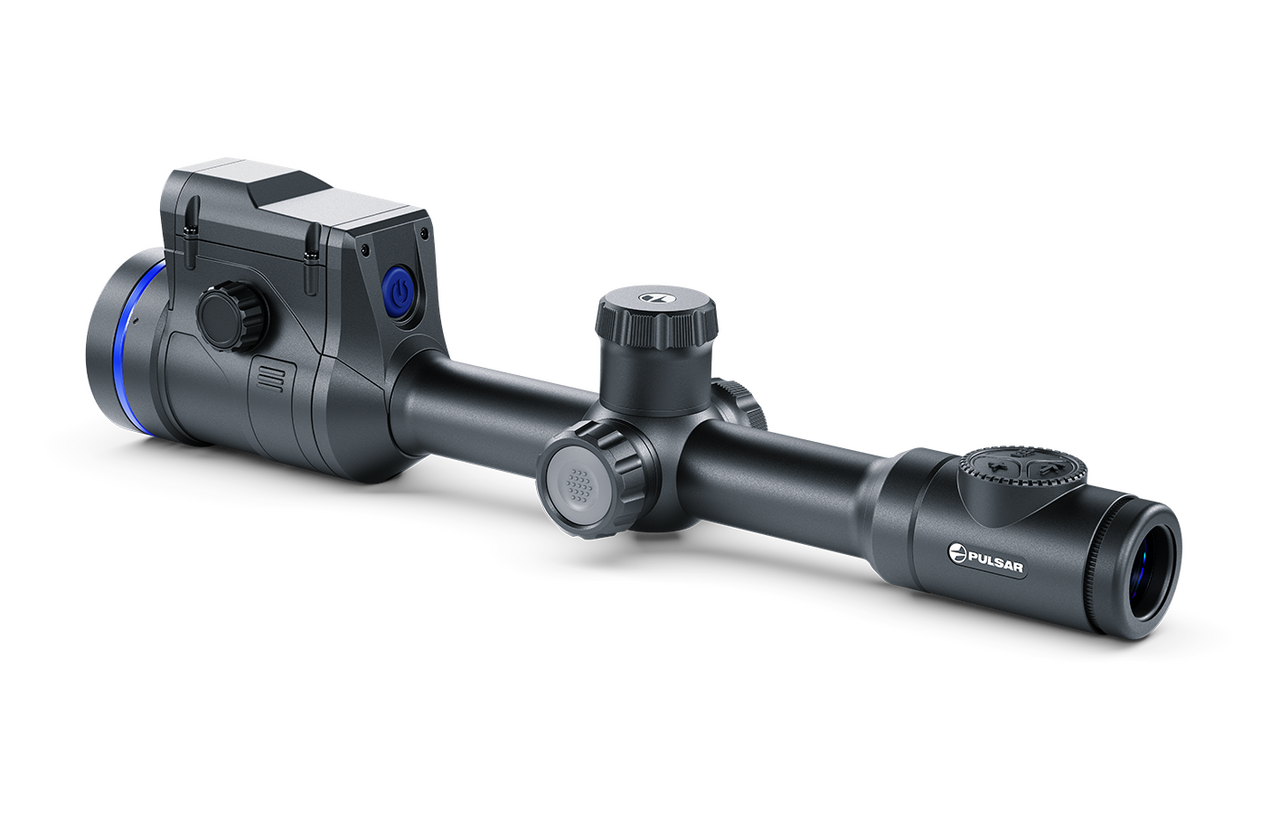

THERMION 2 LRF XQ50 Pro Thermal Rangefinding Riflescope by Pulsar
The first thermal imaging riflescope with classic design and built-in laser rangefinder. The laser rangefinder has been integrated seemlessly into the tube style thermal sight we've all come to expect from Pulsar. The Thermion 2 LRF is compact, the sender & receiver modules are combined into the space of a single optic. The maximum range of the LRF is 800 metres – this is the new normal for the Thermion 2 Pro, where precision visuals and precise measuring meet to come together for that next level hunting experience!
Proposed Uses (XQ50 Pro);
- Suitable for: Rifle mounting (30mm rings typically)
- Thermal Detection Range = up to 1800mtrs
- Thermal Identification Range for various sized targets;
- Small (Rabbit) = 150m
- Sml-Med (Fox) = 200m
- Medium (Pig) = 250m
- Med-Lge (Deer) = 350m
Key Features (XQ50 Pro);
- 384x288 thermal sensor (17um, NETD <25mK)
- 50mm objective lens (F1.0), 3.0x base magnification (7.5 Horiz. FoV)
- AMOLED display (1024x768),
- 800mtr Integrated Infrared Laser Rangefinder
- 1x APS2 removeable battery, Internal Li-ion battery (over 5hrs runtime)
- 16Gb onboard storage, media recording (w/Audio), WiFi connectivity (Stream Vision 2 App)
Thermion 2 LRF Specifications;
| Main | Thermion 2 LRF XG50 Pro | Thermion 2 LRF XP50 Pro | Thermion 2 LRF XQ50 Pro |
Sensor |
640x480 @ 12µm (NETD <25 mK) |
640x480 @ 17µm (NETD <25 mK) |
384x288 @ 17µm (NETD <25mK) |
Objective lens |
F50/1.0 | F50/1.0 | F50/1.0 |
Magnification, x |
3 – 20 (x8 digital) |
2 – 16 (x8 digital) |
3 - 12 (x4 digital) |
Field of view (HxV), degrees / m@100m |
? tba |
12.4x9.3 / 21.8x16.3 |
7.5 / 13.1 |
Detection range, m |
1800 |
1800 |
1800 |
Sensor |
|||
Type |
uncooled |
uncooled |
uncooled |
Resolution, pixels |
640x480 |
640x480 |
384x288 |
Pixel pitch, µm |
12 |
17 |
17 |
NETD, mK |
<25 |
<25 |
<25 |
Frame rate, Hz |
50 |
50 |
50 |
Optics |
|||
Objective lens |
F50/1.0 |
F50/1.0 |
F50/1.0 |
Magnification, x |
3 - 20 |
2 - 16 |
3 - 12 |
Field of view (HxV), degrees / m @ 100 m |
? tba |
12.4x9.3 / 21.8x16.3 |
7.5 / 13.1 |
Eye relief, mm |
? tba |
50 |
50 |
Display |
|||
Type |
? tba |
AMOLED HD |
AMOLED |
Resolution, pixels |
? tba |
1024x768 |
1024x768 |
Range Performance |
|||
Detection range, m |
1800 |
1800 |
1800 |
Laser Rangefinder |
|||
Safety Class for laser equipment according IEC 60825-1:2014 |
1 |
1 |
1 |
Wavelength, nm |
905 |
905 |
905 |
Max. measuring range, m |
800 |
800 |
800 |
Measurement Accuracy, m |
+/- 1 |
+/- 1 |
+/- 1 |
Reticle |
|||
Click value, H/V, mm at 100 m |
21 / 21 (on minimum magnification) |
21 / 21 (on minimum magnification) |
13 - 3x 6.5 - 6x 3.25 - 12x |
Click range, H/V, mm at 100 m |
4200 / 4200 |
4200 / 4200 |
2600 / 2600 |
Number of preloaded reticles |
10+ |
10+ |
10 |
Video Recorder |
|||
Video / photo resolution, pixel |
1024x768 |
1024x768 |
1024x768 |
Video / photo format |
.mp4 / .jpg |
.mp4 / .jpg |
.mp4 / .jpg |
Built-in memory, Gb |
16 |
16 |
16 |
Wi-Fi |
|||
Wireless Protocol |
Wi-Fi |
Wi-Fi |
Wi-Fi |
Wireless Standard |
IEEE 802.11 b/g/n/ac |
IEEE 802.11 b/g/n/ac |
IEEE 802.11 b/g/n/ac |
Frequency, GHz |
2.4 / 5 |
2.4 / 5 |
2.4 / 5 |
Bluetooth |
|||
Wireless Protocol |
BLE 4.2 |
BLE 4.2 |
- |
Wireless Standard |
IEEE 802.15.1 |
IEEE 802.15.1 |
- |
Frequency, GHz |
2.4 |
2.4 |
- |
Environmental Characteristics |
|||
Degree of protection, IP code (IEC60529) |
IPХ7 (waterproof) | IPХ7 (waterproof) | IPХ7 (waterproof) |
Operating temperature range, °C |
-25 – +50 |
-25 – +50 |
-25 – +50 |
Connections and Compatibilities |
|||
Max. recoil power on rifled weapon (Eo), Joules |
6000 |
6000 |
6000 |
Shock resistance on the smooth-bore rifles, caliber |
12 |
12 |
12 |
Mounting brackets on weapon |
Standard 30 mm rings |
Standard 30 mm rings |
Standard 30 mm rings |
Remote Control |
Pulsar BT (optional) |
Pulsar BT (optional) |
- |
Supported Appplication |
Stream Vision 2 |
Stream Vision 2 |
Stream Vision 2 |
Power Supply |
|||
Output voltage, V |
3.0 - 4.2 |
3.0 - 4.2 |
3.7v |
Battery type |
? tba |
Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal) |
Li-ion Battery Pack APS2 |
Capacity, mAh |
? tba |
2000 (external) + 4900 (internal) |
4900 |
Operating time on battery pack (at t=22°C), h * |
? tba |
10 |
10 |
External power supply, V |
USB type C (5V) |
USB type C (5V) |
5V, 9V (USB Type-C Power Delivery) |
Weight & Size |
|||
| Body Material | Aluminium alloy |
Aluminium alloy |
Aluminium alloy |
Dimensions mm |
? tba |
420x78.5x94.5 |
420x78.5x94.5 |
Weight kg |
? tba |
0.97 |
0.97 |
Warranty |
|||
Warranty on Device, years |
3 |
3 |
3 |
Warranty on Batteries, years |
1 |
1 |
1 |
Trade Data |
|||
SKU (Model #) |
76554 | 76551 | 76555 |
Optoelectronic Devices & Batteries Compatibility Chart
